Saab 9-3 (9440) 2008-2011 Turbocharger

Group 2 Engine, section 7105

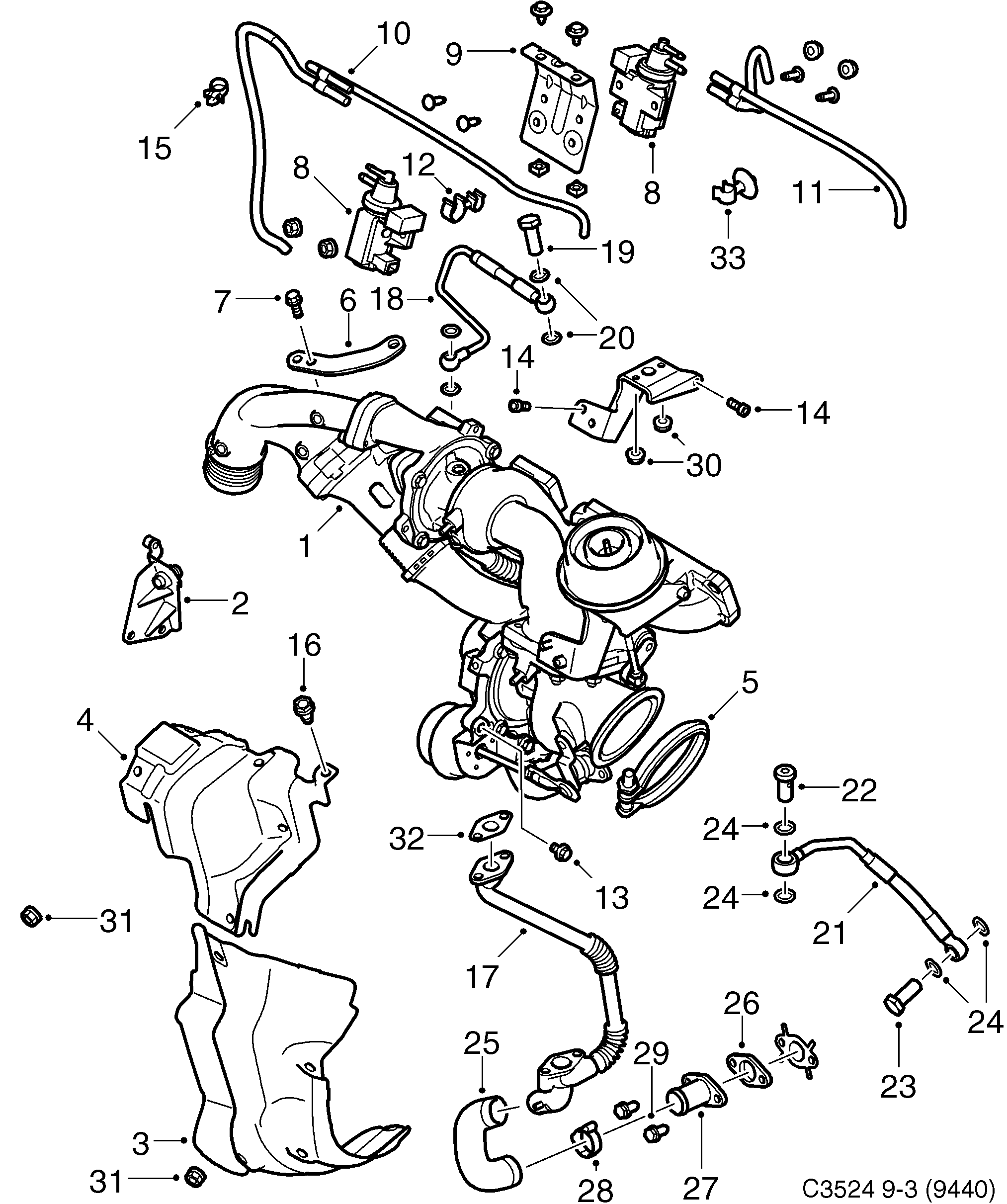

Saab 9-3 (9440) Turbocharger diagram

Pos	Article	Part No.
1	Exhaust manifold	93194991 (replaces 93166899)
1	Exhaust manifold	93194991
2	Bracket	93166900
2	Bracket	93167120
3	Guard plate	55210047
4	Heat shield	55212400
5	Pipe clip	55209165
6	Bracket	93192535
7	Screw	93177832
8	Vacuum sensor	55573732
9	Bracket	55571151 (replaces 55562958)
9	Bracket	55571151
10	Hose	55571681 (replaces 55562962)
10	Hose	55571681
11	Hose	55571681 (replaces 55562960)
12	Tie strap	7398977
13	Screw	92152294
14	Torx screw	93187889
15	Clamp	92152223
16	Screw	11900353
17	Pipe	55209428
18	Pipe	55212406
18	Pipe	55227758 (replaces 55218819)
18	Pipe	55227758
19	Screw	93191754
20	O-ring	93191753
21	Pipe	55212405
22	Screw	93191760
23	Screw	93191761
24	O-ring	93191759
25	Oil hose	93191756
26	Gasket	55196740
27	Connector	93191757
28	Hose clamp	93179209
29	Screw	93191758
30	Nut	11900428
31	Nut	11900451
32	Gasket	93167080
33	Clip	24445743
