Saab 9-3 (9440) 2005-2010 Turbocharger

Group 2 Engine, section 7100

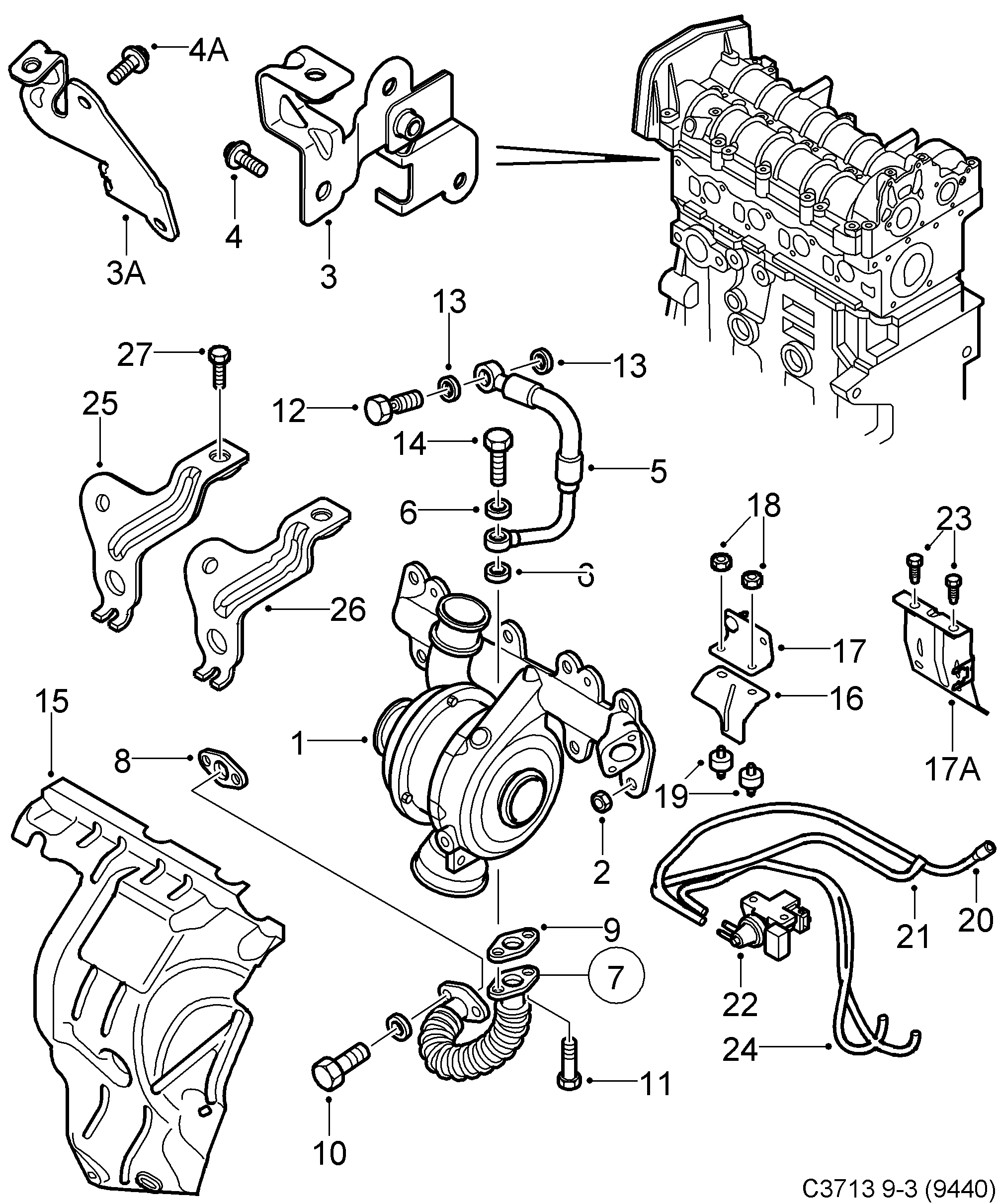

Saab 9-3 (9440) Turbocharger diagram

Pos	Article	Part No.
1	Turbocharger	93192073 (replaces 93184790)
1	Turbocharger	93192073
1	Turbocharger	55205483 (replaces 93184791)
1	Exhaust manifold	55205483 (replaces 55205356)
1	Exhaust manifold	55205483
2	Nut	93177333 (replaces 93181871)
2	Flange nut	93191408
3	Bracket	93181701
3A	Bracket	55197436
4	Screw	93179333
4A	Screw	93183675
5	Tube	93179305
5	Tube	93179213
6	O-ring	12855333
7	Tube	93191200 (replaces 93179306)
7	Return line	93191200
7	Tube	93179215
8	Gasket	93179216
9	Gasket	93179214
9	Gasket	55196740 (replaces 93191201)
9	Gasket	55196740
10	Screw	93179217
11	Screw	93178505
12	Screw	93179303
13	Gasket	93179304
14	Hollow screw	93196869
14	Screw	93183682
15	Heat shield	55182370
15	Heat shield	55182373
16	Shield	55558086
17	Bracket	55354768
17A	Bracket	55560138
18	Nut	11900428
19	Rubber spacer	9281374
20	Vaccum hose	55355013
20	Vaccum hose	55560227
21	Vaccum hose	55555629
21	Vaccum hose	55560228
22	Vacuum valve	55563532 (replaces 55354529)
22	Vacuum valve	55563532
23	Screw	92152294
24	Vaccum hose	55557479
25	Bracket	93183422
26	Bracket	93184628
27	Screw	93183425
