Saab 9-3 (9440) 2003-2004 Turbocharger

Group 2 Engine, section 7050

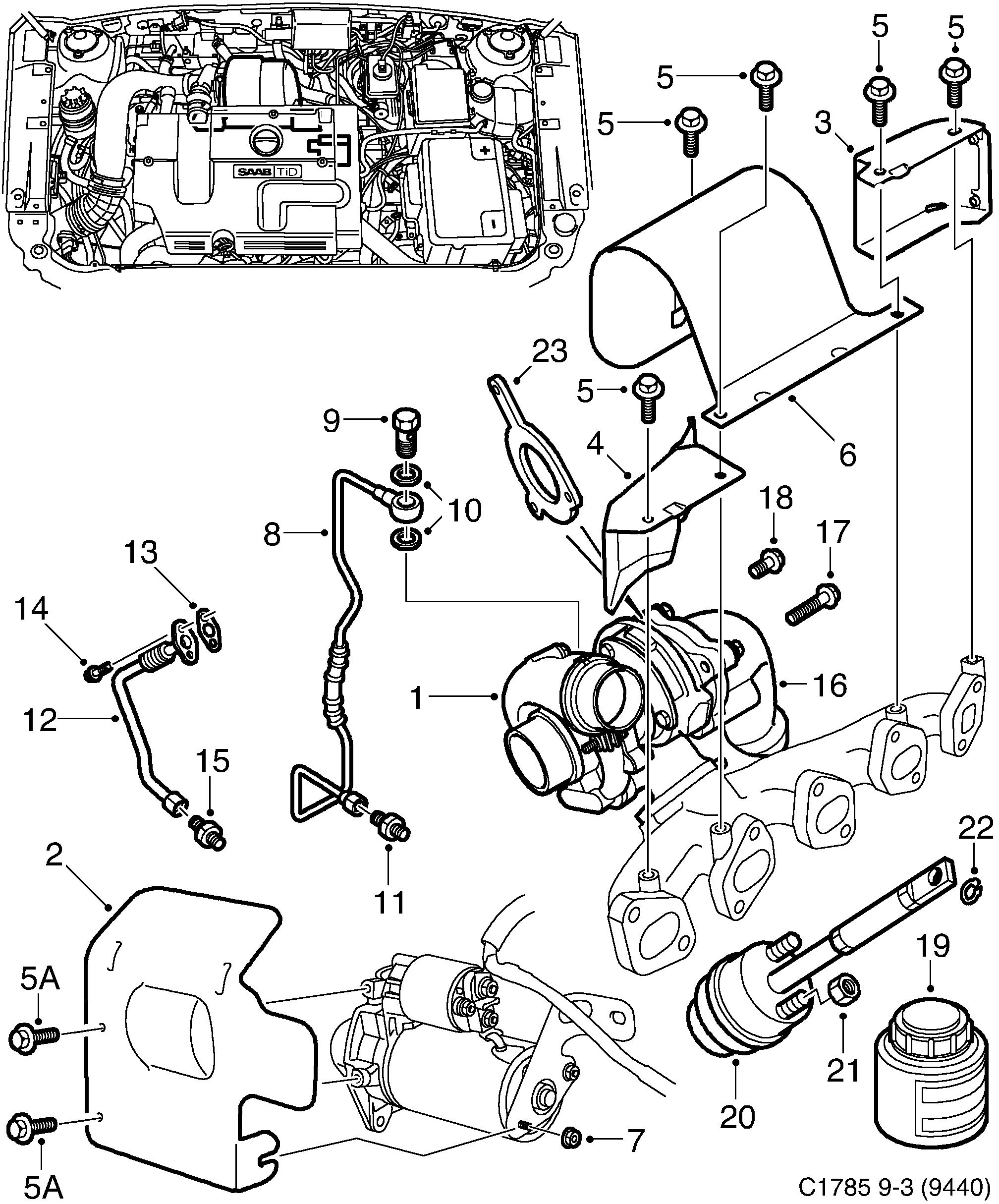

Saab 9-3 (9440) Turbocharger diagram

Pos	Article	Part No.
1	Turbocharger	24445062
2	Heat shield	90530232
3	Heat shield	24444259
4	Heat shield	24422981
5	Screw	11900321
6	Heat shield	55352686
7	Nut	11900451
8	Tube	9202544
9	Banjo screw	11092351
10	Seal	11056391
11	Nipple	24469868
12	Tube	90500930
13	Gasket	90467805
14	Screw	11093963
15	Nipple	90502912
16	Elbow pipe	9202449
17	Screw	11096001
18	Screw	11094892
19	Assembly compound	90513210
23	Gasket	9226145
