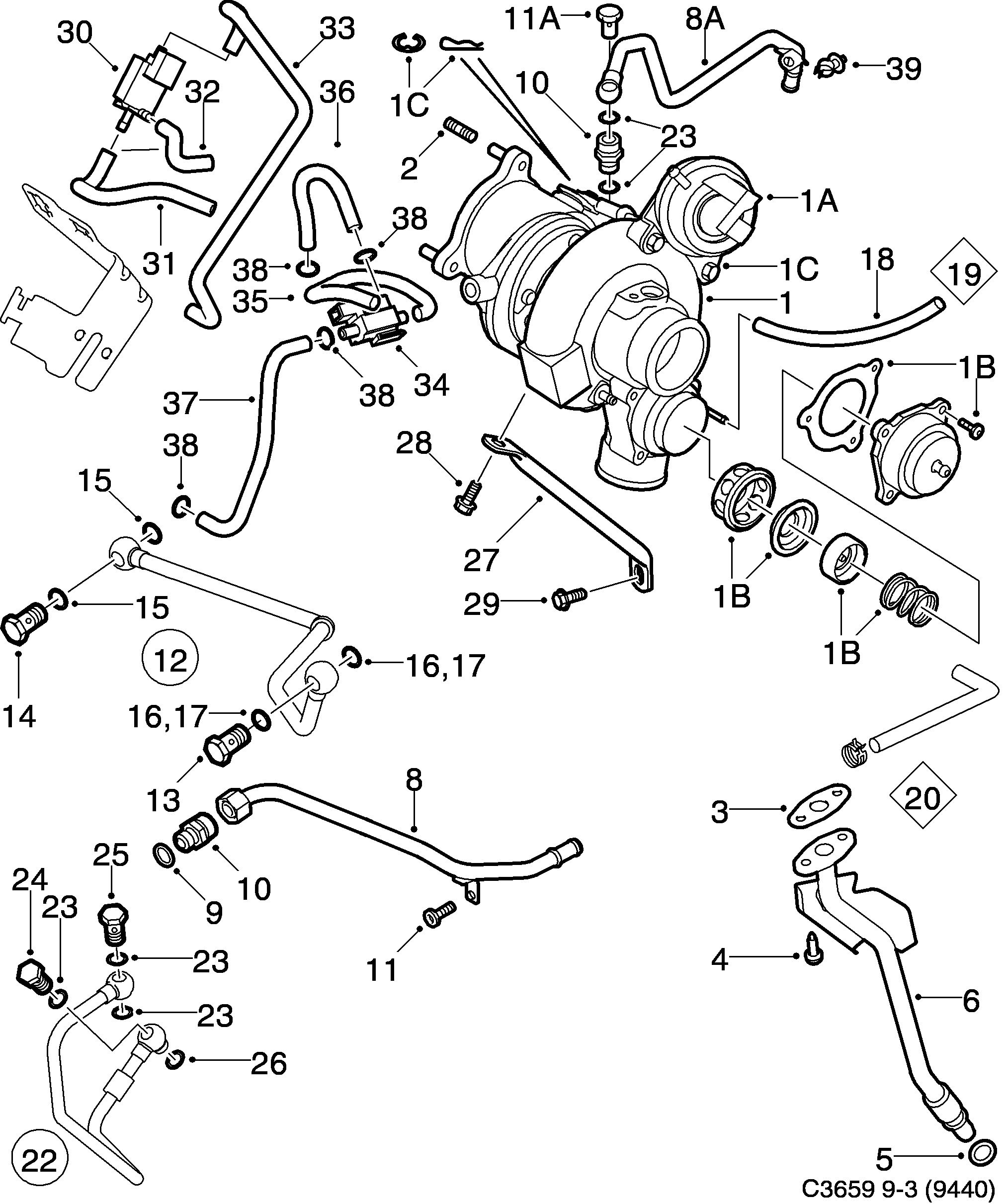

Group 2 Engine, section 7000
| Pos | Article | Part No. |
|---|---|---|
| 1 | Turbocharger | 12755106 |
| 1 | Turbocharger | 55564940 (replaces 55557611) |
| 1 | Turbocharger | 55564940 (replaces 55562671) |
| 1 | Turbocharger | 55564940 |
| 1 | Turbocharger | 55564941 (replaces 12788719) |
| 1 | Turbocharger | 55564941 (replaces 55562670) |
| 1 | Turbocharger | 55565831 |
| 1A | Vaccum box | 55558272 |
| 1A | Vaccum box | 55562647 |
| 1A | Vaccum box | 55558625 |
| 1C | Screw | 55556251 |
| 1C | Retaining ring | 55558372 |
| 1C | Pin | 55557797 |
| 1B | Charge air bypass valve | 55558271 |
| 1B | Charge air bypass valve | 55558627 |
| 1B | Screw | 55558628 |
| 2 | Stud | 90490326 |
| 3 | Gasket | 55563093 (replaces 90490305) |
| 3 | Seal | 55563093 |
| 4 | Screw | 11085673 |
| 5 | O-ring | 12755110 |
| 6 | Pipe | 55353230 |
| 6 | Tube | 12787669 |
| 6 | Return line | 55565833 |
| 8 | Tube | 12787769 |
| 8A | Tube | 55571064 (replaces 12787770) |
| 8A | Pipe | 55571064 (replaces 55567831) |
| 8A | Pipe | 55571064 |
| 9 | Gasket | 92150435 |
| 9 | Gasket | 92150434 |
| 10 | Nipple | 12787977 |
| 10 | Nipple | 55562644 (replaces 12792084) |
| 10 | Connector | 55562644 |
| 11A | Banjo screw | 92150976 |
| 12 | Tube | 12787766 |
| 12 | Tube | 12787767 |
| 12 | Hose | 55571063 |
| 13 | Banjo screw | 12797714 |
| 18 | Vaccum hose | 12787959 |
| 22 | Tube | 12755109 |
| 22 | Tube | 55561198 (replaces 12787668) |
| 22 | Pipe | 55561198 |
| 22 | Pipe | 55571062 (replaces 55565832) |
| 22 | Pipe | 55571062 |
| 22 | Pipe | 55571106 |
| 25 | Banjo screw | 12797713 |
| 26 | Gasket | 12791963 |
| 27 | Brace | 12796193 |
| 28 | Screw | 55353200 |
| 29 | Screw | 55565774 (replaces 92150025) |
| 29 | Hexagon screw | 55565774 (replaces 55562703) |
| 29 | Hexagon screw | 55565774 |
| 30 | Charge air bypass control valve | 55354158 |
| 31 | Vaccum hose | 12789106 |
| 32 | Vaccum hose | 12789107 |
| 33 | Vaccum hose | 12789108 |
| 34 | Boost pressure control valve | 12787706 |
| 35 | Vaccum hose | 12786377 |
| 35 | Vacuum hose | 55570746 |
| 36 | Vaccum hose | 12786378 |
| 36 | Vacuum hose | 55570747 |
| 37 | Vaccum hose | 12786379 |
| 38 | Hose clamp | 92151160 |
| 39 | Clamp | 12791918 |
