Saab 9-3 (9440) 2006-2011 Coolant pump Thermostat

Group 2 Engine, section 5810

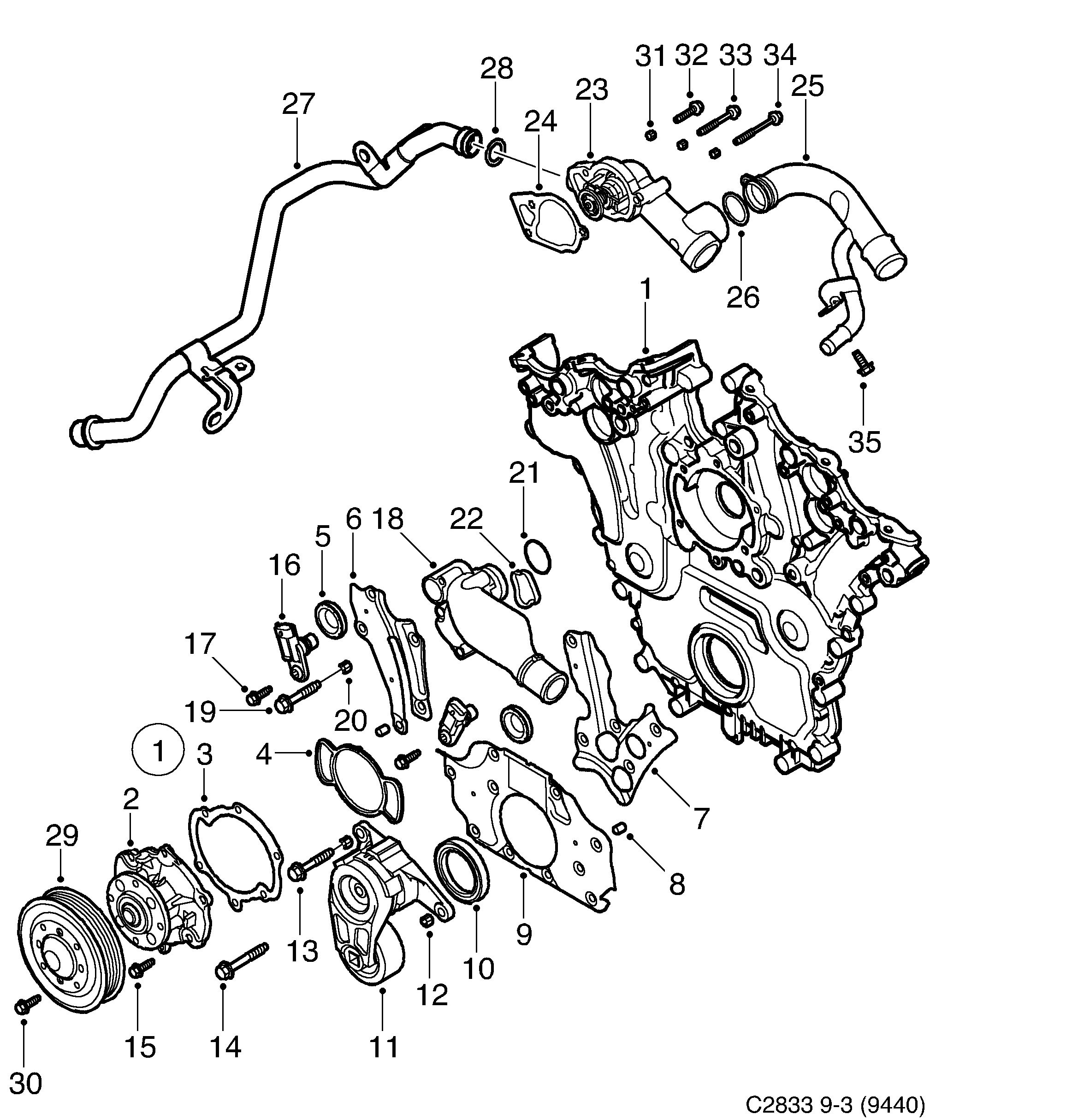

Saab 9-3 (9440) Coolant pump Thermostat diagram

Pos	Article	Part No.
1	Water pump	12588982
1	Water pump	12609964
2	Water pump	92149009 (replaces 12566029)
2	Water pump	92149009
3	Gasket	12576326
4	Seal	12593045
5	O-ring	12593717
8	Pin	22531637
10	Sealing ring	12608750 (replaces 12592355)
10	Sealing ring	12608750
12	Sleeve	11588327
13	Hexagon screw	11588728
14	Hexagon screw	11519173
15	Hexagon screw	11588713
16	Camshaft position sensor	12592250
16	Camshaft position sensor	12608424
17	Hexagon screw	11519967
18	Reservoir	12574373
19	Hexagon screw	11519972
20	Spacer piece	12570372
21	O-ring	12584040
22	Gasket	12566429
23	Thermostat housing	12597258
24	Gasket	12592527
25	Pipe	12603276
26	O-ring	12588317
27	Pipe	55556504
27	Pipe	55564995
28	O-ring	12588318
29	Pulley	12574518
29	Pulley	12611587
30	Hexagon screw	11588940
31	Sleeve	11518792
32	Hexagon screw	11519968
34	Hexagon screw	11519973
35	Hexagon screw	11900162
