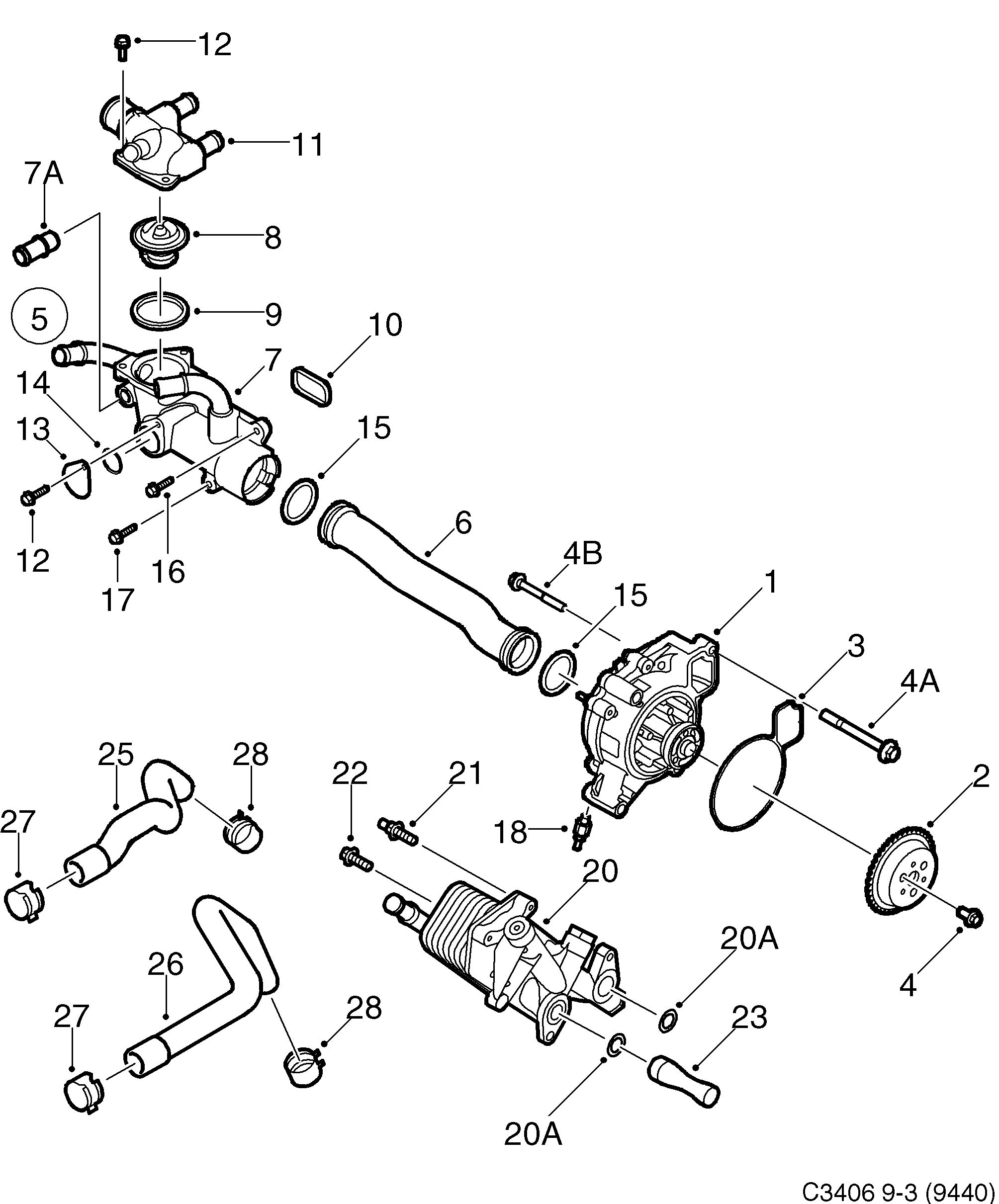

Group 2 Engine, section 5800
| Pos | Article | Part No. |
|---|---|---|
| 1 | Coolant pump | 12630084 (replaces 24467301) |
| 1 | Coolant pump | 12630084 (replaces 93178602) |
| 1 | Coolant pump | 12630084 (replaces 93181118) |
| 1 | Water pump | 12630084 (replaces 93195308) |
| 1 | Water pump | 12630084 (replaces 12621284) |
| 1 | Water pump | 12630084 |
| 2 | Chain gear | 90537298 |
| 3 | Gasket | 24439799 |
| 4 | Screw | 11518061 |
| Plug | 12586573 | |
| 4A | Screw | 11518057 |
| 4B | Screw | 11518052 |
| 5 | Thermostat housing | 12790477 |
| 6 | Tube | 90490640 |
| 7 | Thermostat housing | 12791053 |
| 7A | Connector | 12755186 |
| 8 | Thermostat | 12622410 (replaces 90537811) |
| 8 | Thermostat | 12622410 (replaces 12615097) |
| 9 | Gasket | 3522676 |
| 10 | Gasket | 90537471 |
| 11 | Cover | 12790474 |
| 12 | Screw | 11518062 |
| 13 | Sealing washer | 12789738 |
| 14 | O-ring | 12789739 |
| 15 | O-ring | 90537379 |
| 16 | Screw | 11518063 |
| 17 | Screw | 11900171 |
| 18 | Drain valve | 12797058 |
| 20 | Oil cooler | 12786259 |
| 20 | Oil cooler | 55565996 |
| 20A | O-ring kit | 93181988 |
| 20A | Seal | 12601372 |
| 20A | Seal | 12601371 |
| 21 | Stud | 12794256 |
| 22 | Screw | 11518049 |
| 22 | Screw | 11588724 |
| Sleeve | 11588327 | |
| 23 | Tube | 12790785 |
| 25 | Hose | 12786237 |
| 25 | Hose | 55565997 |
| 26 | Hose | 12786238 |
| 26 | Hose | 55565998 |
| 27 | Hose clamp | 90573605 |
| 27 | Hose clamp | 90572594 |
| 28 | Hose clamp | 90572592 (replaces 90537612) |
| 28 | Hose clamp | 90572592 |
| 28 | Hose clamp | 13283239 |
