Saab 9-3 (9440) 2005-2010 Charge air cooler

Group 2 Engine, section 5575

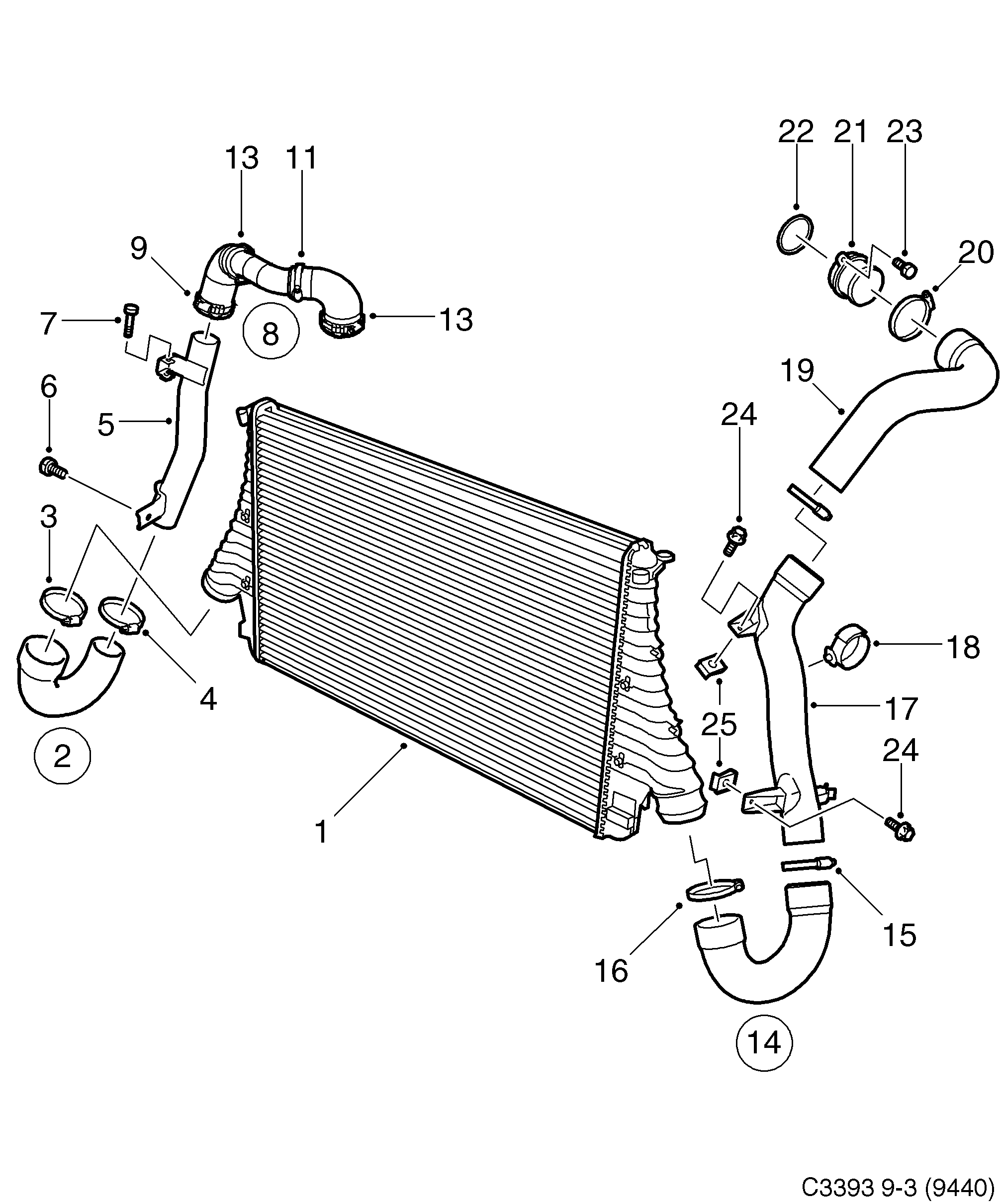

Saab 9-3 (9440) Charge air cooler diagram

Pos	Article	Part No.
1	Charge air cooler	12765753 (replaces 12804713)
1	Charge air cooler	12765753
2	Air duct	55350918
3	Hose clamp	24468103
4	Hose clamp	24442227
5	Charge air pipe	55350920
6	Screw	11096971
6	Hexagon screw	11095091
7	Screw	11093953 (replaces 11096941)
7	Screw	11093953
8	Air duct	13289474 (replaces 55354826)
9	Hose clamp	24442225
14	Air duct	13289462 (replaces 55350922)
14	Air duct	13289462
14	Air duct	13289461 (replaces 55350914)
14	Air duct	13289461
17	Charge air pipe	55350916
18	Clip	9202590
19	Charge air hose	55350923
19	Charge air hose	55350915
21	Gasket	55351945
22	Connector	12780867
24	Screw	11093961
25	Clip	12773488
