Saab 9-3 (9440) 2003-2004 Charge air cooler

Group 2 Engine, section 5550

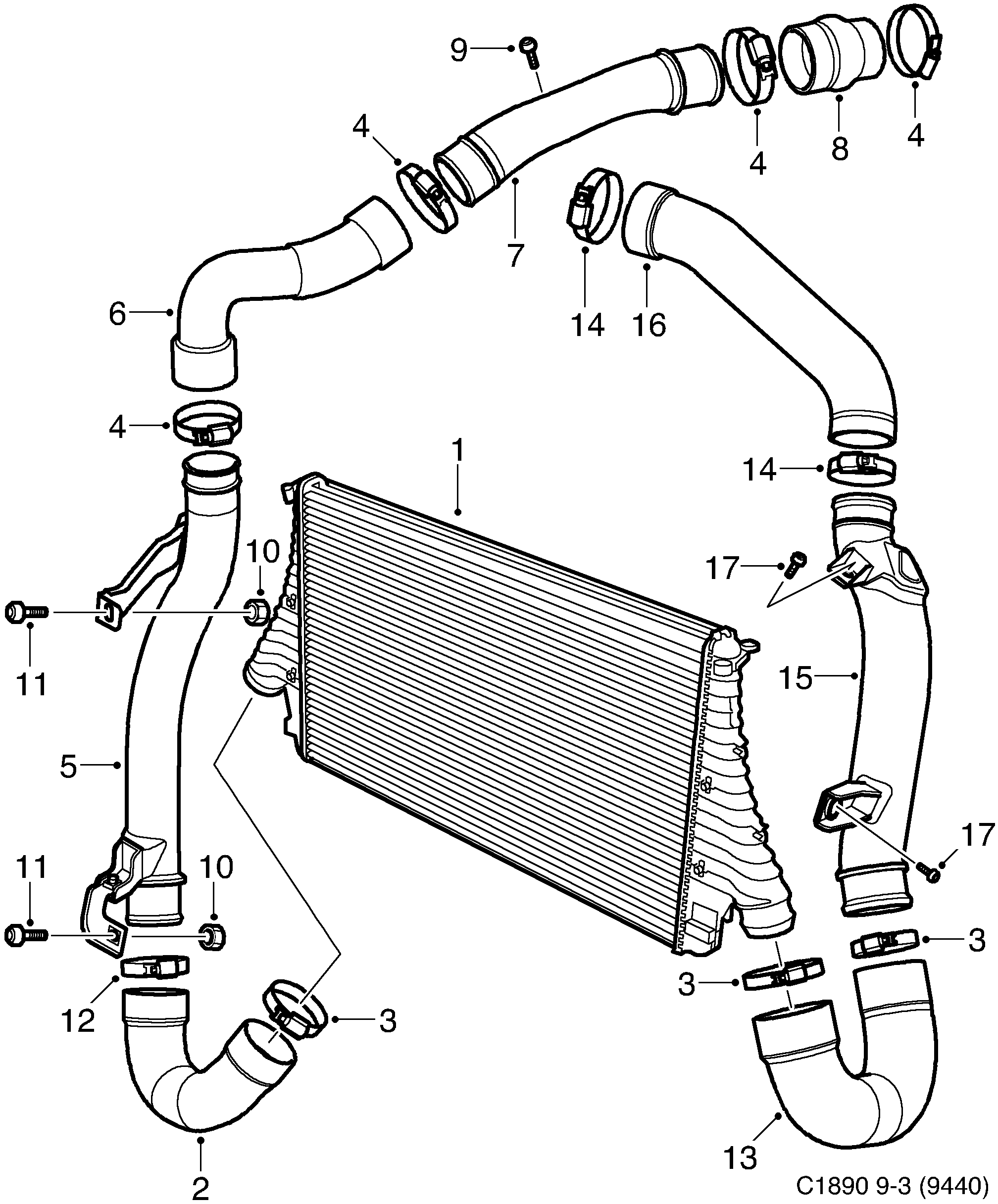

Saab 9-3 (9440) Charge air cooler diagram

Pos	Article	Part No.
1	Charge air cooler	12788019
2	Charge air hose	12786812
3	Hose clamp	92153079 (replaces 92150222)
3	Hose clamp	12801889
4	Hose clamp	92150219
4	Hose clamp	12801891
5	Charge air pipe	12790044
6	Charge air hose	12790043
7	Charge air pipe	12790042
8	Charge air hose	12790041
9	Screw	11900353
10	Clip nut	11091312
11	Screw	92151885 (replaces 92150084)
12	Hose clamp	92150220
13	Charge air hose	12787694
14	Hose clamp	92153077 (replaces 92150221)
14	Hose clamp	12801888
15	Charge air pipe	12786821
16	Charge air hose	12786818
17	Screw	11900354
