Saab 9-3 (9440) 2003-2011 Charge air cooler

Group 2 Engine, section 5500

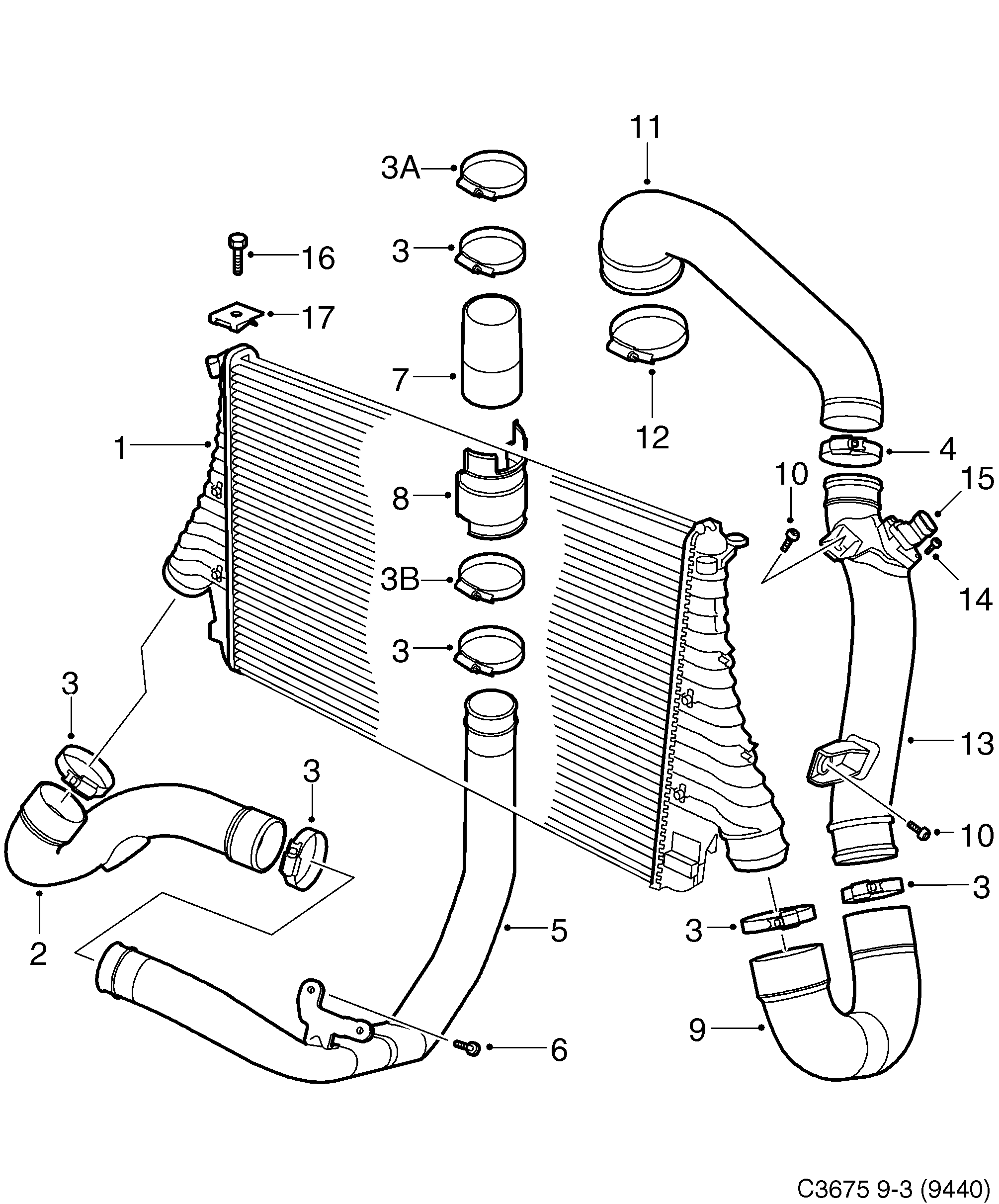

Saab 9-3 (9440) Charge air cooler diagram

Pos	Article	Part No.
1	Charge air cooler	12788019
2	Charge air hose	12787693
2	Charge air hose	12786560
3	Hose clamp	92153079 (replaces 92150222)
3	Hose clamp	92153079
3	Clamp	12846867
3B	Clamp	12846868
4	Hose clamp	92153077 (replaces 92150221)
4	Hose clamp	92153077
5	Charge air pipe	12786559
	Gasket	12790036
5	Pipe	12779611
	Seal	12779614
6	Screw	11900364
7	Charge air hose	12786558
7	Hose	12779612
8	Heat shield	12791690
8	Heat shield	12779613
9	Charge air hose	12787694
9	Charge air hose	12786813
10	Screw	11900354
10	Screw	11093961
11	Charge air hose	12786816
12	Hose clamp	92153080 (replaces 92150223)
12	Clamp	92153080
13	Charge air pipe	12786819
14	Screw	11900492
15	Sensor	55563267 (replaces 12788793)
15	Sensor	55563267
16	Screw	9202831
17	Clip	12773488 (replaces 90495359)
