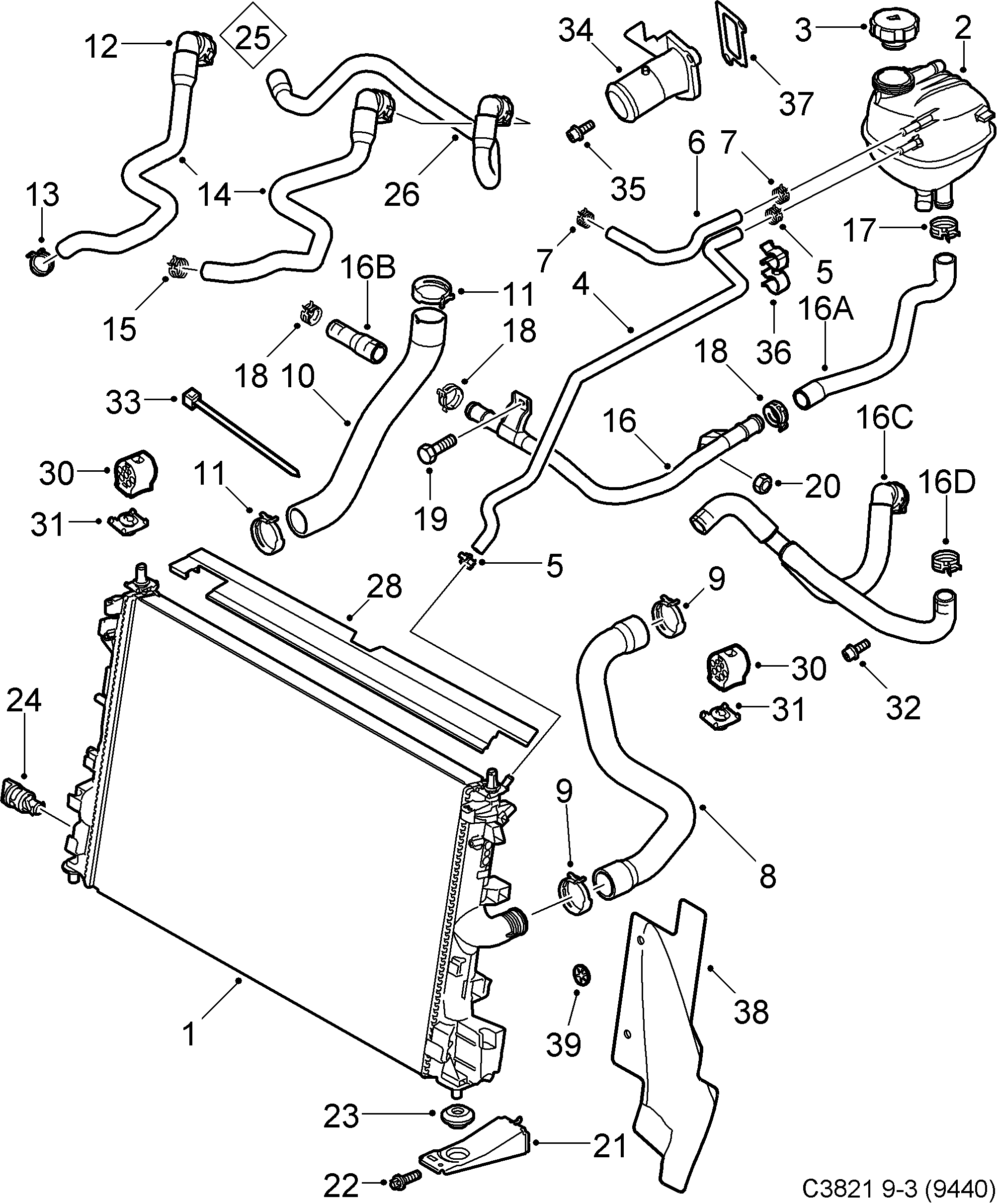

Group 2 Engine, section 5120
| Pos | Article | Part No. |
|---|---|---|
| 1 | Radiator | 13196477 (replaces 24418345) |
| 1 | Radiator | 13196477 |
| 1 | Radiator | 12775541 |
| 1 | Radiator | 13156387 |
| 1 | Radiator | 13200486 |
| 1 | Radiator | 12775540 |
| 2 | Expansion tank | 12791287 |
| 3 | Cover | 9202799 |
| 4 | Radiator hose | 12788427 |
| 4 | Hose | 12779399 |
| 5 | Hose clamp | 90530642 |
| 5 | Hose clamp | 90572589 |
| 6 | Radiator hose | 13119225 |
| 6 | Hose | 12783167 (replaces 12770427) |
| 6 | Hose | 12783167 |
| 6 | Hose | 12841985 |
| 8 | Radiator hose | 13119222 |
| 8 | Radiator hose | 12770428 |
| 9 | Hose clamp | 13136147 |
| 10 | Radiator hose | 13119223 |
| 10 | Radiator hose | 12770429 |
| 12 | Hose | 13119230 |
| 13 | Hose clamp | 90572594 |
| 13 | Hose clamp | 90572590 |
| 14 | Hose | 13119226 |
| 14 | Hose | 12804237 |
| 14 | Hose | 12770424 |
| 14 | Hose | 12770425 |
| 16 | Tube | 13156877 |
| 16A | Hose | 13119224 |
| 16B | Hose | 13156876 |
| 16C | Pipe | 12770426 |
| 19 | Screw | 11093961 |
| 19 | Screw | 11900354 |
| 20 | Nut | 11900439 |
| 21 | Radiator bracket | 12789871 |
| 22 | Screw | 11900025 |
| 23 | Rubber bushing | 90091989 |
| 24 | Draining plug | 24411010 |
| 26 | Hose | 12804236 |
| 28 | Seal | 13151295 |
| 28 | Seal | 13196476 |
| 28 | Seal | 12800612 |
| 30 | Spring | 13186475 |
| 32 | Hollow screw | 55213862 |
| 33 | Tie strap | 11900512 |
| 34 | Connector | 93192524 |
| 35 | Hexagon screw | 93177832 (replaces 93191410) |
| 36 | Clamp | 12756974 |
| 37 | Gasket | 55212676 |
| 38 | Air deflector | 12761748 |
| 39 | Clip | 92151914 |
