Saab 9-3 (9440) 2003-2004 Radiator Expansion tank

Group 2 Engine, section 5100

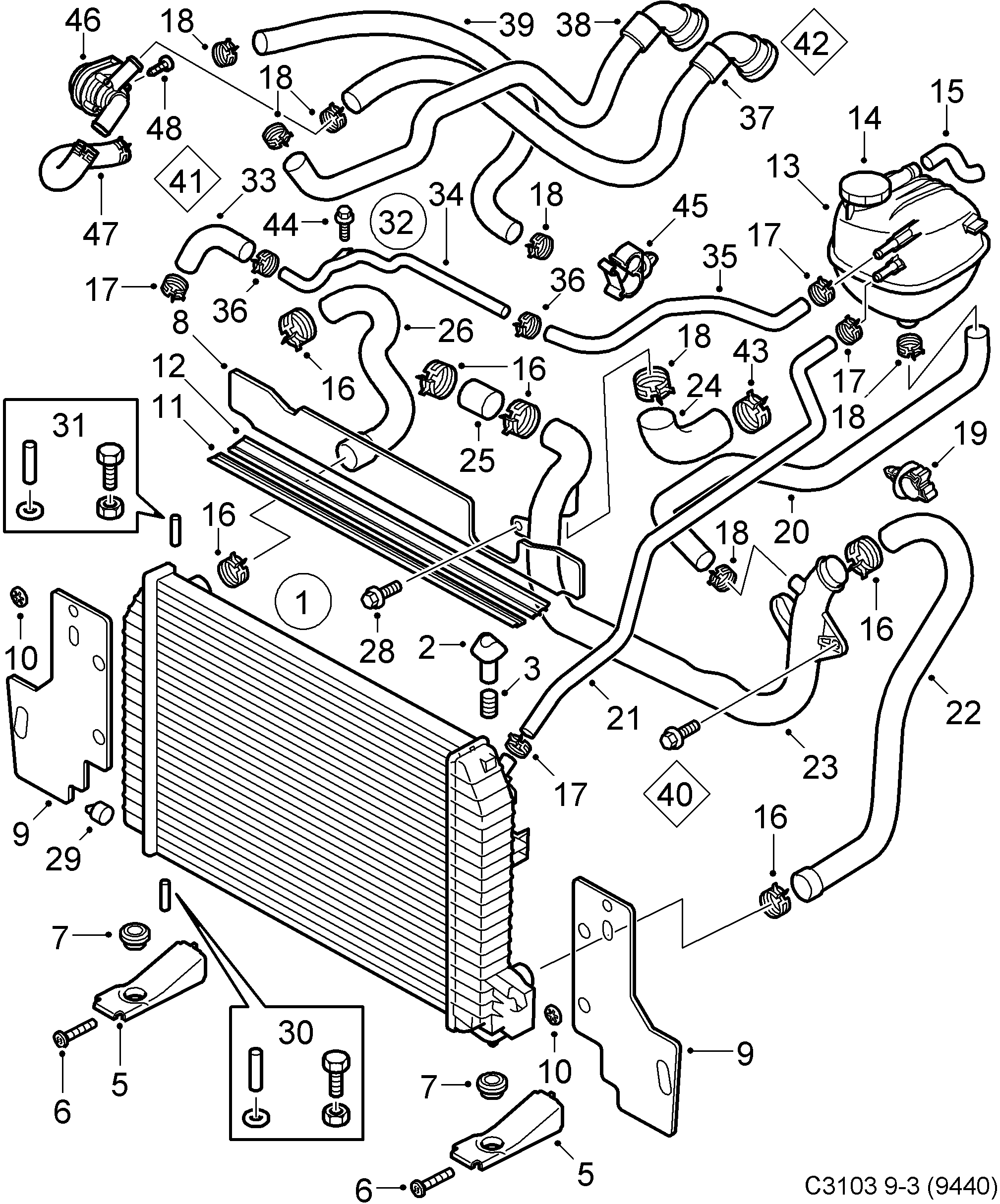

Saab 9-3 (9440) Radiator Expansion tank diagram

Pos	Article	Part No.
1	Radiator	24418341
1	Radiator	24418338
1	Radiator	24418342
2	Rubber bushing	13186475 (replaces 9202609)
3	Spring	13186475 (replaces 9202606)
5	Radiator bracket	12789871
6	Screw	11900025
7	Rubber bushing	90091989
8	Air shield	12765898 (replaces 12791684)
9	Air shield	12791685
10	Clip	92151914
11	Seal	12791687
12	Seal	12797880
12	Seal	12794172
13	Expansion tank	9202200
14	Cover	9202799
15	Plastic pipe	12791427
16	Hose clamp	13136147
17	Hose clamp	90530642 (replaces 90572964)
18	Hose clamp	90572594
19	Clip	90571650
20	Radiator hose	12798283
21	Radiator hose	12803746
	Radiator hose	12788427
	Wear protection	12803341
22	Radiator hose	12798282
23	Plastic pipe	12798281
24	Radiator hose	9202148
25	Radiator hose	9202143
26	Radiator hose	9202112
29	Draining plug	24411010
30	Pin	9202591
31	Pin	9202592
32	Radiator hose	12791914
33	Radiator hose	12799134
34	Tube	12799135
35	Radiator hose	12799136
36	Hose clamp	90530642
37	Hose	12790037
37	Radiator hose	12790038
37	Hose	12800911
37	Hose	12792591
38	Hose	12790045
38	Hose	12790772
39	Hose	12791916
40	Screw	92150040
43	Hose clamp	90572968
44	Screw	11900353
45	Clip	24424961
46	Circulation pump	24422797
47	Radiator hose	24436240
48	Screw	11097792
