Saab 9-3 (9440) 2004-2009 Radiator Expansion tank

Group 2 Engine, section 5050

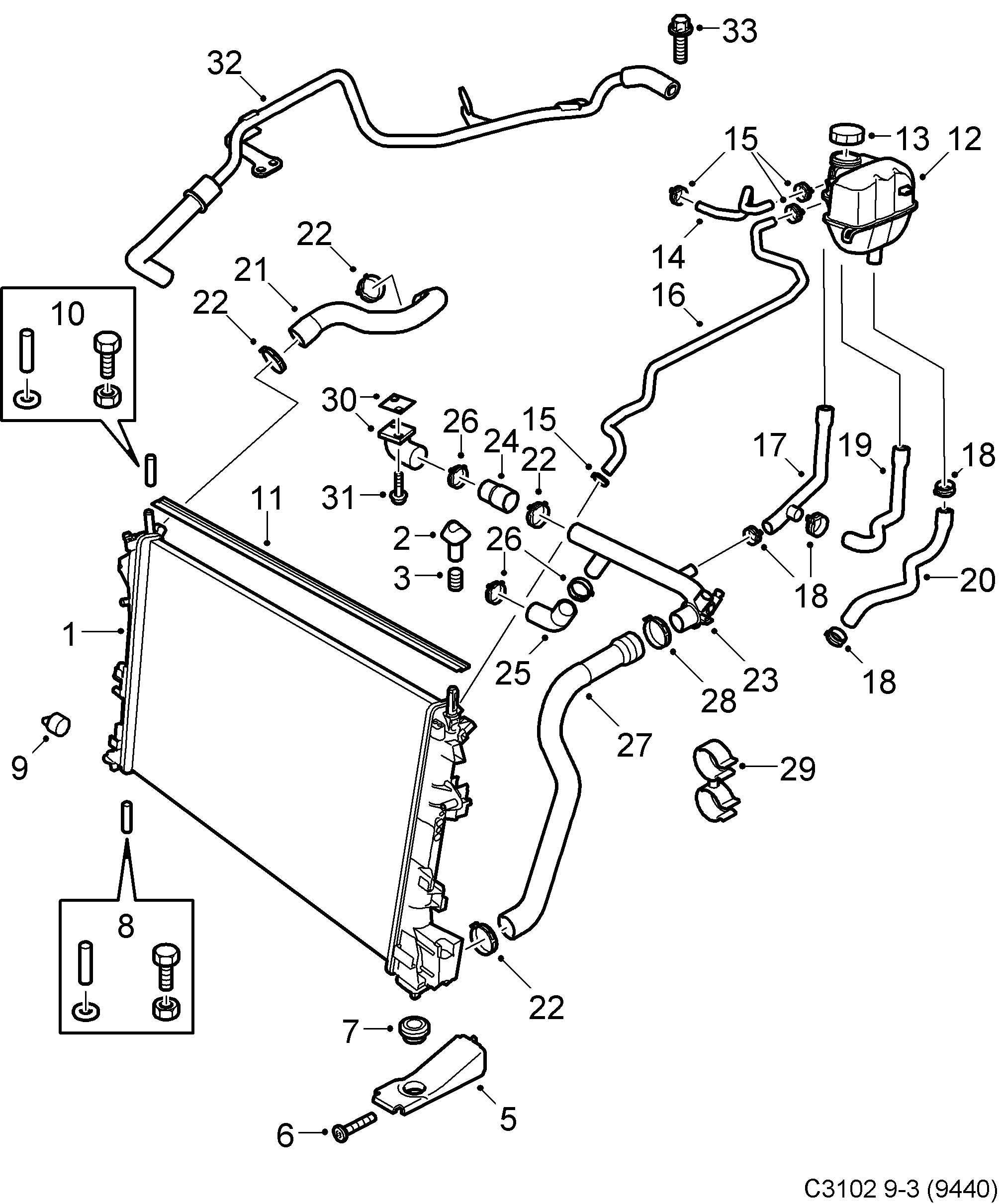

Saab 9-3 (9440) Radiator Expansion tank diagram

Pos	Article	Part No.
1	Radiator	24418338
2	Rubber bushing	13186475 (replaces 9202609)
3	Spring	13186475 (replaces 9202606)
5	Radiator bracket	12789871
6	Screw	11900025
7	Rubber bushing	90091989
8	Pin	9202591
9	Draining plug	24411010
10	Pin	9202592
11	Seal	9202610
12	Expansion tank	9202100
13	Cover	9202799
14	Radiator hose	9202144
15	Hose clamp	90530642
16	Radiator hose	12803281
17	Hose	9202145
18	Hose clamp	90572594
19	Hose	9202123
20	Radiator hose	9202589
21	Radiator hose	9202122
22	Hose clamp	13136147
23	Plastic pipe	9202151
24	Radiator hose	9202793
25	Radiator hose	9202792
26	Hose clamp	90572596
27	Radiator hose	9202126
28	Hose clamp	90572598
29	Clip	9129320
30	Nipple	90536286
31	Screw	11094931
32	Hose	9158744
33	Screw	11093971
