Saab 9-3 (9440) 2006-2010 Radiator Expansion tank

Group 2 Engine, section 5010

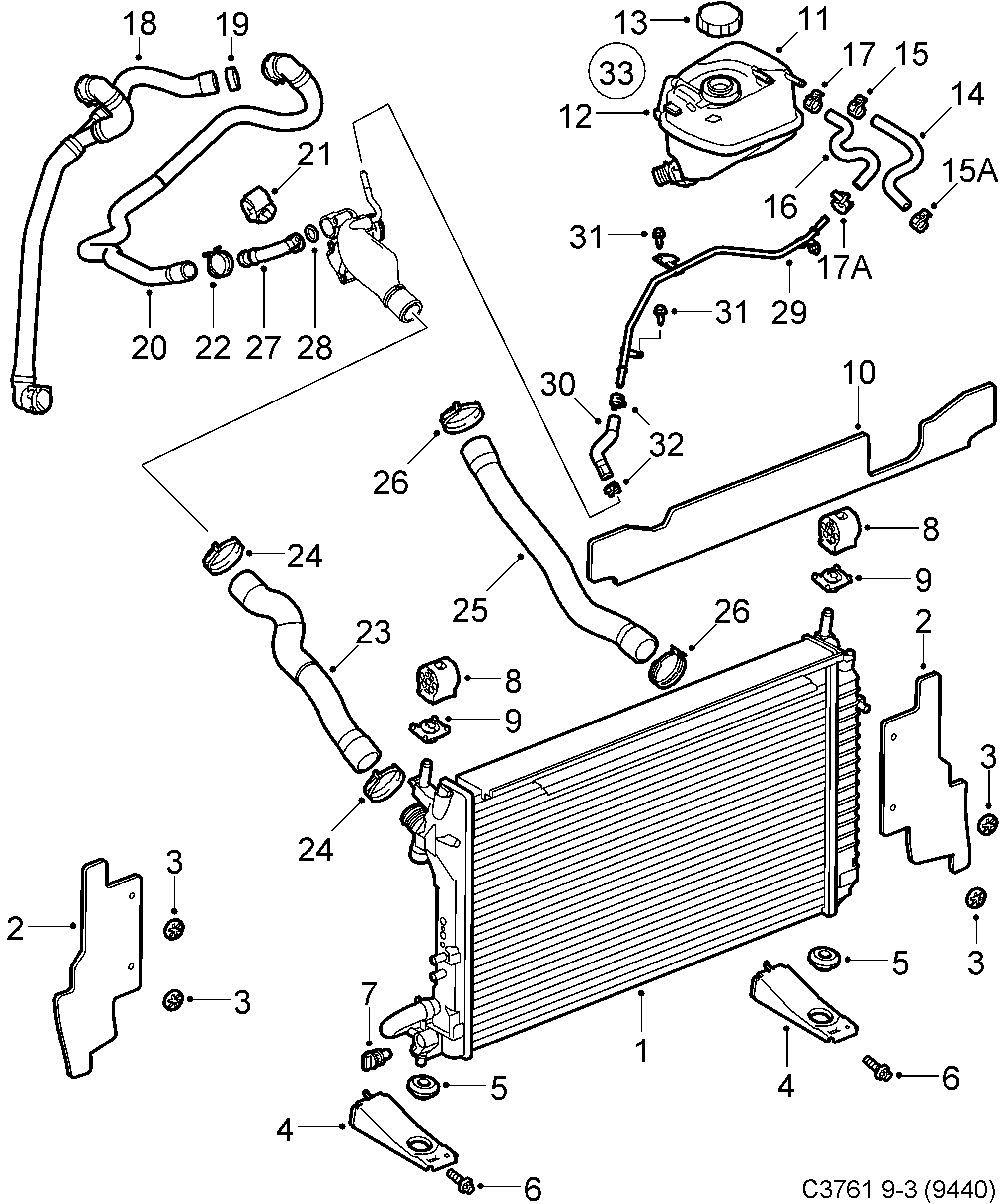

Saab 9-3 (9440) Radiator Expansion tank diagram

Pos	Article	Part No.
1	Radiator	12805057
1	Radiator	12805055
2	Air deflector	12761748
3	Clip	92151914
4	Radiator bracket	12789871
5	Rubber bushing	90091989
6	Screw	11900025
7	Draining plug	24411010
8	Spring	13186475
10	Seal	12800612
11	Expansion tank	12759330
11	Expansion tank	12842086
12	Hose	12805062
13	Cover	9202799
14	Hose	12842086 (replaces 12804553)
14	Hose kit	12842086 (replaces 93194927)
14	Hose	12842477
15	Hose clamp	90572589
15	Hose clamp	12822259
16	Hose	12842086 (replaces 12805654)
16	Hose	12842478
18	Hose	12804554
18	Hose	12780089
19	Hose clamp	90572594
20	Hose	12793423
21	Clip	13137556 (replaces 92150195)
22	Hose clamp	90572592
23	Hose	12792041
24	Hose clamp	13136147
25	Hose	12792042
27	Pipe	55559727
28	O-ring	12588318
29	Pipe	55556596
30	Hose	55556597
31	Hexagon screw	11900162
32	Hose clamp	90530642
33	Expansion tank	93197033
