Saab 9-3 (9440) 2003-2011 Radiator Expansion tank

Group 2 Engine, section 5000

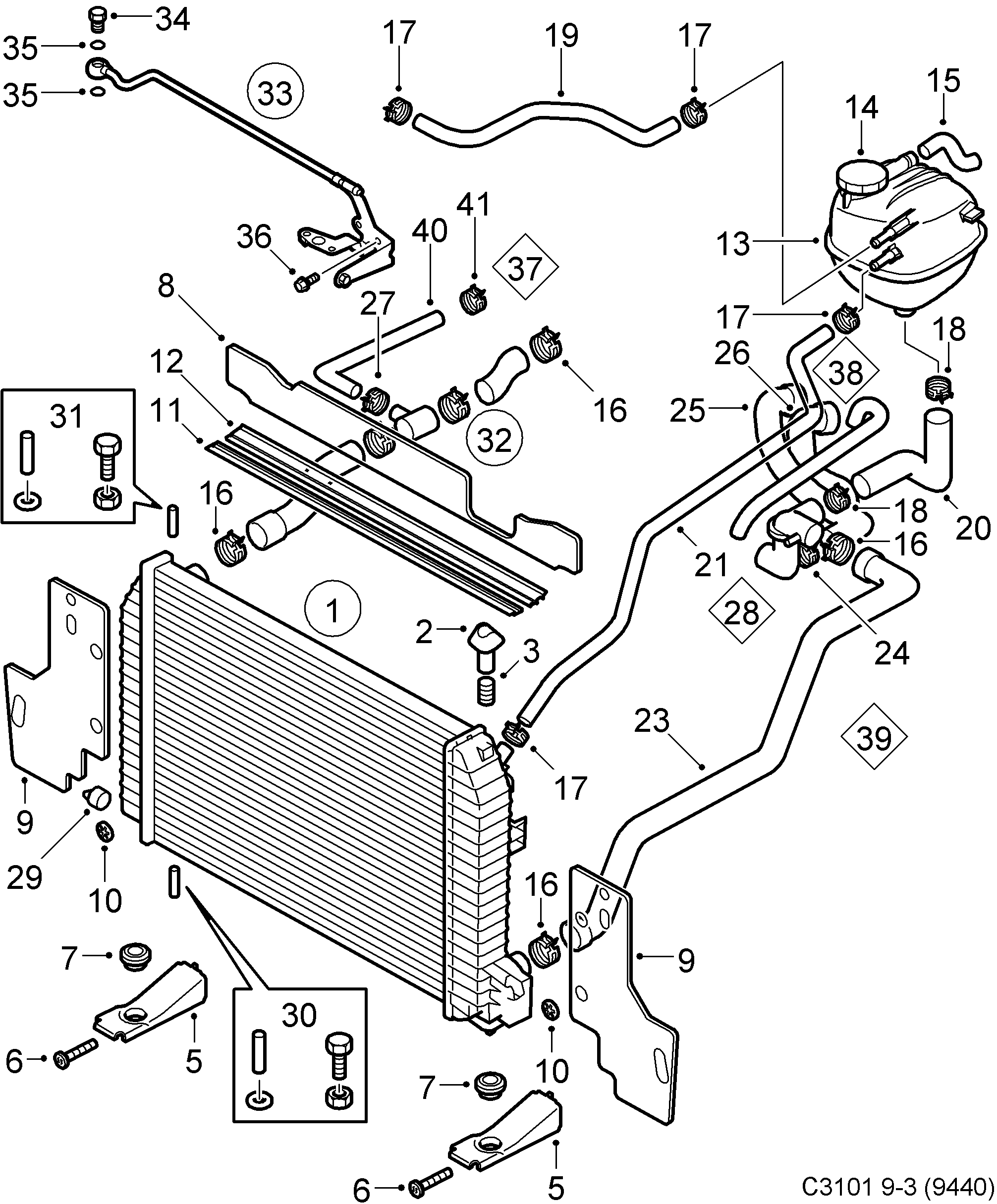

Saab 9-3 (9440) Radiator Expansion tank diagram

Pos	Article	Part No.
1	Radiator	24418341
1	Radiator	24418338
1	Radiator	24418342
2	Rubber bushing	13186475 (replaces 9202609)
3	Spring	13186475 (replaces 9202606)
5	Radiator bracket	12789871
6	Screw	11900025
7	Rubber bushing	90091989
8	Air shield	12765898 (replaces 12791684)
8	Air guide	12765898
9	Air shield	12791685
10	Clip	92151914
11	Seal	12791687
12	Seal	12797880
12	Seal	12794172
13	Expansion tank	9202200
14	Cover	9202799
15	Plastic pipe	12791427
16	Hose clamp	13136147
17	Hose clamp	90530642
17	Hose clamp	90572589
18	Hose clamp	90572594
19	Radiator hose	12787736
20	Radiator hose	12799198
21	Radiator hose	12803746
	Radiator hose	12788427
	Wear protection	12803341
23	Radiator hose	12780088 (replaces 12785038)
23	Hose	12780088
	Tie strap	11900513
24	Hose clamp	90572592
25	Hose	12784539 (replaces 12798535)
25	Hose	12784539
26	Hose	12798534
27	Hose clamp	90572967
29	Draining plug	24411010
30	Pin	9202591
31	Pin	9202592
32	Radiator hose	12787608
33	Air vent pipe	12787095
33	Air vent pipe	55556977
34	Banjo screw	12797711
35	Gasket	92150433
35	Gasket	55564532
36	Screw	11085673
40	Hose	12787815
41	Hose clamp	55352664
