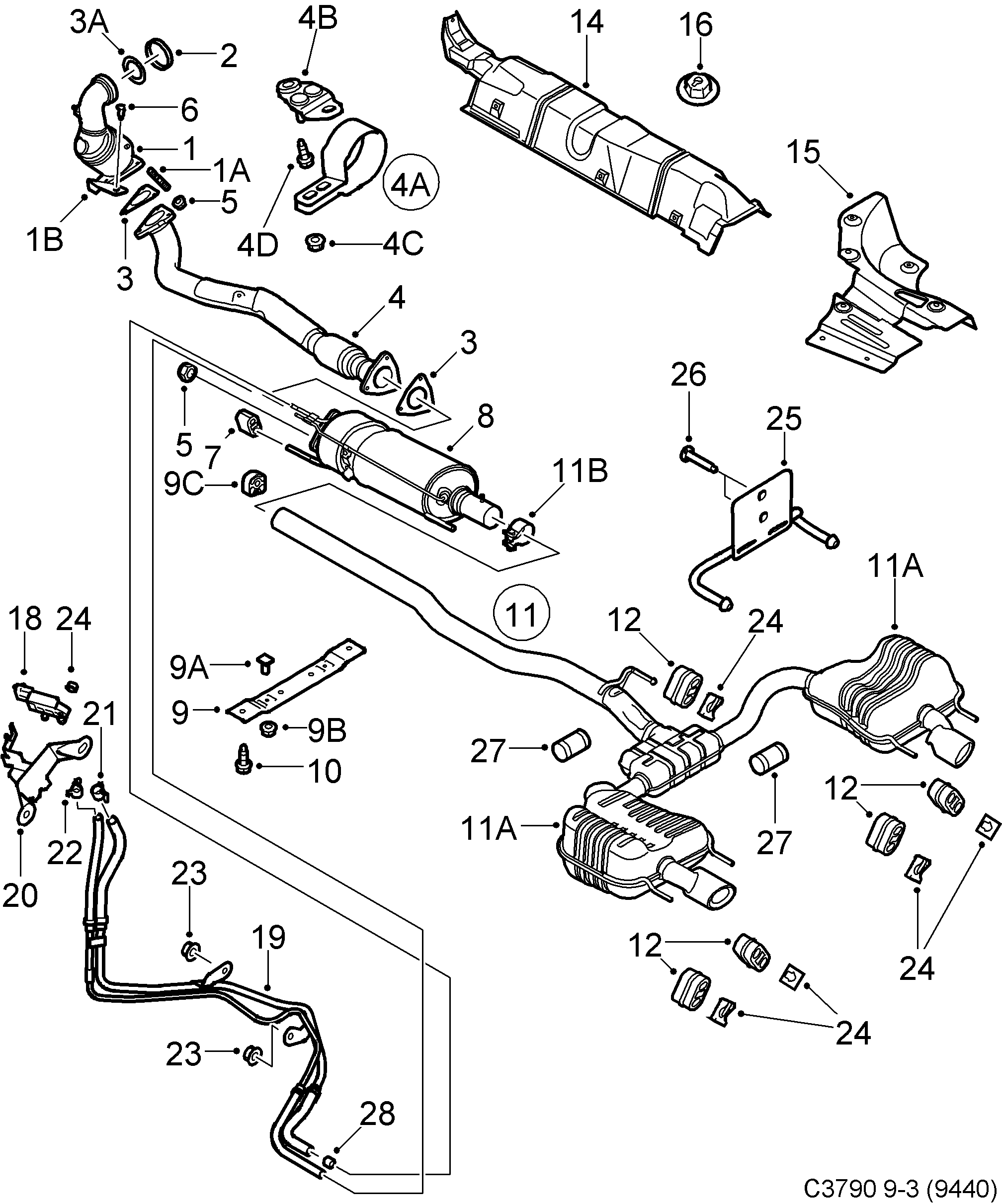

Group 2 Engine, section 4780
| Pos | Article | Part No. |
|---|---|---|
| 1 | Three way catalytic converter | 55210866 |
| 1A | Stud | 11098631 |
| 1B | Bracket | 55210867 |
| 2 | Pipe clip | 55209165 |
| 3 | Gasket | 55187592 |
| 3A | Gasket | 55207801 |
| 4 | Exhaust pipe | 55185819 |
| 4A | Bracket | 55556679 |
| 4B | Mounting bracket | 55556341 |
| 4C | Nut | 11094436 |
| 4D | Screw | 11073353 |
| 5 | Nut | 11900429 |
| 6 | Flange screw | 11900375 |
| 7 | Rubber mounting | 55559084 |
| 8 | Three way catalytic converter | 55563183 |
| 9 | Bracket | 55189199 |
| 9A | Screw | 55354918 |
| 9B | Nut | 11900439 |
| 9C | Rubber damper | 55187602 |
| 10 | Screw | 11900365 |
| 11 | Muffler | 12780289 |
| 11A | Muffler | 12780290 |
| 11A | Muffler | 12780291 |
| 11B | Exhaust pipe clamp | 12793502 |
| 11 | Muffler | 12772202 |
| 11A | Muffler | 12765496 |
| 11A | Muffler | 12765497 |
| 11 | Muffler | 12770417 |
| 11A | Muffler | 12765494 |
| 11A | Muffler | 12765495 |
| 12 | Rubber mounting | 90466668 |
| 14 | Heat shield | 12782089 |
| 15 | Heat shield | 12785068 |
| 16 | Nut | 55563636 (replaces 92152033) |
| 16 | Hexagon nut | 55563636 |
| 18 | Charge Air Absolute Pressure Sensor | 93187247 |
| 19 | Pipe | 55564236 |
| 19 | Pipe | 55564237 |
| 20 | Bracket | 55354775 |
| 20 | Bracket | 55354774 |
| 21 | Hose clamp | 55353931 |
| 24 | Nut | 92153044 |
| 28 | Hose clamp | 55564198 (replaces 55353932) |
