Saab 9-3 (9440) 2005-2010 Exhaust system

Group 2 Engine, section 4775

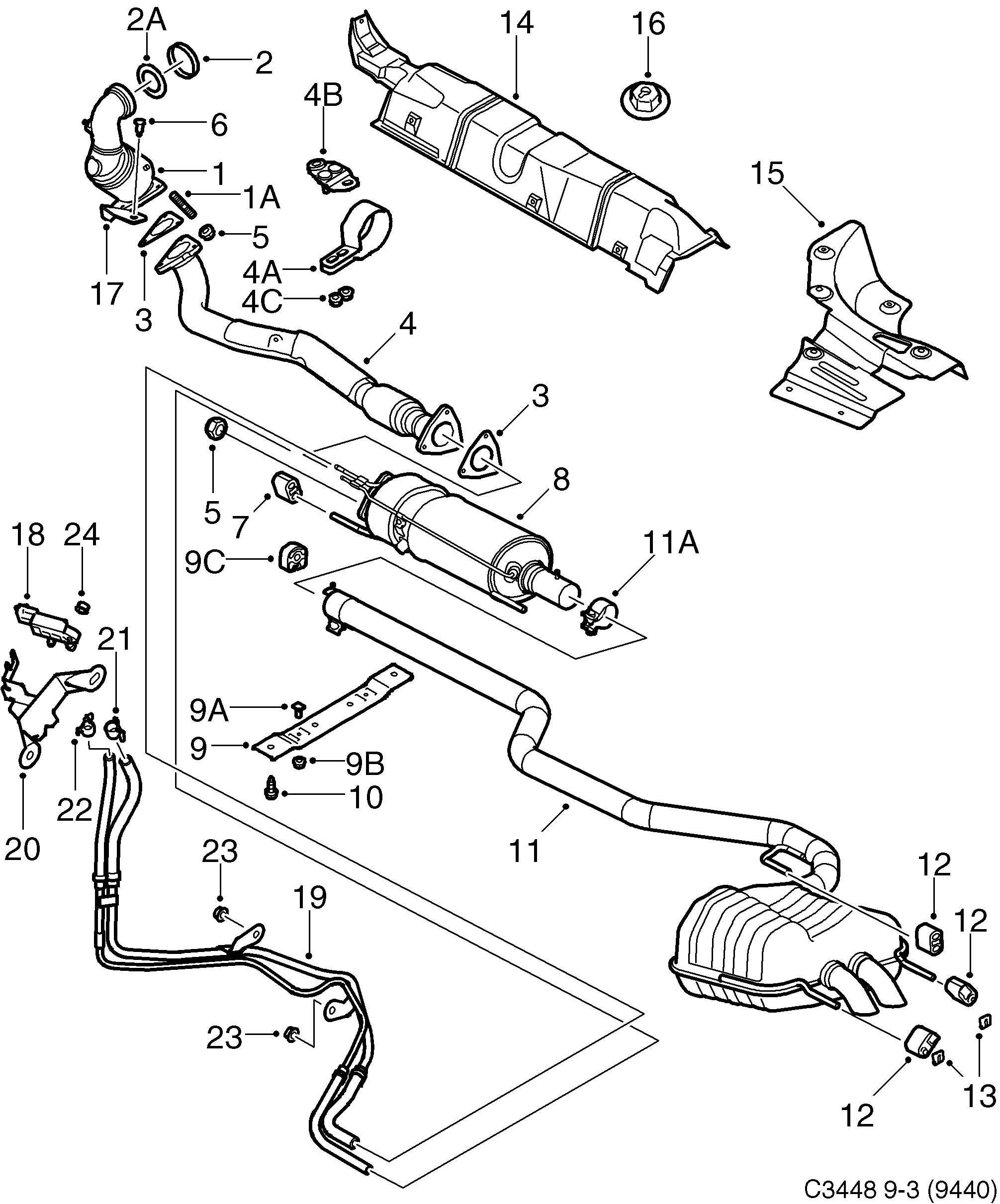

Saab 9-3 (9440) Exhaust system diagram
PosArticlePart No.
1Three way catalytic converter55187600
1Three way catalytic converter55559629
1Three way catalytic converter55564445
1Three way catalytic converter55187620
1AStud11098631
2Pipe clip55566094
2AGasket55187584
3Gasket55187592
4Exhaust pipe55185819
4ABracket55556679
4BMounting bracket55556341
4CNut11094436
5Nut11900429
6Flange screw11900375
7Rubber mounting55187596
7Rubber mounting55559084
8Particle filter55561054 (replaces 55187619)
8Three way catalytic converter55561054
8Three way catalytic converter55563183 (replaces 55563184)
8Three way catalytic converter55563183
8Three way catalytic converter55564448
9Bracket55189199
9AScrew55354918
9BNut11900439
9CRubber damper55187602
10Screw11900365
11Muffler12765683 (replaces 12803032)
11Muffler12765683
11Muffler12765685 (replaces 12759301)
11Muffler12765685
11AClamp13205242
12Rubber mounting90466668
13Clip92152112
14Heat shield12782089 (replaces 12802586)
14Heat shield12782089
15Heat shield12785068
16Nut55563636 (replaces 92152033)
17Brace55189180
Hexagon nut11900440
18Diff. pressure sensor93185556
18Charge Air Absolute Pressure Sensor93187247
19Tube55183665
19Pipe55564236
19Tube55183666
19Pipe55564237
20Bracket55354775
20Bracket55354774
21Hose clamp55353931
22Hose clamp55564197 (replaces 55353933)
22Hose clamp55564197
23Hexagon nut55563636
24Nut92153044
