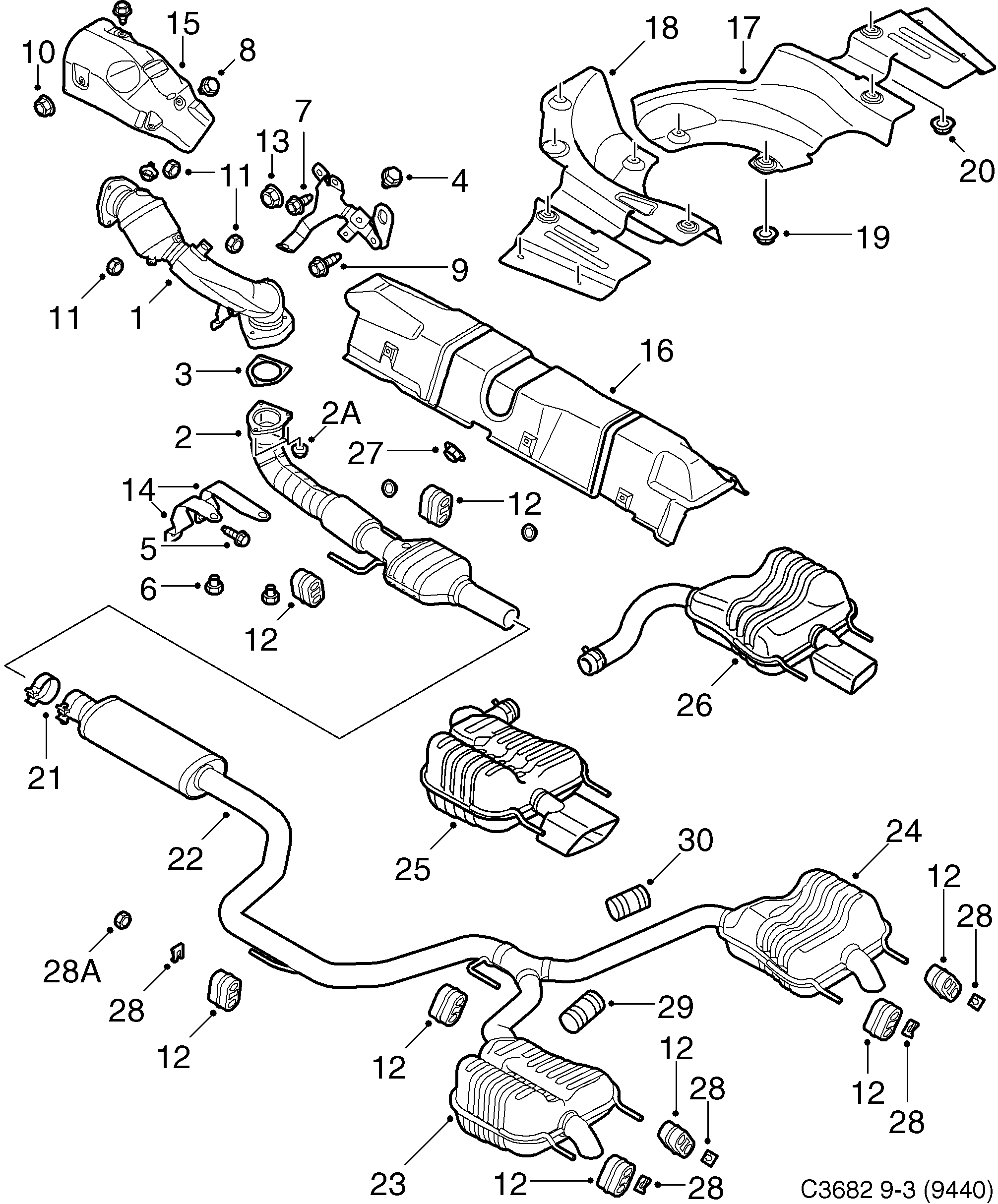

Group 2 Engine, section 4710
| Pos | Article | Part No. |
|---|---|---|
| 1 | Three way catalytic converter | 12792819 |
| 1 | Three way catalytic converter | 55563591 |
| 1 | Three way catalytic converter | 55565665 |
| 2 | Three way catalytic converter | 12792821 |
| 2 | Three way catalytic converter | 55563592 |
| 2 | Three way catalytic converter | 12778166 |
| 2A | Nut | 11900429 |
| 3 | Gasket | 12788864 |
| 3 | Gasket | 12757508 |
| 5 | Screw | 11900365 |
| 8 | Screw | 11900321 |
| 10 | Nut | 11900445 |
| 11 | Nut | 92152032 |
| 12 | Rubber mounting | 90466668 |
| 12 | Damping element | 12841935 |
| 13 | Nut | 11514597 |
| 14 | Bracket | 12759780 |
| 15 | Heat shield | 12805548 |
| 16 | Heat shield | 12782089 (replaces 12802586) |
| 16 | Heat shield | 12782089 |
| 17 | Heat shield | 12791417 |
| 17 | Heat shield | 12783368 |
| 18 | Heat shield | 12785068 |
| 18 | Heat shield | 12783367 |
| 19 | Hexagon nut | 55563636 |
| 20 | Plastic nut | 90482479 |
| 21 | Clamp | 12763106 |
| 22 | Muffler | 12765881 |
| 22 | Muffler | 12765498 |
| 22 | Muffler | 12783872 |
| 22 | Exhaust pipe | 12784422 |
| 23 | Muffler | 12765496 |
| 23 | Muffler | 12765494 |
| 23 | Muffler | 12765492 |
| 23 | Muffler | 12783875 |
| 23 | Muffler | 12783877 |
| 24 | Muffler | 12765497 |
| 24 | Muffler | 12765495 |
| 24 | Muffler | 12765493 |
| 24 | Muffler | 12783876 |
| 24 | Muffler | 12783878 |
| 25 | Muffler | 12843776 |
| 25 | Muffler | 12784419 |
| 26 | Muffler | 12843775 |
| 26 | Muffler | 12784418 |
| 27 | Nut | 55563636 (replaces 92152033) |
| 28 | Clip | 92152112 |
| 28A | Nut | 11900428 |
| 29 | Exhaust pipe clamp | 12793502 |
| 30 | Clamp | 12765561 |
