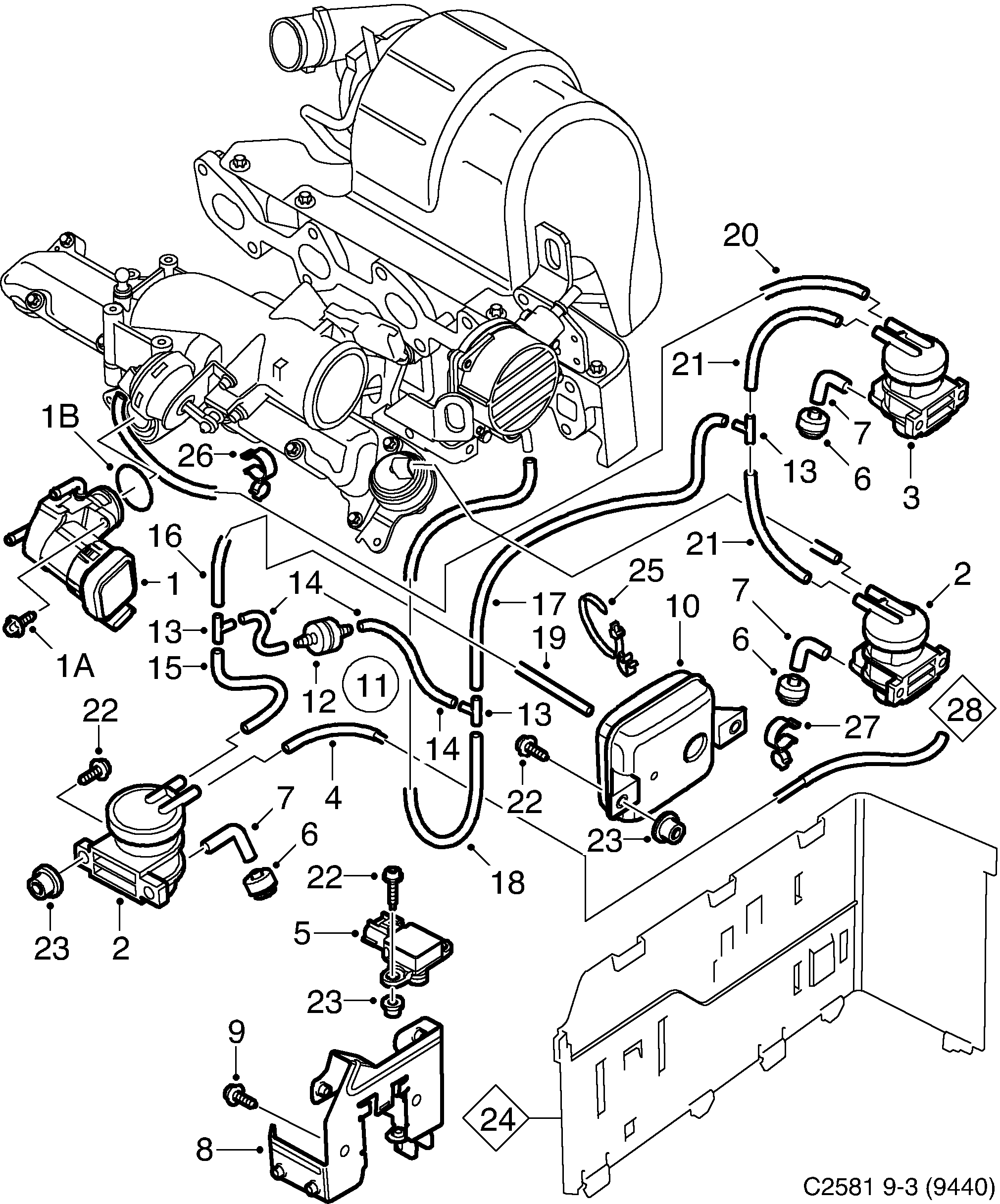

Group 2 Engine, section 4500
| Pos | Article | Part No. |
|---|---|---|
| 1 | Exhaust gas recirculation valve | 93176989 |
| 1A | Screw | 11095001 |
| 1B | O-ring | 93172881 |
| 2 | Solenoid valve | 9128022 |
| 2 | Solenoid valve | 90542357 (replaces 90530039) |
| 3 | Vacuum valve | 9158200 |
| 4 | Vaccum hose | 12793820 |
| 4 | Vaccum hose | 55355333 |
| 5 | Sensor | 24426679 |
| 6 | Filter | 90502861 |
| 7 | Vaccum hose | 90572322 (replaces 90156412) |
| 8 | Bracket | 12793146 |
| 8 | Bracket | 55355310 |
| 9 | Screw | 92153219 (replaces 92150117) |
| 10 | Vacuum tank | 24456686 |
| 10 | Vacuum tank | 90502721 |
| 11 | Vaccum hose | 12785741 |
| 11 | Vaccum hose | 55355309 |
| 12 | Check valve | 12793343 |
| 13 | Pipe | 12791937 |
| 14 | Vaccum hose | 9136243 |
| 15 | Vaccum hose | 5341755 |
| 20 | Vaccum hose | 55355201 |
| 22 | Screw | 11900380 |
| 23 | Nut | 92152247 |
| 25 | Tie strap | 92152311 |
| 26 | Clamp | 92152223 |
| 27 | Clamp | 92152290 |
