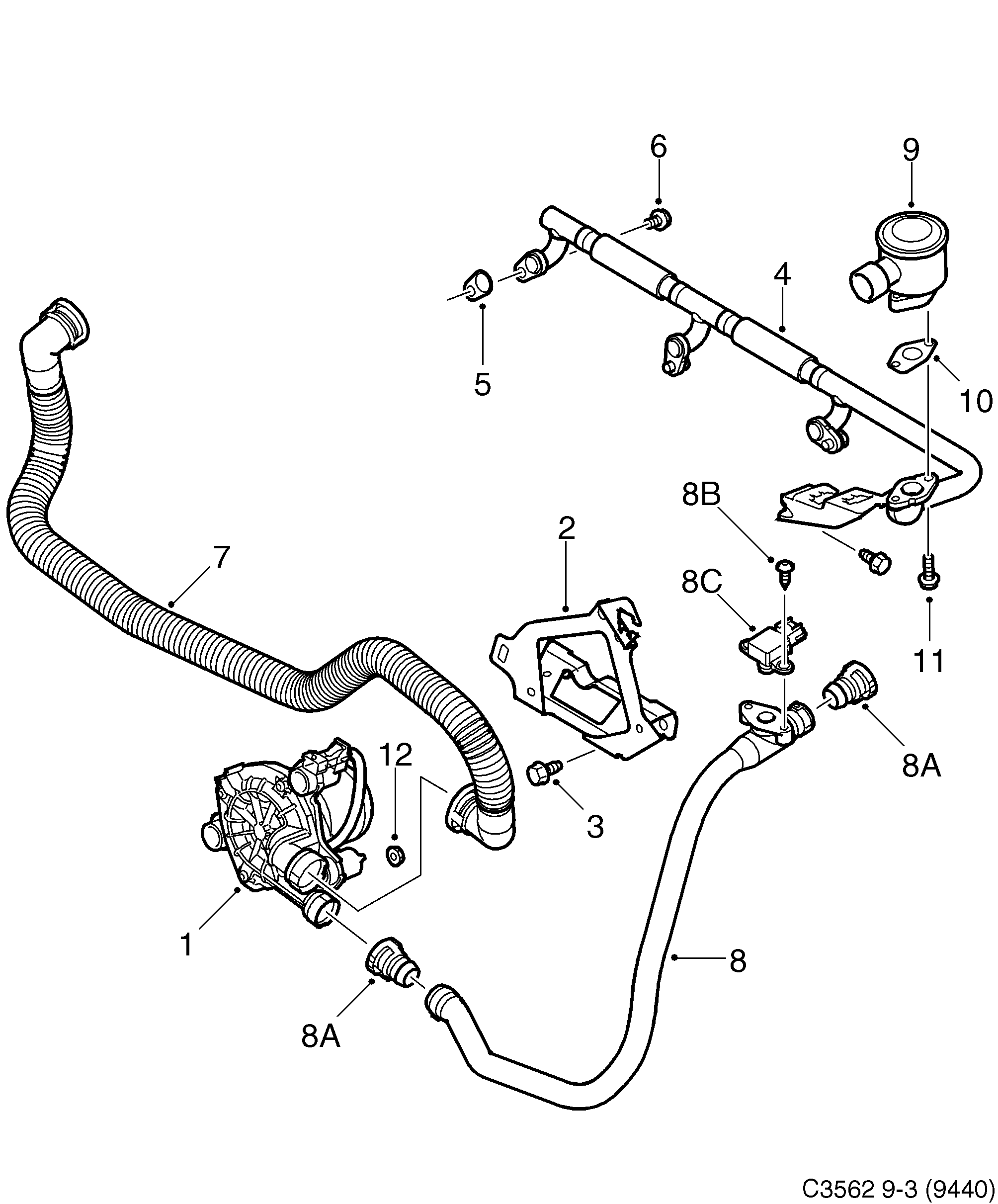

Group 2 Engine, section 4310
| Pos | Article | Part No. |
|---|---|---|
| 1 | Air pump | 12791957 |
| 3 | Hexagon screw | 11900172 |
| 4 | Pipe | 55570333 |
| 5 | Gasket | 55571138 |
| 6 | Screw | 15964657 |
| 7 | Hose | 12791356 |
| 8 | Pipe | 55565766 |
| 8A | Snap-on coupling | 12788180 |
| 8B | Screw | 11900498 |
| 8C | Charge Air Absolute Pressure Sensor | 12787705 |
| 9 | Secondary air injection air flow check valve | 12791285 |
| 10 | Gasket | 12565989 |
| 11 | Screw | 11518062 |
| 12 | Nut | 11900428 |
