Saab 9-3 (9440) 2003-2011 Exhaust manifold

Group 2 Engine, section 4200

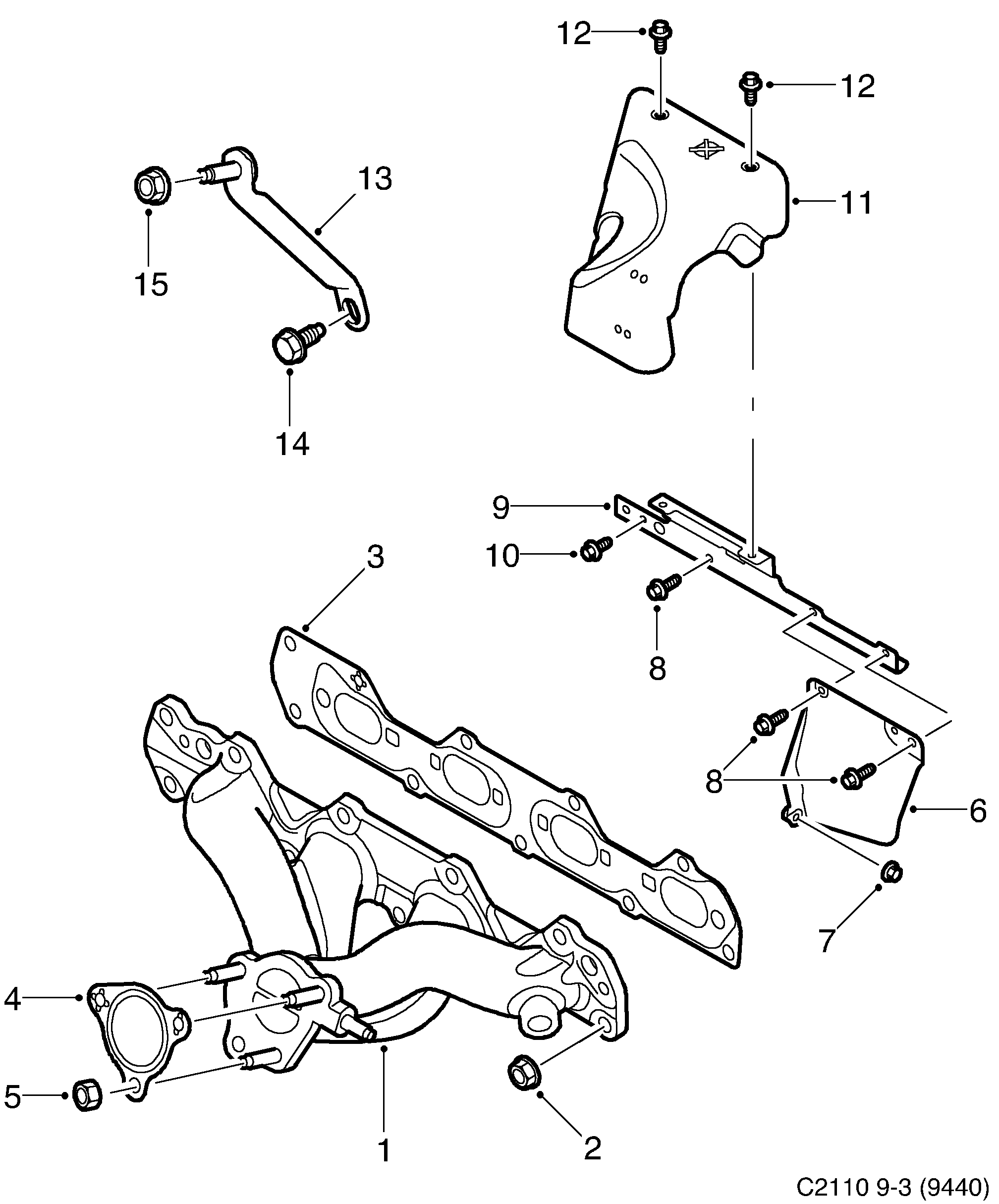

Saab 9-3 (9440) Exhaust manifold diagram
PosArticlePart No.
1Exhaust manifold12794948
1Exhaust manifold12786716
1Exhaust manifold55556887
1Exhaust manifold55556888
2Nut11516076
3Gasket12794952
3Gasket12786717
4Gasket90537716
5Nut55555775 (replaces 12795154)
5Nut55555775 (replaces 55353757)
5Self-locking nut55555775
6Heat shield55556889 (replaces 12786229)
6Heat shield55556889
8Hexagon screw11900172
9Bracket12786230
10Screw11085673
11Heat shield55565837
12Hexagon screw11900161
13Brace12755103
14Screw55565774 (replaces 92150025)
15Nut11900430
