Saab 9-3 (9440) 2005-2011 Inlet pipe

Group 2 Engine, section 4085

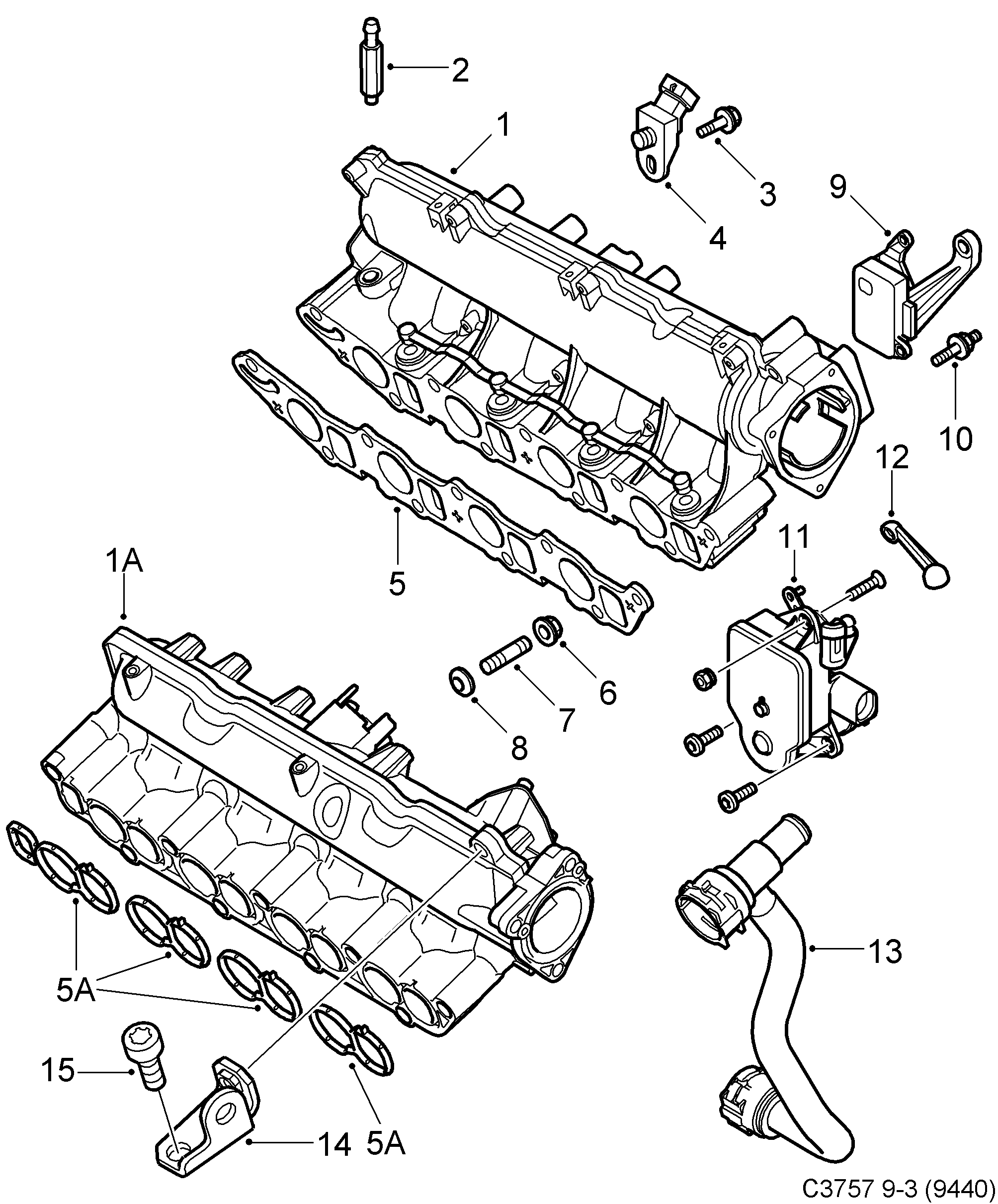

Saab 9-3 (9440) Inlet pipe diagram
PosArticlePart No.
1Intake manifold55210201 (replaces 93179055)
1Inlet manifold55210201 (replaces 55206459)
1Inlet manifold55210201
1AInlet manifold55229190 (replaces 93191642)
1AInlet manifold55229190 (replaces 93167076)
2Nipple93179056
3Screw93178850
4Charge Air Absolute Pressure Sensor55206797
4Vacuum sensor93191643
5Gasket93179058
5AGasket93167215
6Nut93178880
6Nut93177333
7Stud93179065
8Washer93178879
9Actuator55199915
9Actuator55206457
10Screw93181545
11Control valve55205127 (replaces 93185801)
11Control valve55205127
12Connecting bar93186274
13Hose55224775 (replaces 93191647)
14Bracket55214102
15Screw55214613
