Saab 9-3 (9440) 2004-2009 Inlet pipe

Group 2 Engine, section 4025

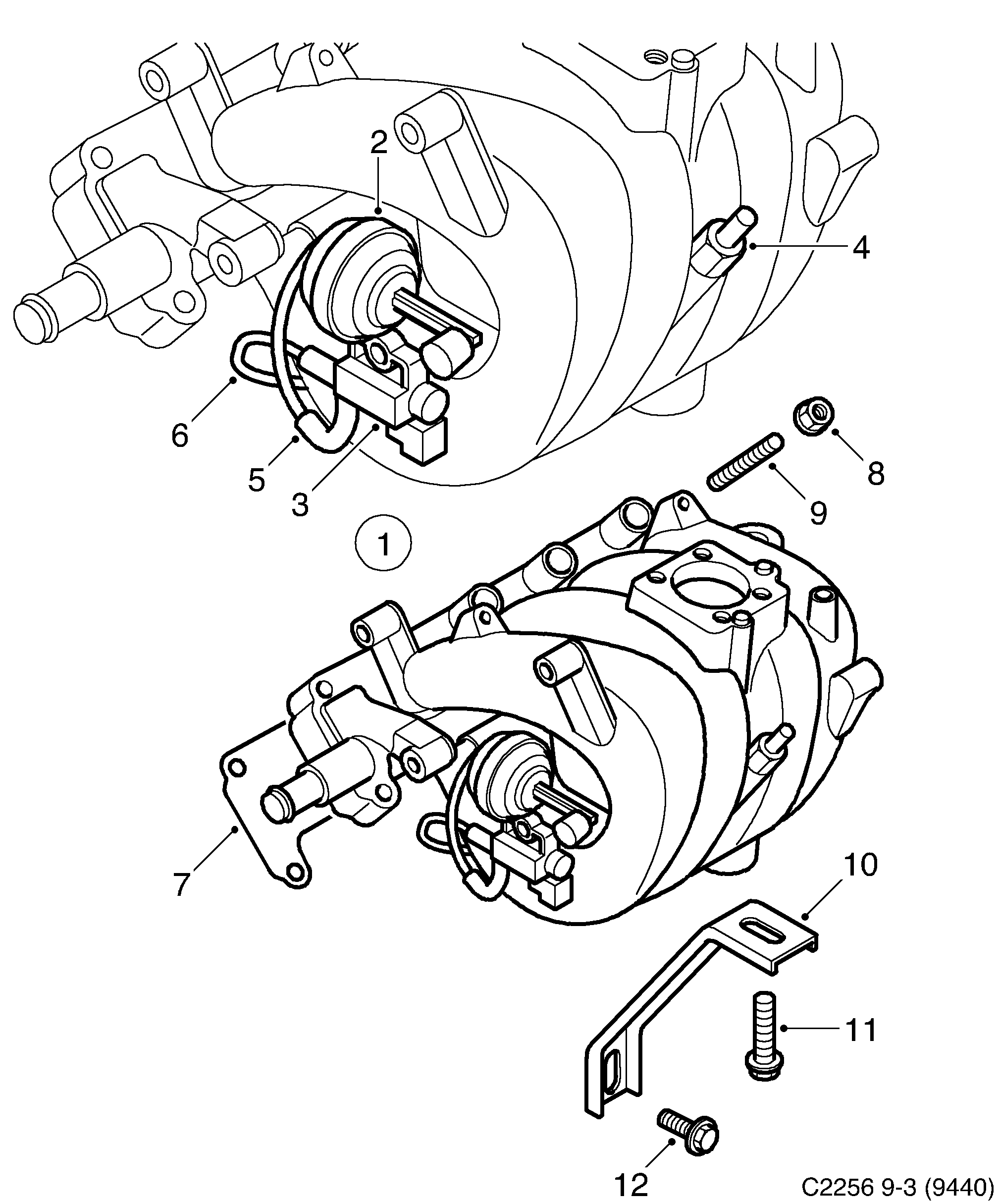

Saab 9-3 (9440) Inlet pipe diagram
PosArticlePart No.
1Intake manifold24405386
Nipple90469109
2Vaccum box24449447
3Idle air control valve90542387
4Nipple90498943
5Hose90536266
6Hose90536267
7Gasket kit90536057
8Nut90502418
9Stud9158731
10Brace24435867
11Screw11085655
12Screw11080457
