Saab 9-3 (9440) 2008-2011 Injection pump Injection valve

Group 2 Engine, section 3576

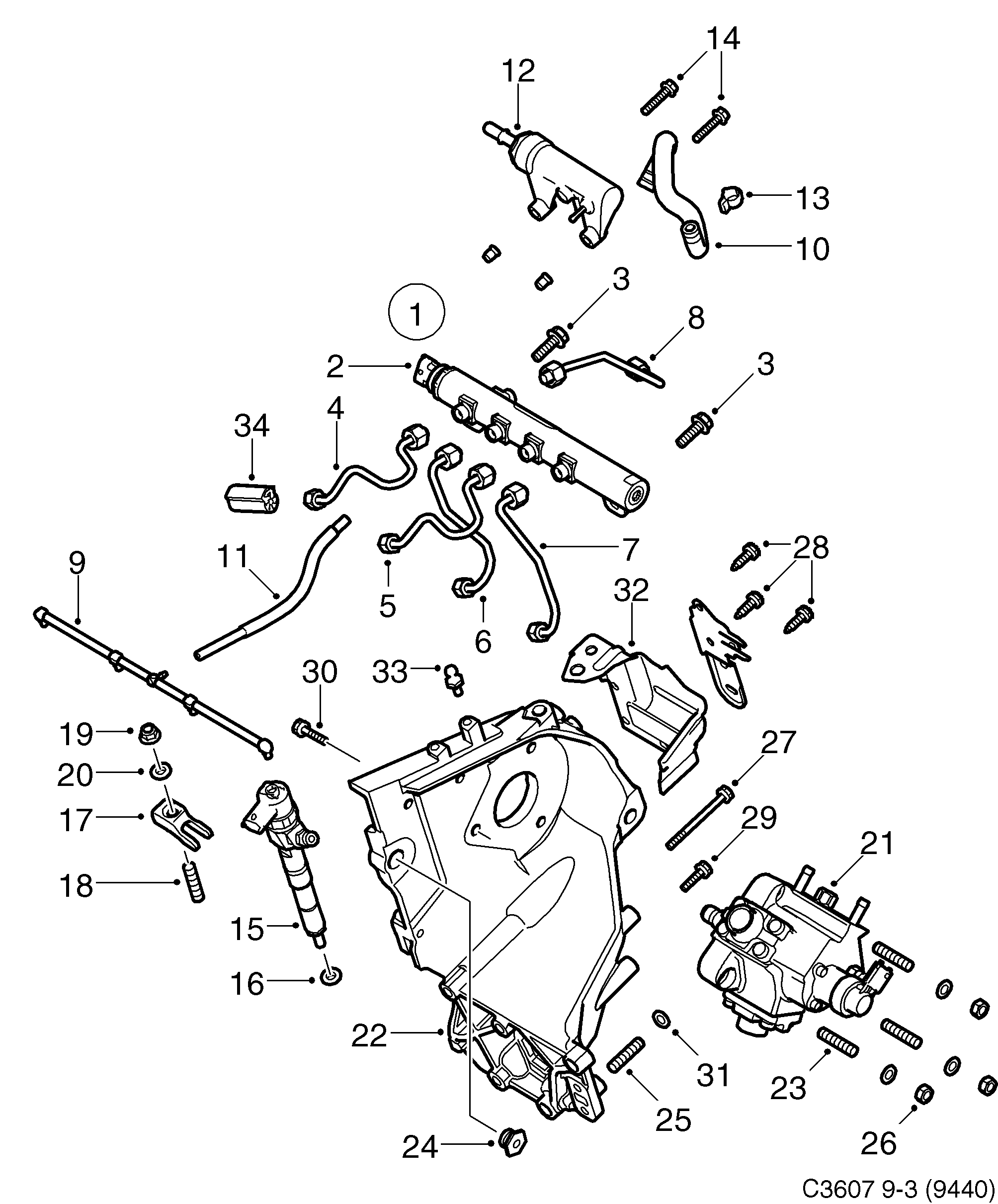

Saab 9-3 (9440) Injection pump Injection valve diagram

Pos	Article	Part No.
1	Distribution pipe	93166897
2	Sensor	93185626
3	Screw	93191368
4	Fuel pipe	93191392
5	Fuel pipe	93191393
6	Fuel pipe	93191391
7	Fuel pipe	93191390
8	Fuel pipe	93191394
9	Pipe	93186425
10	Hose	93191385
11	Hose	93191386
11	Hose	55573521 (replaces 93167079)
11	Hose	55573521
12	Reservoir	93191384
12	Reservoir	93167078
13	Hose clamp	93177692
14	Screw	12855336
15	Injector	55221024 (replaces 93191395)
16	Gasket	93178683
17	Carrier	93191396
18	Stud	93179050
19	Nut	93177333
20	Washer	93179049
21	Injection pump	93191383
22	Bracket	93191401
23	Stud	93191402
24	Sleeve nut	93190054
25	Screw plug	93178469
26	Nut	93178880
27	Screw	93182452
28	Screw	92152043
29	Screw	93178847
29	Screw	93179333
30	Screw	93178981
31	Washer	93179080
32	Protecting sleeve	55565846
33	Ball stud	55560110
34	Absorber	55214403
