Saab 9-3 (9440) 2006-2011 Fuel tank

Group 2 Engine, section 3180

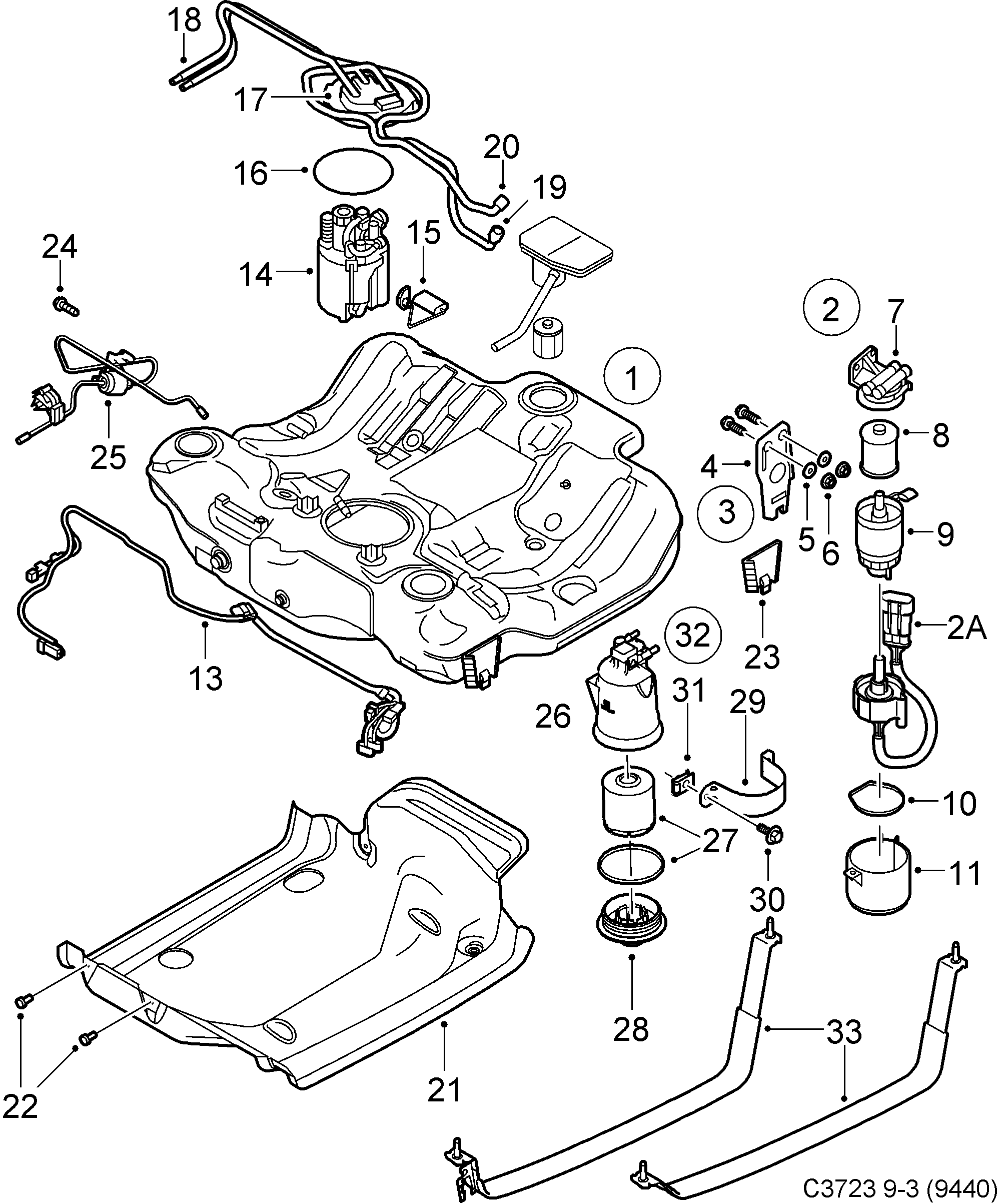

Saab 9-3 (9440) Fuel tank diagram

Pos	Article	Part No.
1	Fuel reservoir	12774341 (replaces 12760984)
1	Fuel reservoir	12774341 (replaces 12765727)
1	Fuel reservoir	12774341
1	Fuel reservoir	12841688
1	Fuel reservoir	12774340 (replaces 12759934)
1	Fuel reservoir	12774340 (replaces 12765726)
1	Fuel reservoir	12774340
1	Fuel reservoir	12841694
2	Fuel filter	12759935
2A	Sensor	12762673
3	Bracket	12762676
4	Bracket	12760509
5	Washer	12760510
6	Nut	7977309
7	Plate	12762668
8	Fuel filter	12762671
10	Retainer	7971898 (replaces 11900514)
10	Tie strap	7971898
11	Protecting cover	12762674
13	Cable harness	12762576
13	Cable harness	12762575
14	Fuel pump	93190714 (replaces 93183815)
14	Fuel pump	93190714
14	Fuel pump	93190713 (replaces 93184862)
14	Fuel pump	93190713
15	Fuel gauge sensor	13178568
16	Seal	24439526
17	Lock ring	90572096
18	Return line	13182628
19	Fuel pipe	12762663
20	Fuel pipe	12762662
21	Heat shield	24401337
22	Screw	9128429
23	Bracket	24403470
24	Screw	11095531
25	Fuel pump	13139977
26	Fuel filter	12841689
27	Fuel filter	13263262
28	Retainer	13263263
29	Clamp	12841698
30	Screw	12841696
31	Nut	12846898
32	Filter kit	93168613
33	Tie strap	12841857 (replaces 12791363)
33	Tie strap	12841857
33	Tie strap	12841858 (replaces 12790329)
33	Tie strap	12841858
