Saab 9-3 (9440) 2003-2004 Fuel tank

Group 2 Engine, section 3150

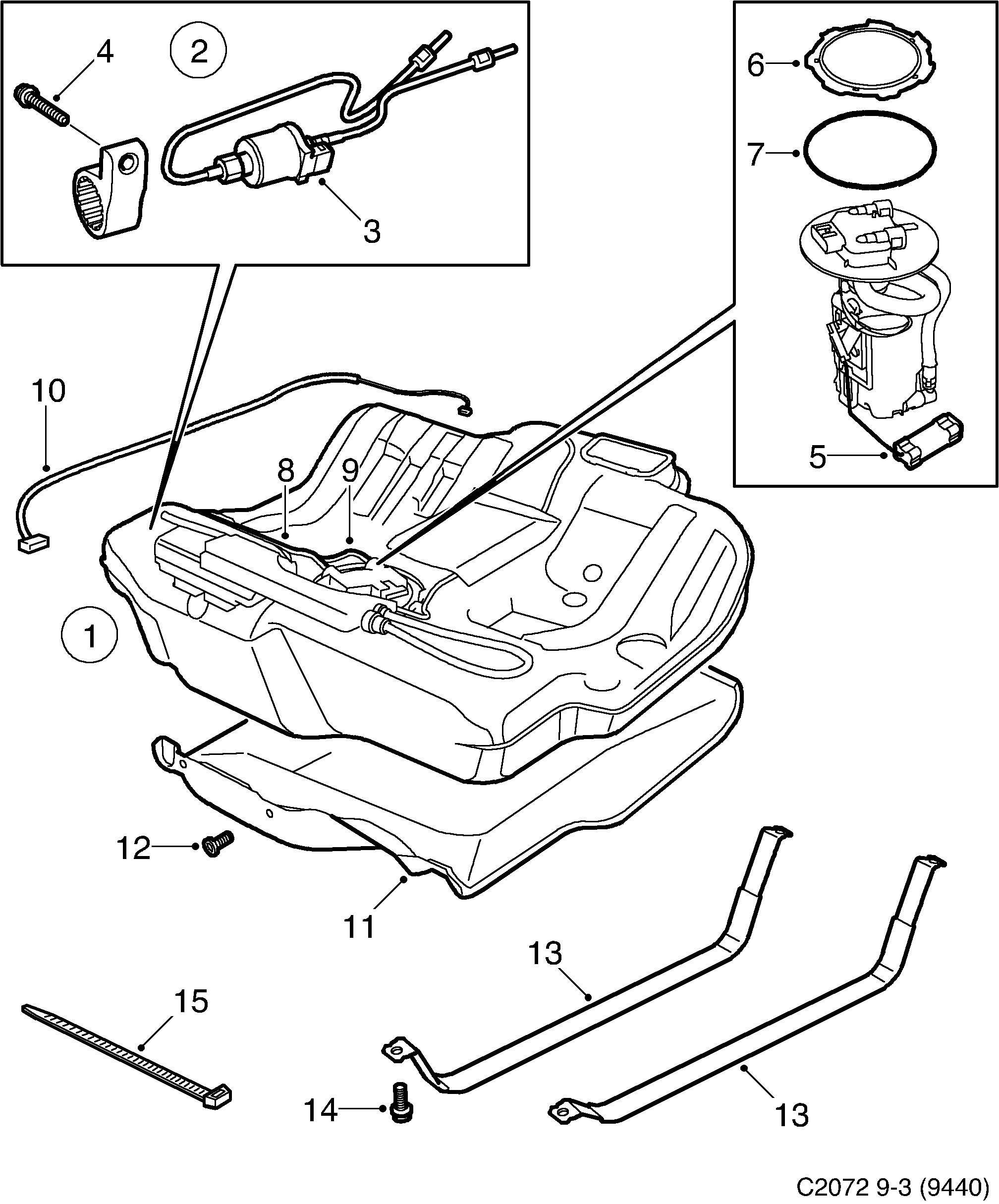

Saab 9-3 (9440) Fuel tank diagram

Pos	Article	Part No.
1	Tank	12803752 (replaces 12789481)
1	Tank	12803752
1	Tank	12804032 (replaces 12803970)
1	Tank	12804032
2	Fuel pump	24467304
4	Screw	11095531
5	Fuel gauge sensor	13178568 (replaces 13132540)
6	Lock ring	90572096
7	Seal	24439526
8	Fuel pipe	24463915
9	Fuel pipe	12802599
10	Cable harness	12803272
11	Heat shield	24401337
12	Screw	9128429
13	Tie strap	12841857 (replaces 12791363)
13	Tie strap	12841858 (replaces 12790329)
15	Tie strap	11900512
