Saab 9-3 (9440) 2008-2011 Fuel tank

Group 2 Engine, section 3130

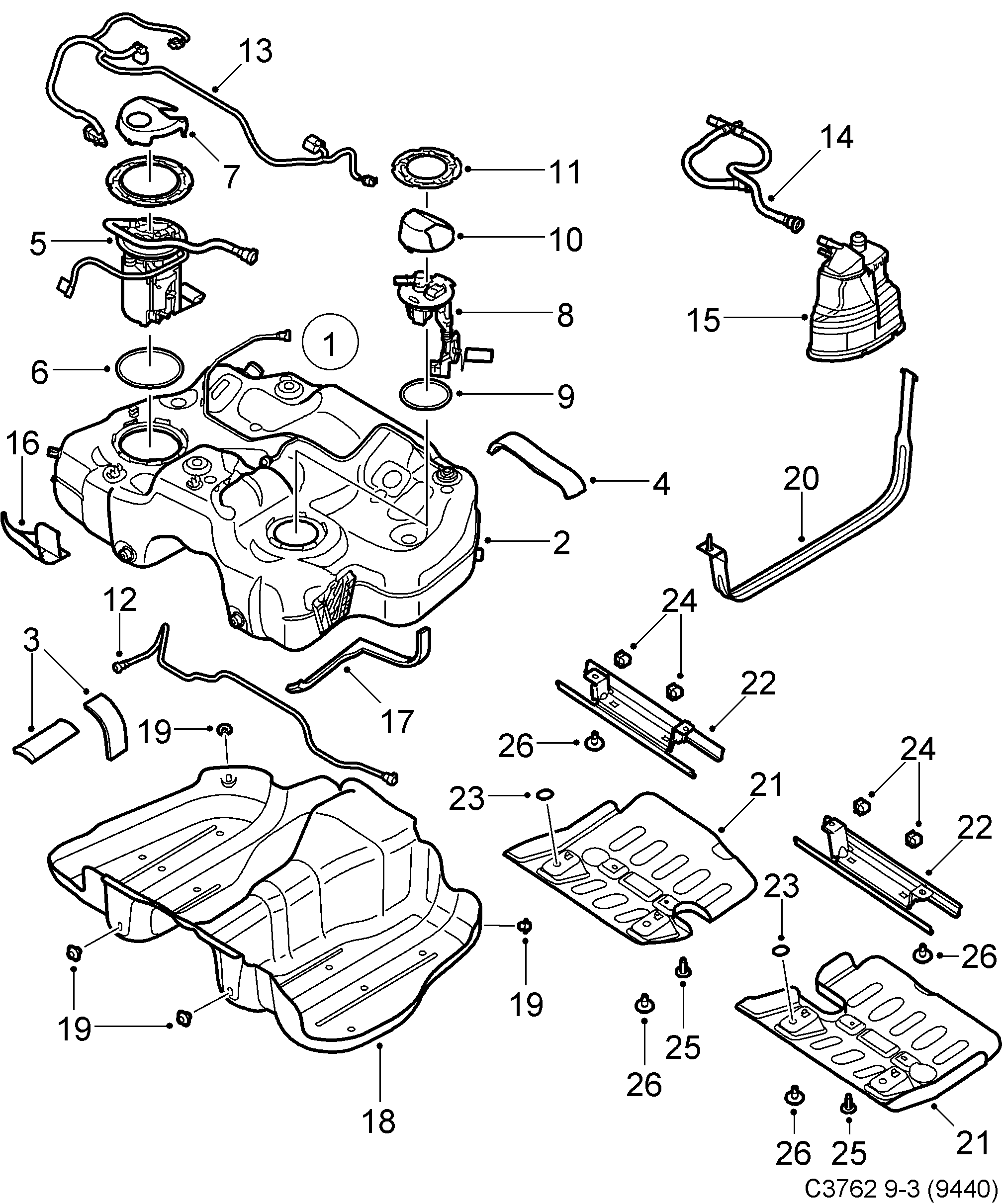

Saab 9-3 (9440) Fuel tank diagram

Pos	Article	Part No.
1	Fuel reservoir	12778058
2	Fuel reservoir	12781654
3	Insulation	12784770
4	Insulation	12841859
5	Fuel pump	12780869
6	O-ring	22682111
7	Cover	12781296
8	Fuel gauge	12783024
9	Sealing ring	15776433
10	Cover	12781304
11	Retainer	15776431
12	Pipe, fuel evaporation	12783030
13	Connecting cable	12783031
14	Pipe, fuel evaporation	12781658
15	Reservoir	13230482
	Solenoid valve	25932573
	Filter insert	22682316
	Seal	25827633
	Cover	13267930
	Cap blanking	13267929
16	Protection	12781651
17	Seal	12842153
18	Heat shield	12781649
19	Plastic rivet	22718369
20	Tie strap	12777526
20	Tie strap	12777527
21	Protecting plate	12783570
21	Protecting plate	12783532
22	Bracket	12783572
23	Spacer	4858098
24	Nut	11570215
25	Screw	11609341
