Saab 9-3 (9440) 2006-2011 Fuel tank

Group 2 Engine, section 3120

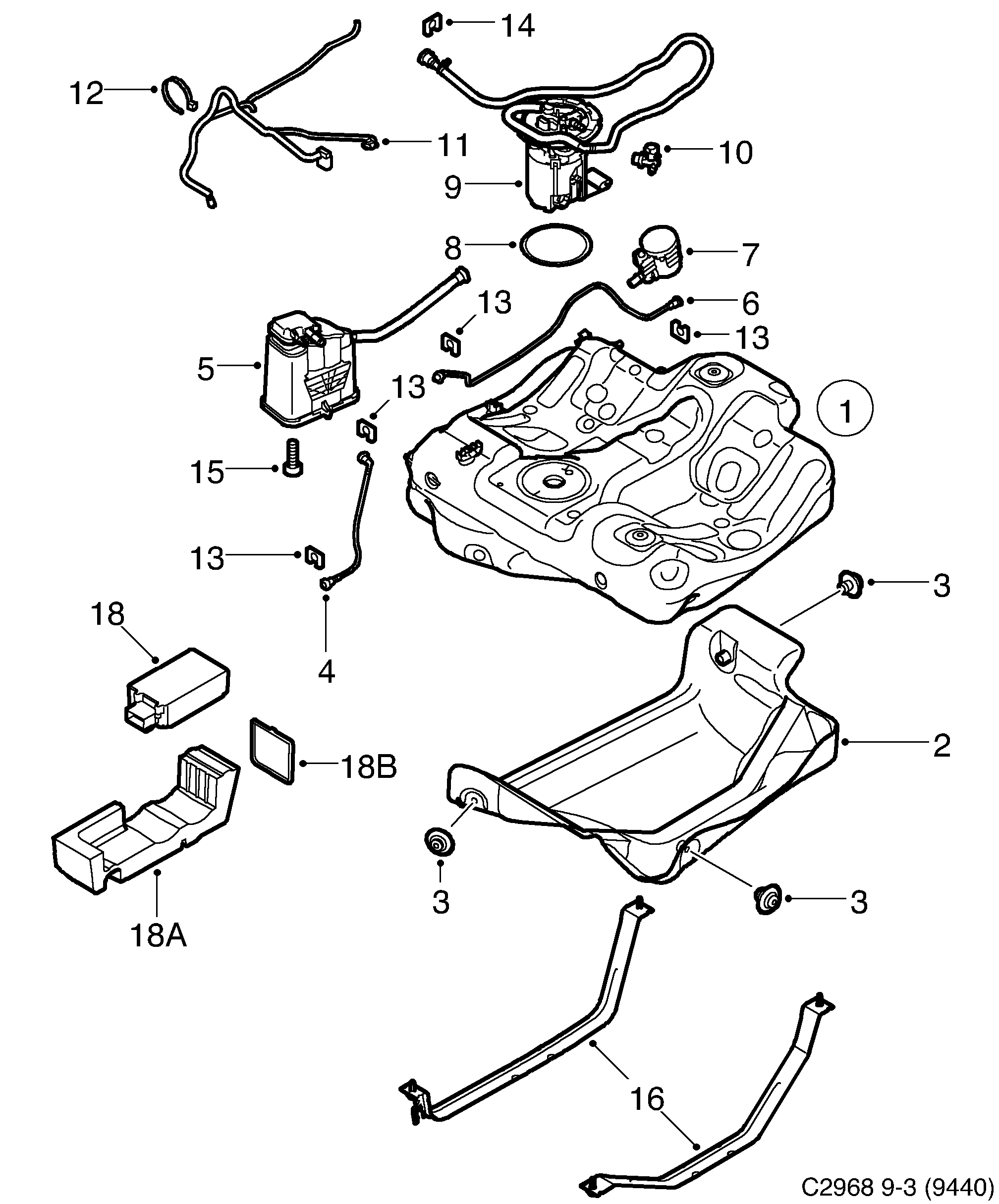

Saab 9-3 (9440) Fuel tank diagram

Pos	Article	Part No.
1	Fuel reservoir	12794591
1	Fuel reservoir	12781853
2	Heat shield	22629654
3	Plastic rivet	22718369
4	Vent hose	22667422
5	Charcoal canister	12758815
6	Vent hose	22729539
7	Valve	10382105
8	Seal	22672293
9	Fuel pump	12763086
10	Valve	12804126
11	Cable harness	12798685
12	Tie strap	11900512
13	Clip	21992748
14	Clip	21992746
15	Screw	11900509
16	Tie strap	22629652
16	Tie strap	22629651
18	Control unit	12762917
18	Control unit	12762918
18A	Support	12765689
18A	Support	12765690
18B	Tie strap	11900513
