Saab 9-3 (9440) 2008-2011 Fuel tank

Group 2 Engine, section 3107

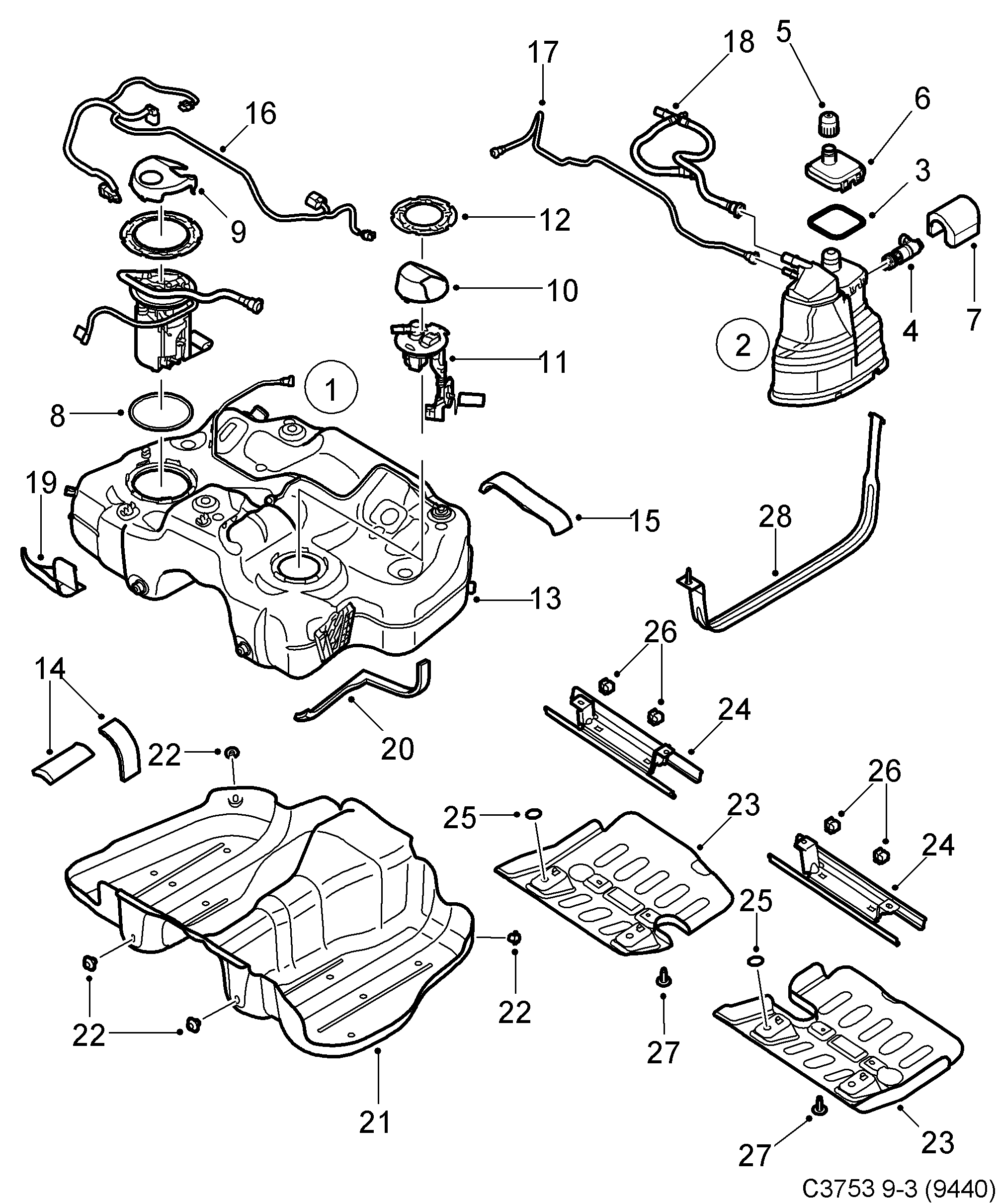

Saab 9-3 (9440) Fuel tank diagram

Pos	Article	Part No.
1	Fuel reservoir	12777525
	Fuel pump	12845869
2	Reservoir	12781775
3	Seal	25827633
4	Solenoid valve	25932573
5	Cap blanking	13267929
6	Cover	13267930
7	Filter insert	22682316
8	O-ring	22682111
9	Cover	12781296
10	Cover	12781304
11	Fuel gauge	12783024
12	Retainer	15776431
13	Fuel reservoir	12781654
14	Insulation	12784770
15	Insulation	12841859
16	Connecting cable	12783031
17	Pipe, fuel evaporation	12783030
18	Pipe, fuel evaporation	12781658
19	Protection	12781651
20	Seal	12842153
21	Heat shield	12781649
22	Plastic rivet	22718369
1	Fuel reservoir	12784882
23	Protecting plate	12783570
23	Protecting plate	12783532
24	Bracket	12783572
25	Spacer	4858098
26	Nut	11570215
27	Screw	11609341
28	Tie strap	12777526
28	Tie strap	12777527
