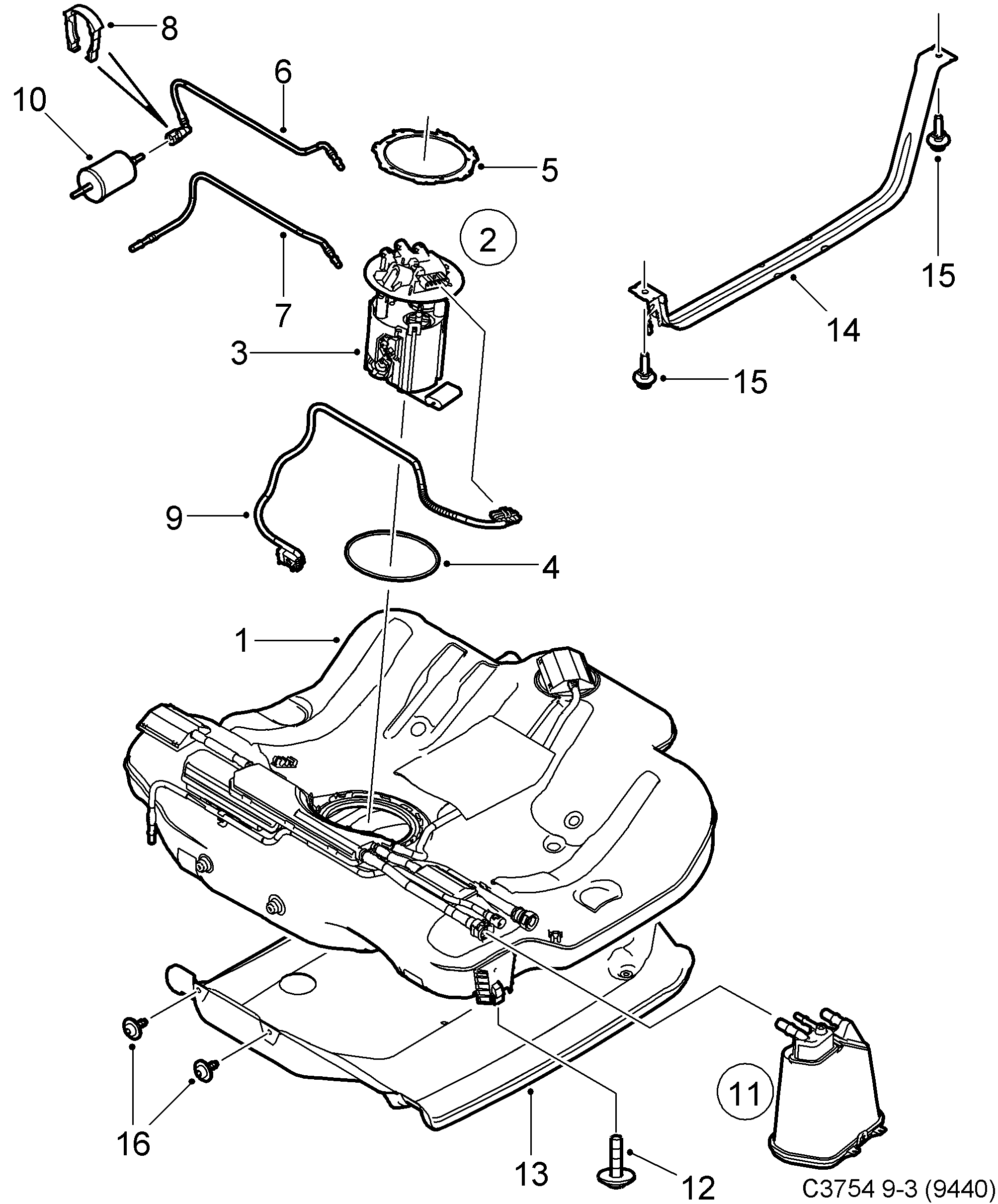

Group 2 Engine, section 3100
| Pos | Article | Part No. |
|---|---|---|
| 1 | Tank | 12804945 (replaces 12787800) |
| 1 | Tank | 12774338 (replaces 12803212) |
| 1 | Fuel reservoir | 12774338 |
| 1 | Fuel reservoir | 12772129 |
| 1 | Tank | 12774337 (replaces 12802495) |
| 1 | Fuel reservoir | 12774337 |
| 1 | Tank | 12804945 |
| 2 | Fuel pump | 12805467 |
| 3 | Fuel gauge sensor | 22672171 |
| 2 | Fuel pump | 93185093 |
| 3 | Fuel gauge sensor | 13178568 |
| 2 | Fuel pump | 12772130 |
| 2 | Fuel pump | 93183433 (replaces 13178573) |
| 2 | Fuel pump | 93183433 |
| 4 | Seal | 22672293 |
| 4 | Seal | 24401341 |
| 5 | Lock ring | 90572096 |
| Cam | 10325852 | |
| 6 | Fuel pipe | 24403456 |
| 7 | Fuel pipe | 24403460 |
| 8 | Clip | 21992746 |
| 9 | Cable harness | 12798685 (replaces 12788302) |
| 9 | Cable harness | 12803214 |
| 9 | Cable harness | 12772721 |
| 10 | Fuel filter | 25313359 |
| 11 | Evaporative emission canister | 12756532 (replaces 22680484) |
| 11 | Evaporative emission canister | 9184236 |
| 11 | Charcoal canister | 12758815 |
| 11 | Reservoir | 12781775 |
| 12 | Screw | 11561911 |
| 13 | Heat shield | 22629654 |
| 13 | Heat shield | 24401337 |
| 14 | Tie strap | 22629652 |
| 14 | Tie strap | 12841857 |
| 14 | Tie strap | 22629651 |
| 14 | Tie strap | 12841858 |
| 16 | Plastic rivet | 25612415 |
| 16 | Screw | 9128429 |
| 16 | Plastic rivet | 22718369 |
