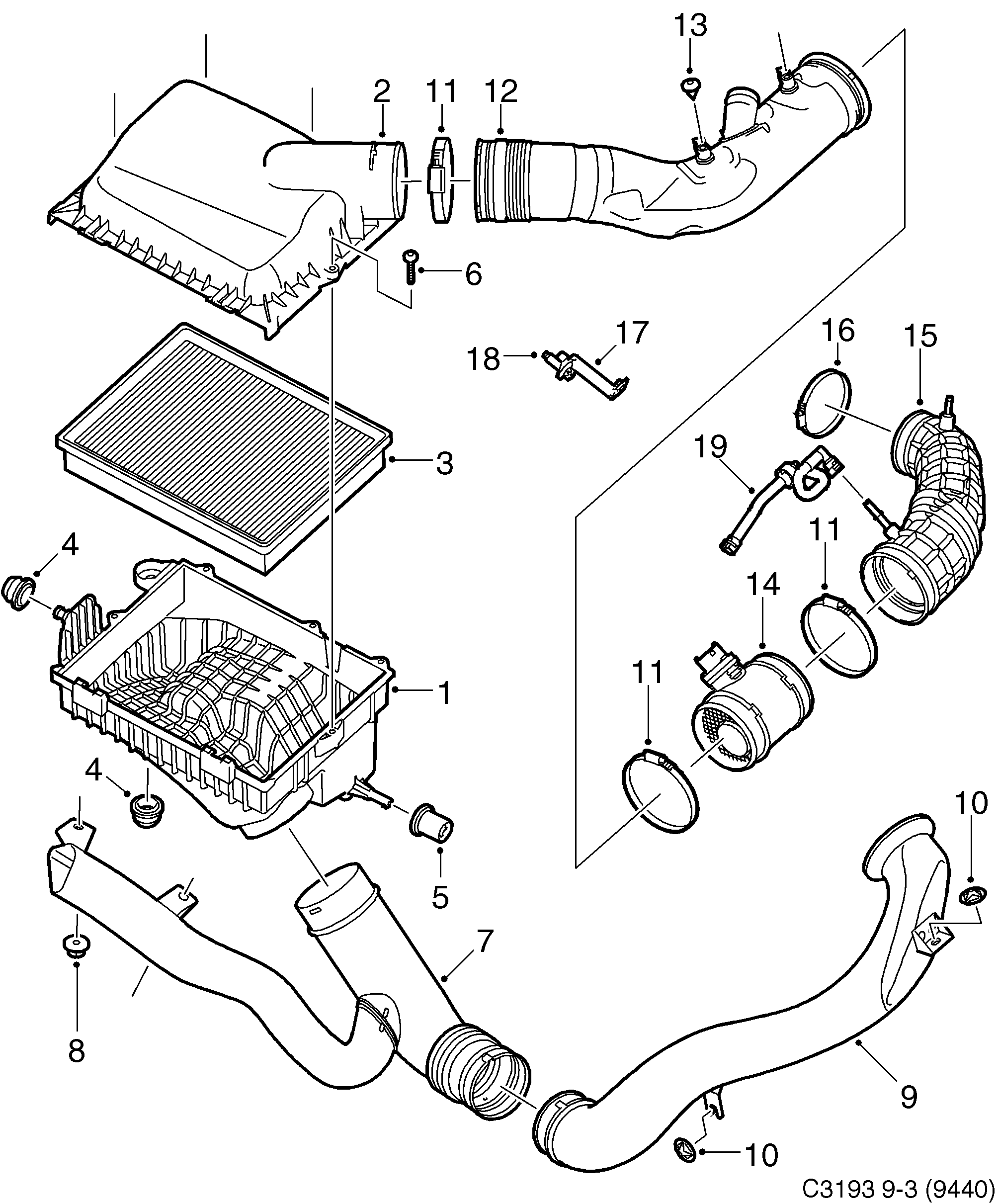

Group 2 Engine, section 3010
| Pos | Article | Part No. |
|---|---|---|
| 1 | Housing | 55559847 |
| 2 | Cover | 12805102 |
| 2 | Cover | 12778842 |
| 3 | Air filter | 12786800 |
| 4 | Rubber spacer | 9129705 |
| 5 | Rubber spacer | 9202941 |
| 6 | Screw | 12800518 |
| 7 | Air inlet | 55557429 |
| 8 | Plastic nut | 90482479 |
| 9 | Air duct | 12798431 |
| 9 | Air duct | 12780403 |
| 10 | Hexagon nut | 92151935 |
| 11 | Hose clamp | 24415474 |
| 12 | Air duct | 12790714 |
| 13 | Screw | 55560599 |
| 14 | Mass air flow sensor | 93185455 |
| 15 | Air hose | 12790715 |
| 16 | Hose clamp | 24415470 |
| 17 | Bracket | 55556314 |
| 18 | Hexagon screw | 11900026 |
| 19 | Plastic pipe | 55557399 |
