Saab 9-3 (9440) 2003-2004 Cylinder head

Group 2 Engine, section 250

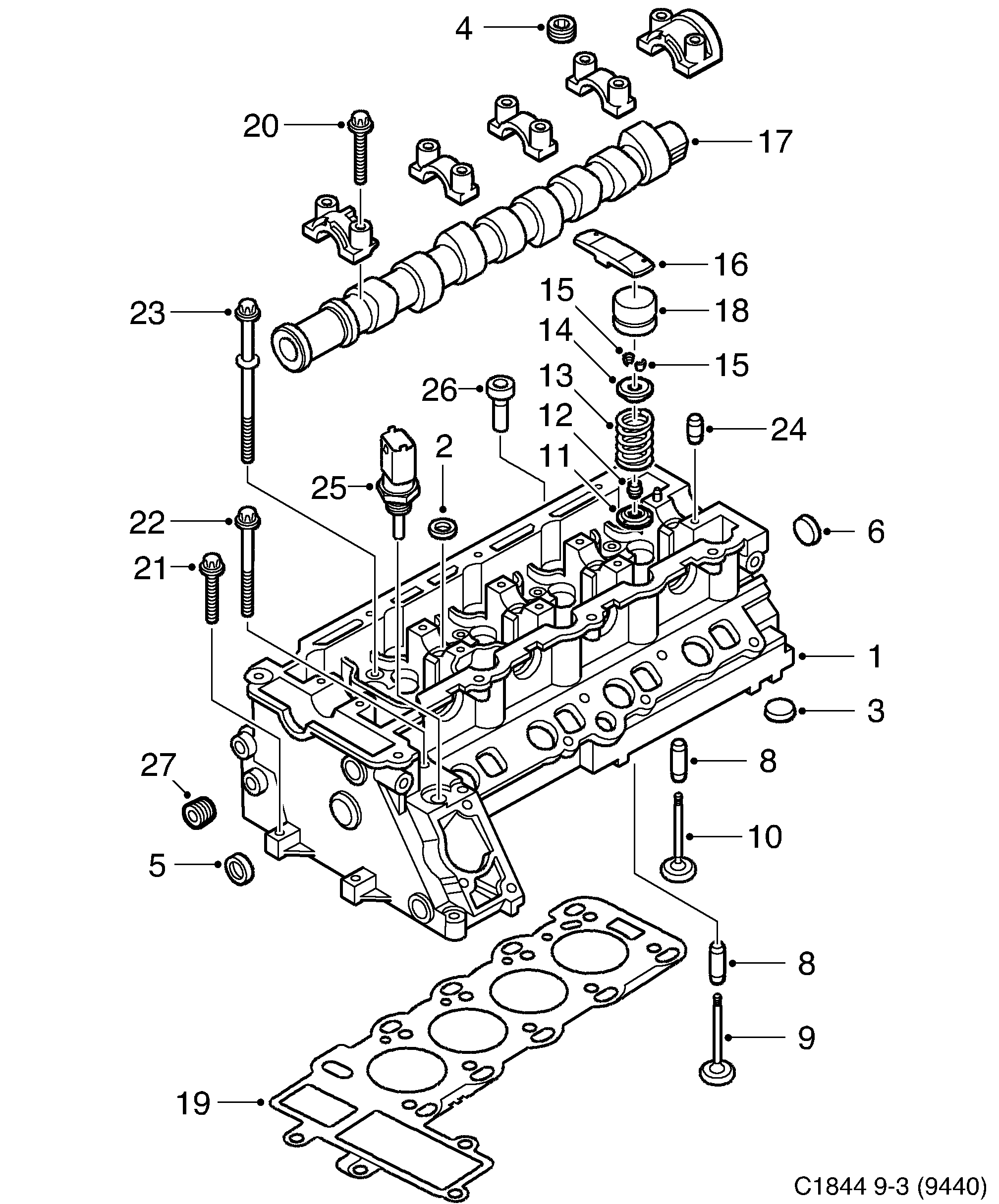

Saab 9-3 (9440) Cylinder head diagram
PosArticlePart No.
1Cylinder head55353380
2Sealing washer90529032
3Sealing washer11071923
4Screw plug11056321
5Sealing washer90502542
6Sealing washer11094191
8Valve guide90572642
8Valve guide90528683
8Valve guide90528685
9Inlet valve90502319
9Inlet valve90502321
9Inlet valve90502322
10Exhaust valve12992480 (replaces 90502326)
10Exhaust valve90502327
10Exhaust valve90502328
11Spring washer90410740
12Seal90410741
13Valve spring90500731
14Valve spring washer90354649
15Valve cone90354648
16Camshaft bridge90502753
17Camshaft9120253
18Tappet9117905
19Gasket93179232 (replaces 90540459)
19Gasket93179232
19Gasket93179232 (replaces 90540460)
19Gasket93179233 (replaces 90540461)
19Cylinder head gasket93179233
19Cylinder head gasket93189314
20Screw11093792
21Screw11097441
22Screw11096621
23Screw90502072
24Roll pin90281475
25Engine coolant temperature sensor90542063 (replaces 90570185)
26Screw11095821
27Screw plug11095512
