Saab 9-3 (9440) 2004-2009 Cylinder head

Group 2 Engine, section 225

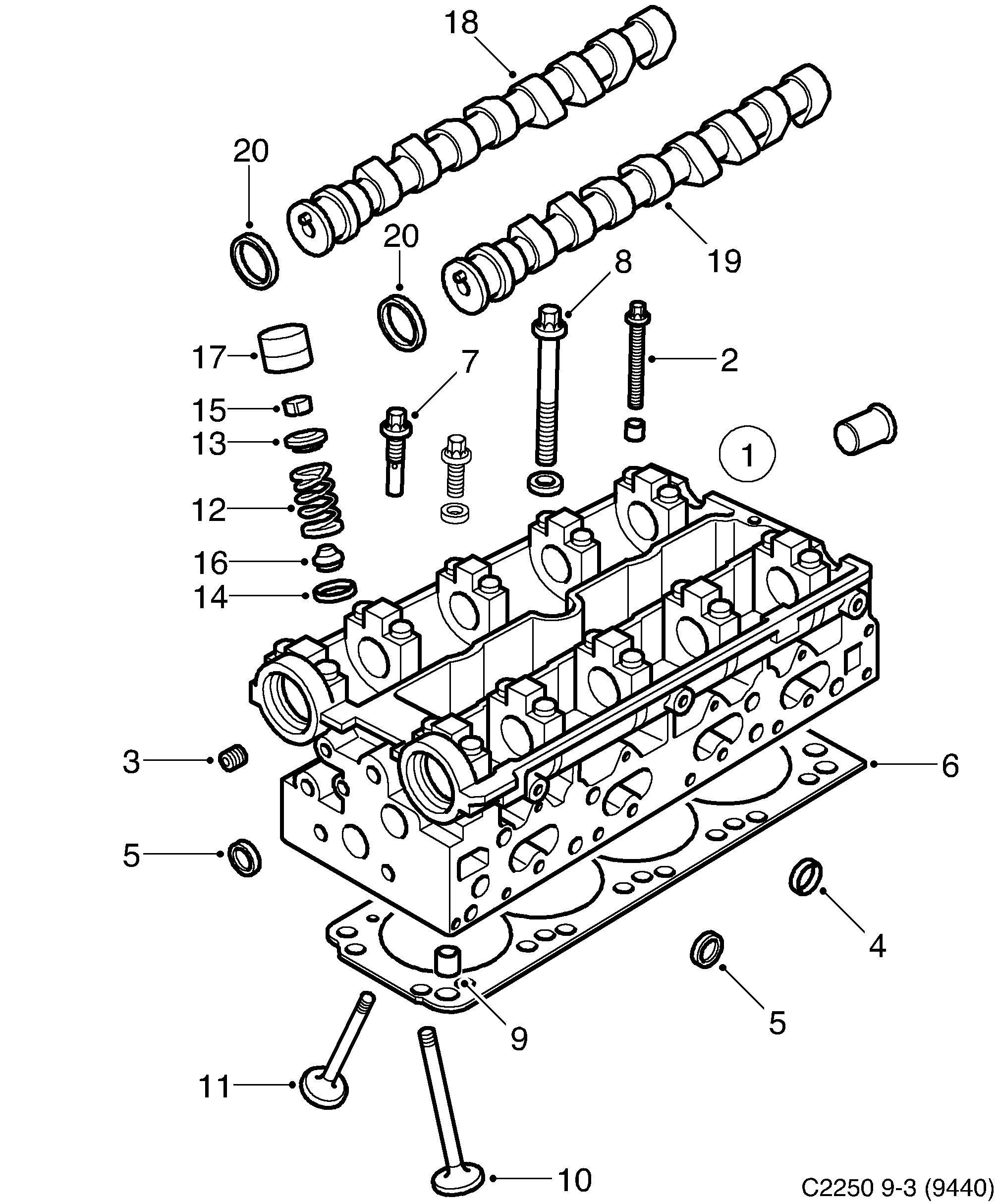

Saab 9-3 (9440) Cylinder head diagram

Pos	Article	Part No.
1	Cylinder head	90543904
2	Stud	11093782
3	Screw plug	11099651
3	Screw plug	11095512
4	Sealing washer	90529032
4	Plug	11052823
4	Plug	55567113
5	Plug	11044142
5	Plug	11084312
6	Gasket	93179932
7	Sleeve	90572700
8	Screw	90412701
9	Sleeve	90351710
10	Inlet valve	90536095
10	Inlet valve	90536430
10	Inlet valve	90536431
11	Exhaust valve	55556689 (replaces 90536164)
11	Exhaust valve	55556689
11	Exhaust valve	90536432
11	Exhaust valve	55556690
11	Exhaust valve	90536433
11	Exhaust valve	55556691
12	Valve spring	90536234
13	Washer	90529532
14	Spring washer	90531107
15	Valve cone	90529533
16	Seal	9158057
17	Tappet	93174076
17	Tappet	93174076 (replaces 93184457)
18	Camshaft	9158623
19	Camshaft	9158629
20	Sealing ring	90298390 (replaces 90285291)
20	Sealing ring	90298390
