Saab 9-3 (9440) 2005-2011 Oil pump

Group 2 Engine, section 2175

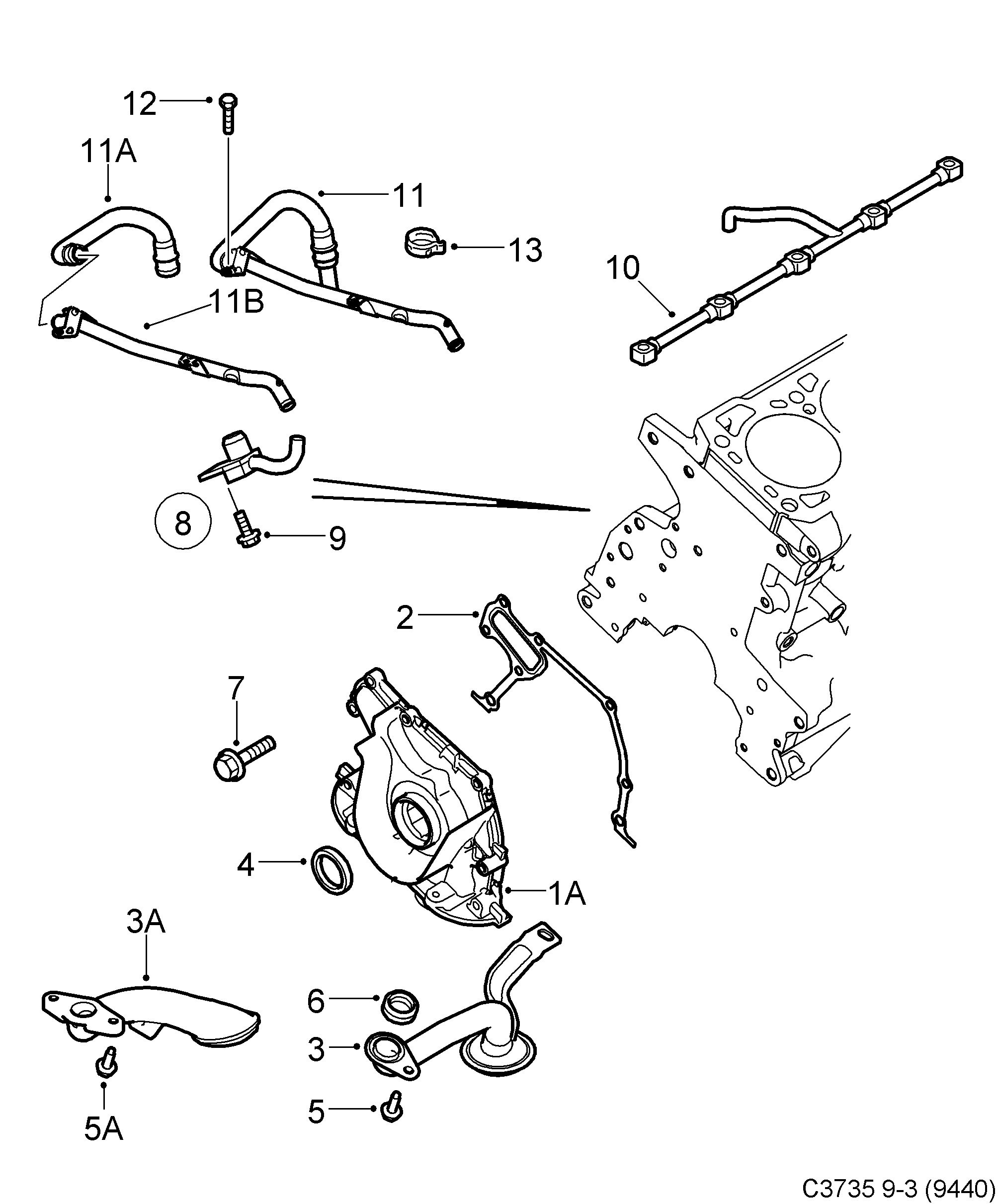

Saab 9-3 (9440) Oil pump diagram

Pos	Article	Part No.
1A	Oil pump	55198355
1A	Oil pump	55215401
2	Gasket	93180736
3	Suction pipe	93180739
4	Seal	93180737
5	Screw	93178806
6	Seal	93180738
2	Gasket	93194994
3	Suction pipe	93194997
4	O-ring	93195042
5	Screw	93195041
6	Gasket	93194996
1A	Oil pump	93191738
3A	Suction pipe	55211281
5A	Bolt	55566197
6	O-ring	93167112
7	Screw	93177832
7	Screw	93177743
8	Oil jet	93178802
8	Nozzle	55202183
9	Screw	93177478
10	Oil jet	93178801
11	Hose	93184683
11	Pipe	93191740
11A	Hose	55207543
11B	Hose	55209237
12	Screw	93179333
12	Screw	93177781
13	Hose clamp	93183679
13	Hose clamp	93179207
