Saab 9-3 (9440) 2003-2004 Oil pump

Group 2 Engine, section 2151

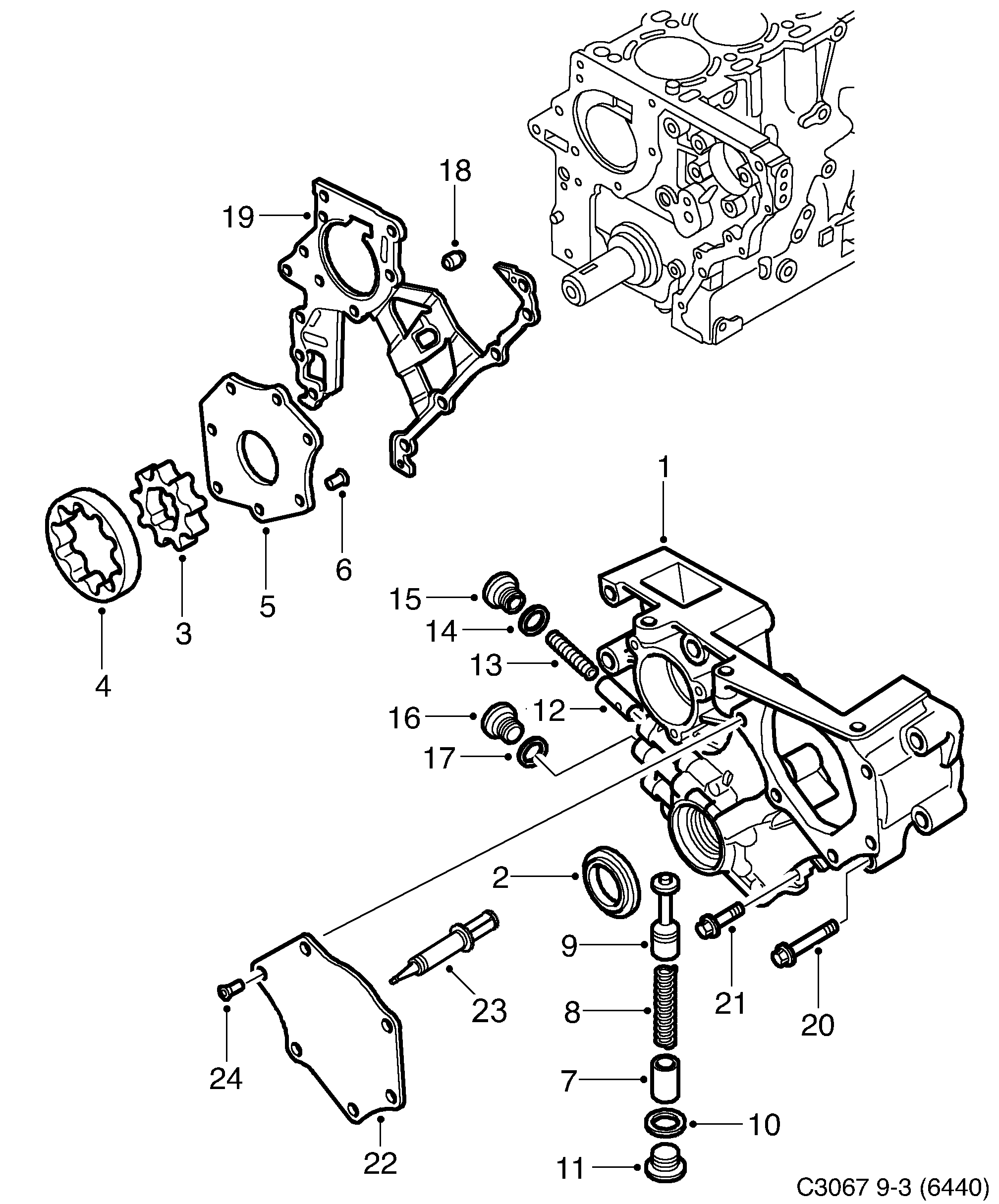

Saab 9-3 (9440) Oil pump diagram

Pos	Article	Part No.
1	Cover	24426999
2	Seal	90500805
3	Pump rotor	9228266
4	Pump rotor	9228265
5	Cover	9129049
6	Screw	11093893
7	Piston	90502640
8	Spring	90502641
9	Piston	90502639
10	Seal	11093042 (replaces 9148404)
11	Plug	11097551
12	Plunger	90502642
13	Spring	90502643
14	Sealing ring	11016282 (replaces 11016289)
15	Plug	90528616
16	Plug	11097541
17	Gasket	11017111
18	Roll pin	90281475
19	Gasket	9202219
20	Screw	11093792
21	Screw	11093612
22	Cover	90530170
