Saab 9-3 (9440) 2006-2011 Cylinder head

Group 2 Engine, section 210

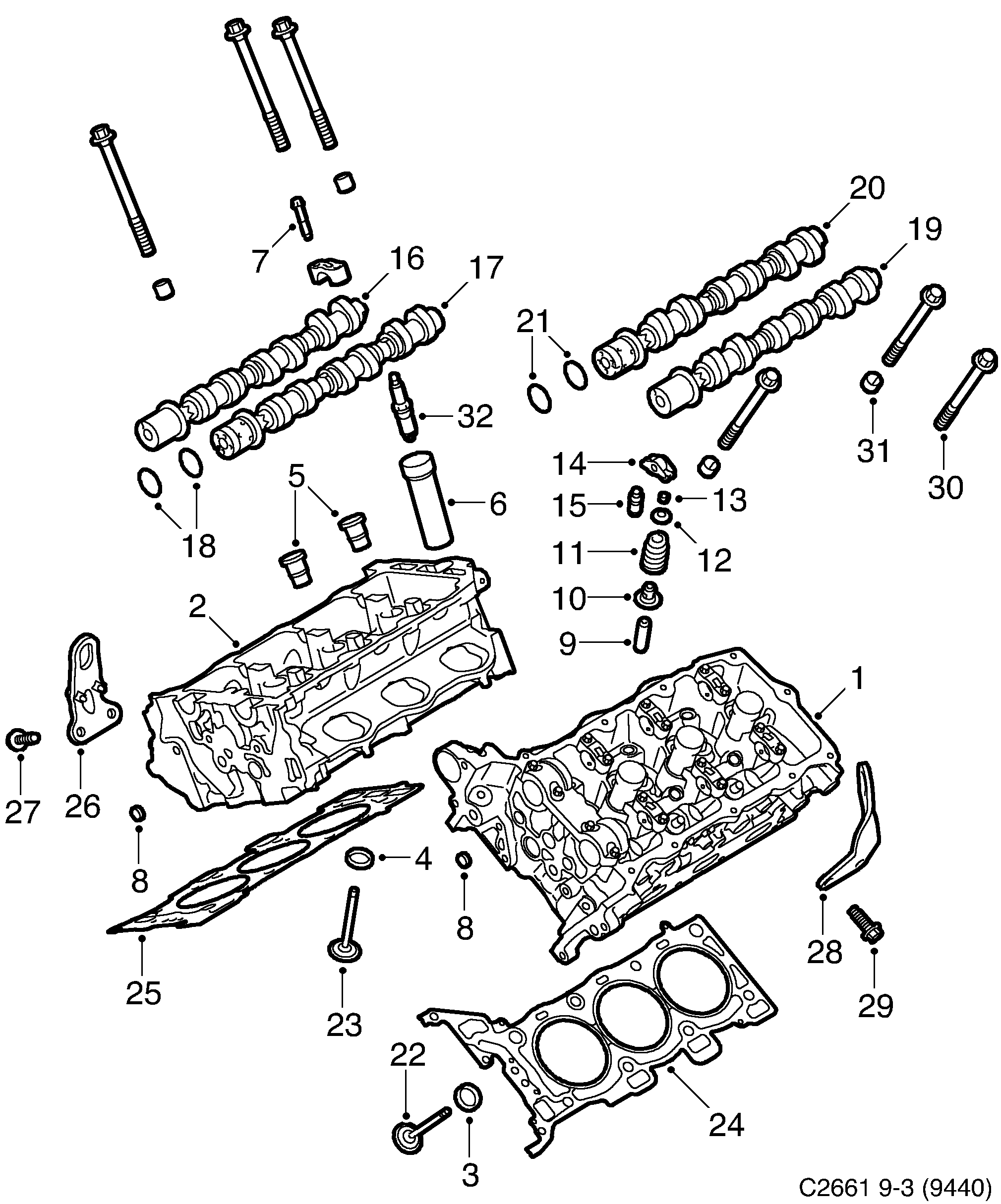

Saab 9-3 (9440) Cylinder head diagram

Pos	Article	Part No.
1	Cylinder head	12607538 (replaces 12566823)
1	Cylinder head	12607538
2	Cylinder head	12607540 (replaces 12566814)
2	Cylinder head	12607540
3	Valve seat ring	12575345
4	Valve seat ring	12571132
5	Cap	11561751
6	Insulating sleeve	12578361
7	Hexagon screw	11518856
8	Lock plug	12566290
8	Plug	11562127
9	Valve guide	12571761
10	Valve steam seal	12565836
11	Valve spring	12575355
12	Disc	12575196
13	Valve cone	12575197
14	Rocker arm	24100294
15	Valve lifter	9194698
16	Camshaft	12566691
16	Camshaft	12616164
17	Camshaft	12566690
17	Camshaft	12612843 (replaces 12603538)
17	Camshaft	12612843
17	Camshaft	12620460
18	Scalloped seal ring	12574477
19	Camshaft	12566693
19	Camshaft	12616165
20	Camshaft	12566692
20	Camshaft	12620462 (replaces 12603539)
20	Camshaft	12612842
20	Camshaft	12620462
22	Inlet valve	12575352
22	Inlet valve	12584763
23	Exhaust valve	12575356
23	Exhaust valve	12584760
24	Cylinder head gasket	12605844 (replaces 12566834)
24	Cylinder head gasket	12605844
25	Cylinder head gasket	12605845 (replaces 12566835)
25	Cylinder head gasket	12605845
26	Shackle	12798365
27	Screw	24447549
28	Shackle	55561157
29	Hexagon screw	11588739
30	Screw	11518863
30	Screw	11588734
31	Centering sleeve	12558081
32	Spark plug	12788884
32	Spark plug	55564748
	Delivery valve	12580965
