Saab 9-3 (9440) 2005-2011 Oil pan

Group 2 Engine, section 2065

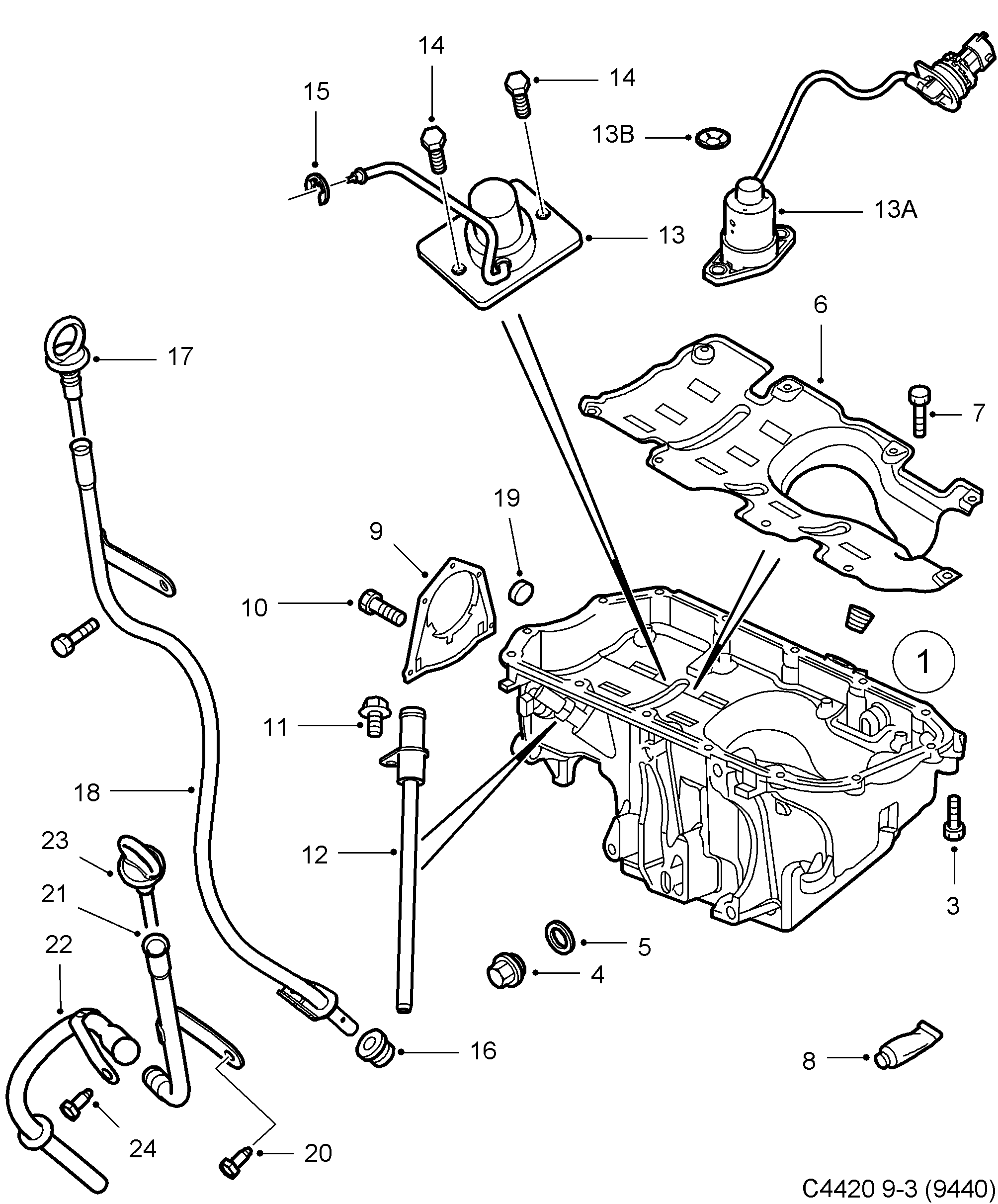

Saab 9-3 (9440) Oil pan diagram

Pos	Article	Part No.
1	Oil pan	93184905 (replaces 93183673)
1	Oil pan	93184905
1	Oil pan	55572641 (replaces 55565486)
1	Oil pan	93167072
4	Screw plug	93183669
5	Sealing ring	93183670 (replaces 93178360)
5	O-ring	93183670
6	Baffle plate	93182432
7	Screw	93178505
3	Screw	93178501
3	Screw	93178502
3	Torx screw	93192069
8	Sealing compound	93165267
9	Plate	93178503
10	Screw	93181926 (replaces 93178504)
10	Screw	93181926
11	Screw	93179333
12	Pipe	93182355
13	Sensor, oil lever	93179112
13A	Sensor	93177497
13A	Sensor, oil lever	55568621
13B	Washer	55205860
14	Screw	93181933
14	Hexagon screw	93192592
15	Lock washer	93177798
16	Seal	93183911
16	Gasket	55565957 (replaces 93191741)
17	Dipstick	55200224
17	Dipstick, oil	55565757
18	Oil-level tube	55565753 (replaces 55188281)
18	Guide tube	55565753
19	Plug	11052823
19	Plug	55567113
20	Screw	11900353
21	Guide tube	55210900
22	Oil-level tube	93191743
23	Dipstick, oil	55210903
24	Hexagon screw	93177781 (replaces 93191744)
24	Screw	93177781
