Saab 9-3 (9440) 2005-2010 Oil pan

Group 2 Engine, section 2060

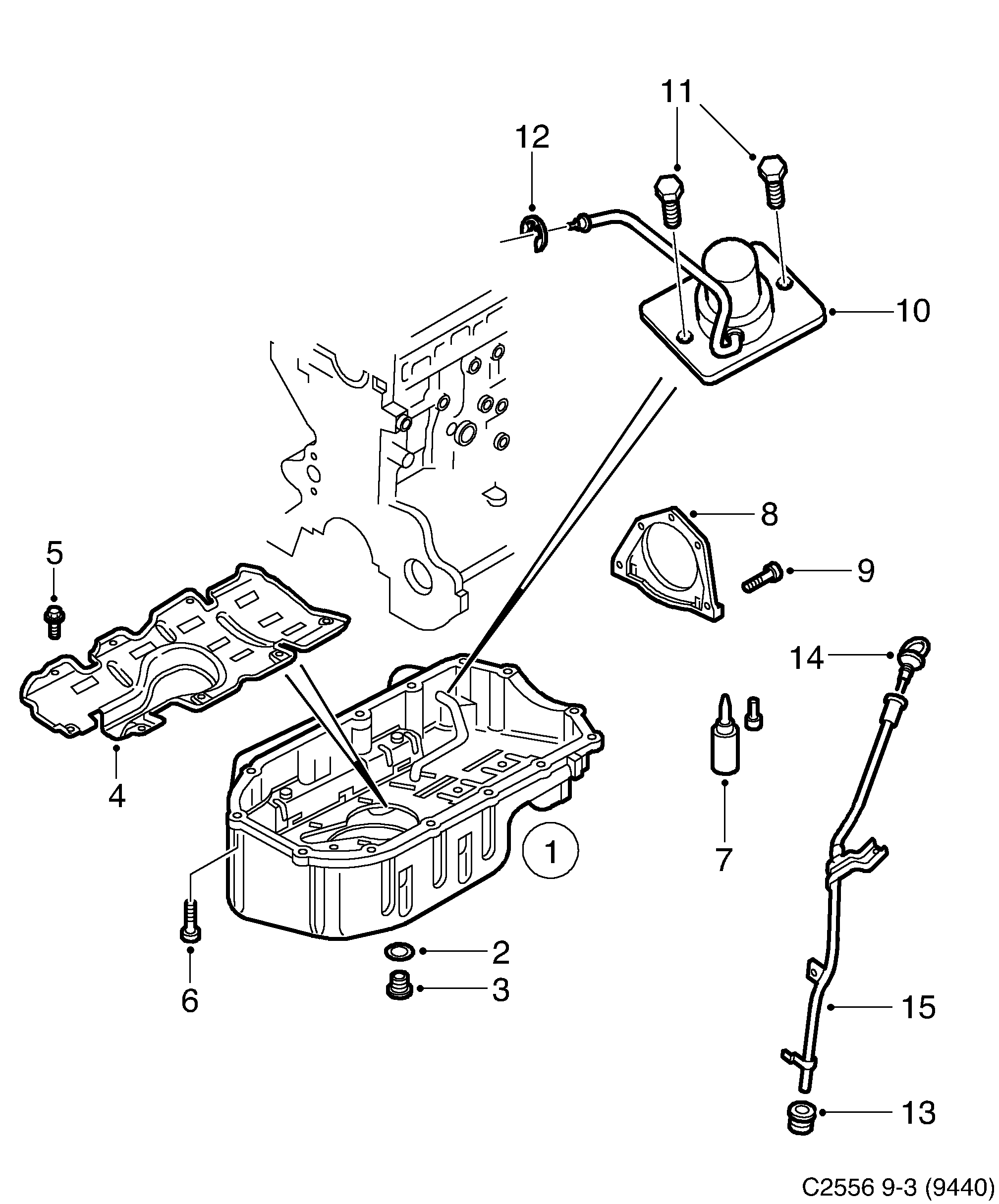

Saab 9-3 (9440) Oil pan diagram

Pos	Article	Part No.
1	Oil pan	55225433 (replaces 93184789)
1	Oil pan	55225433 (replaces 93190434)
1	Oil pan	55225433 (replaces 93192546)
2	O-ring	93183670
3	Screw plug	93183669
4	Baffle plate	93182432
5	Screw	93178505
6	Screw	93178501
6	Screw	93178502
7	Sealing compound	93165267
8	Plate	93178503
9	Screw	93181926 (replaces 93178504)
9	Screw	93181926
10	Sensor, oil lever	93179112
10	Sensor, oil lever	55568621 (replaces 93167074)
11	Screw	93181933
12	Lock washer	93177798
13	Seal	93183911
14	Dipstick	55200224
14	Dipstick, oil	55565757
15	Oil-level tube	55565753 (replaces 55188281)
15	Guide tube	55565753
