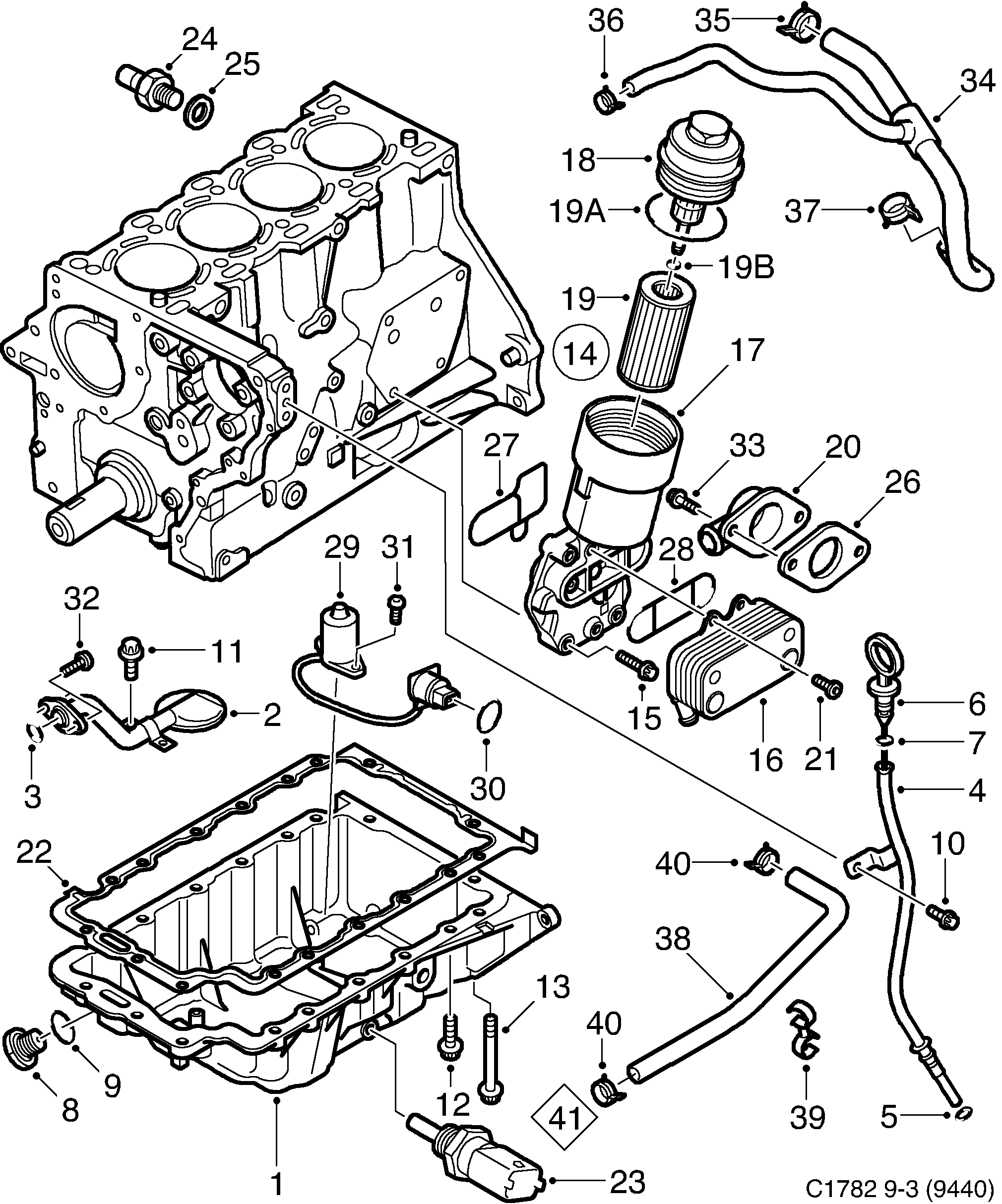

Group 2 Engine, section 2050
| Pos | Article | Part No. |
|---|---|---|
| 1 | Oil pan | 93181952 |
| 2 | Oil pipe | 90502189 |
| 3 | Sealing ring | 90502613 |
| 4 | Oil-level tube | 24452606 |
| 5 | O-ring | 90467275 |
| 6 | Dipstick | 13105614 |
| 7 | O-ring | 90529866 |
| 8 | Screw plug | 96023264 (replaces 90502556) |
| 9 | Sealing ring | 90528145 |
| 10 | Hexagon screw | 11092981 |
| 11 | Screw | 11093971 |
| 12 | Screw | 11094903 |
| 13 | Screw | 11093981 |
| 14 | Filter | 90571672 |
| 15 | Screw | 11096082 |
| 16 | Oil cooler | 9117318 (replaces 90571674) |
| 17 | Filter housing | 9117792 (replaces 9117319) |
| 18 | Cover | 9117320 (replaces 90571724) |
| 19 | Filter insert | 9117321 |
| 19A | O-ring | 90571726 |
| 19B | O-ring | 90571727 |
| 20 | Junction pipe | 90573185 |
| 21 | Screw | 90571729 |
| 22 | Gasket | 90502195 |
| 23 | Engine oil temperature sensor | 9198691 (replaces 24436779) |
| 24 | Engine oil pressure sensor | 90569684 |
| 25 | Sealing ring | 11016282 |
| 26 | Gasket | 9119844 |
| 27 | Gasket | 90571725 |
| 28 | Gasket | 90571728 |
| 29 | Sensor, oil lever | 13105597 |
| 30 | Lock ring | 55565455 (replaces 11094181) |
| 31 | Screw | 11093872 |
| 33 | Screw | 11094891 |
| 34 | Radiator hose | 24461875 |
| 35 | Hose clamp | 90467195 |
| 36 | Hose clamp | 90469888 |
| 37 | Hose clamp | 90467194 |
| 38 | Radiator hose | 24447500 |
| 39 | Hose clamp | 90298796 |
| 40 | Hose clamp | 90530642 (replaces 90572964) |
