Saab 9-3 (9440) 2004-2009 Oil pan, oil filter

Group 2 Engine, section 2025

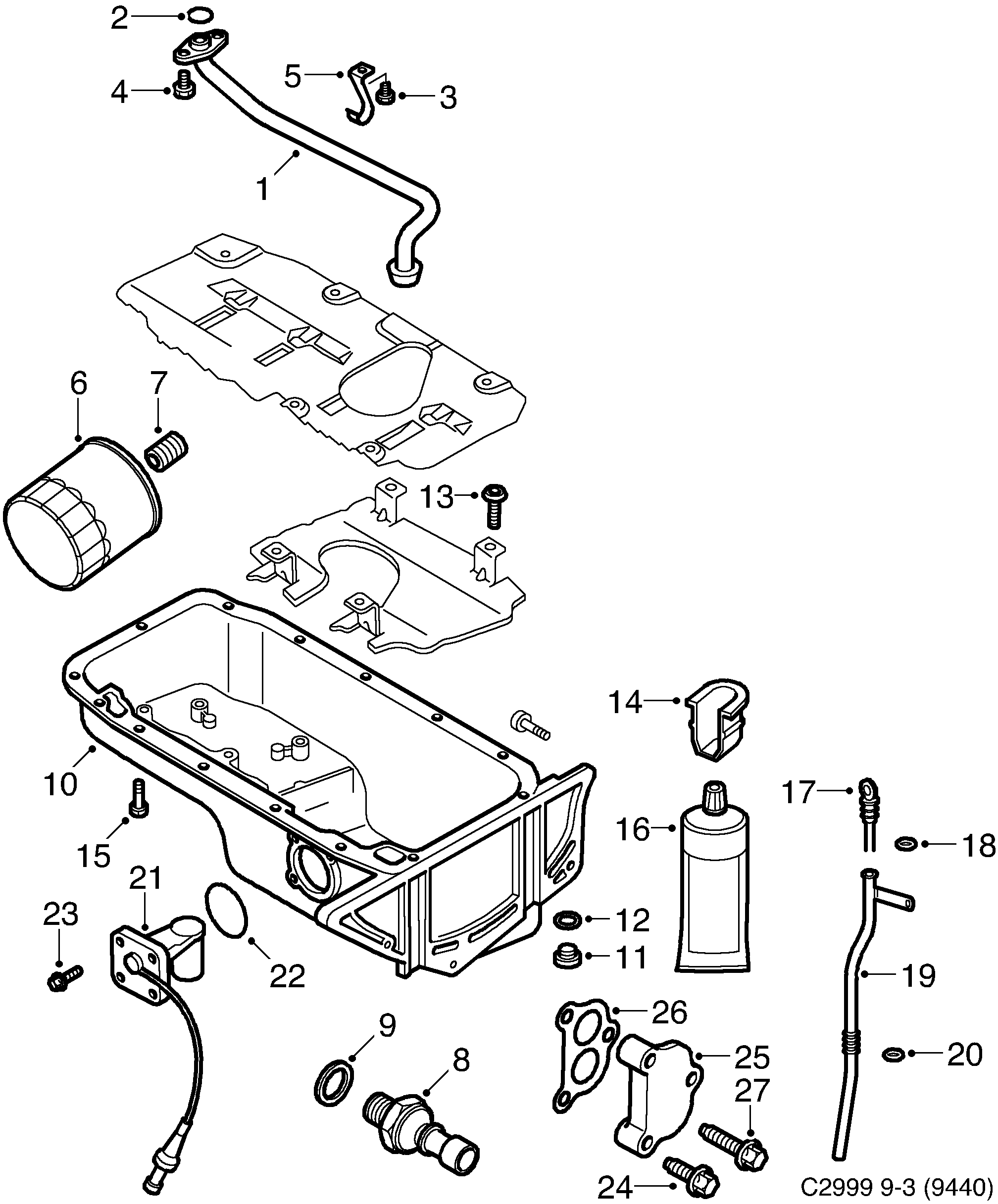

Saab 9-3 (9440) Oil pan, oil filter diagram

Pos	Article	Part No.
1	Oil pipe	9158672
2	Sealing ring	90536405
3	Screw	11045534
4	Screw	11055131
5	Bracket	90536355
6	Filter	93178952 (replaces 93183723)
6	Filter	93178952 (replaces 93185475)
6	Oil filter	93178952
7	Junction pipe	90144360
8	Engine oil pressure sensor	55354378
9	Sealing ring	11016282 (replaces 11016289)
10	Oil pan	55352132
	Oil pan	55352133
11	Screw plug	96023264 (replaces 90502556)
12	Sealing ring	90528145
13	Screw	11093961
14	Plug	90412737
15	Screw	11095001
17	Dipstick	55353736
18	O-ring	90467373
19	Oil-level tube	9158714
20	O-ring	90467275
21	Sensor, oil lever	24445752
22	O-ring	90298310
24	Screw	11093953
25	Cover	9158735
26	Gasket	90536272
26	Gasket	55559396
