Saab 9-3 (9440) 2006-2011 Oil pan, oil filter

Group 2 Engine, section 2010

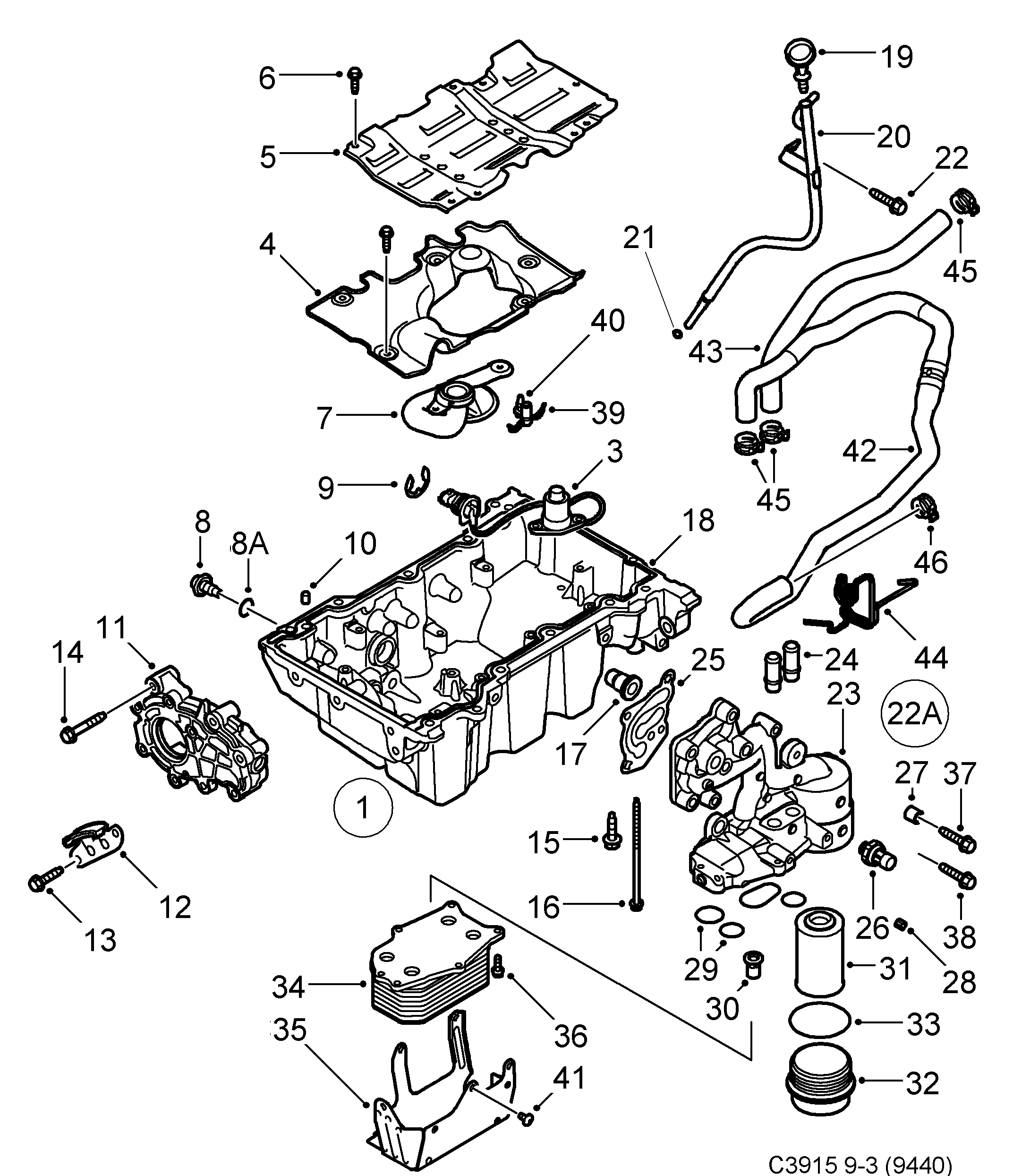

Saab 9-3 (9440) Oil pan, oil filter diagram

Pos	Article	Part No.
1	Oil pan	12620916 (replaces 12602089)
1	Oil pan	12620916 (replaces 12610757)
1	Oil pan	12620916
3	Sensor	12630499 (replaces 12610759)
3	Sensor	12630499
4	Baffle plate	12575362
5	Guard plate	12572089
6	Hexagon screw	11588713
7	Suction pipe	12571135
8	Screw plug	11562588 (replaces 11519408)
8A	O-ring	12616850
8	Screw plug	11562588 (replaces 11518377)
8	Screw plug	11562588
9	Lock ring	55565455 (replaces 11094181)
10	Pin	22531637
11	Oil pump	12590152
12	Guide	12586959
13	Hexagon screw	11588725
14	Hexagon screw	11588729
15	Hexagon screw	11519979
16	Hexagon screw	11588424
17	Lock plug	12565988
18	Sealing compound	93165267
19	Dipstick, oil	12602232
20	Guide tube	12593629
21	O-ring	24504091
22	Screw	11588712
22A	Adapter	12613058 (replaces 12572070)
22A	Adapter	12613058
23	Oil filter housing	12572835
24	Screw joint	12580719
25	Gasket	12591604
26	Oil pressure sensor	12621659
27	Spacer	3522415
28	Sleeve	11588327
29	Gasket kit	12634385 (replaces 93186306)
29	Gasket kit	12634385
30	Valve	25013759
31	Filter insert	93186310
33	O-ring	12577653
32	Cover	12583470
34	Oil cooler	12572837
35	Shield	12580718
36	Hexagon screw	11589084
37	Hexagon screw	11588726
38	Hexagon screw	11519170
39	Nozzle	12610143
41	Hexagon screw	92138940
42	Hose	12758837
43	Hose	55353821
44	Clip	12758838
45	Hose clamp	90572590
46	Hose clamp	90572592
	Clip	90571650
