Saab 9-3 (9440) 2003-2005 Oil pan, oil filter

Group 2 Engine, section 2000

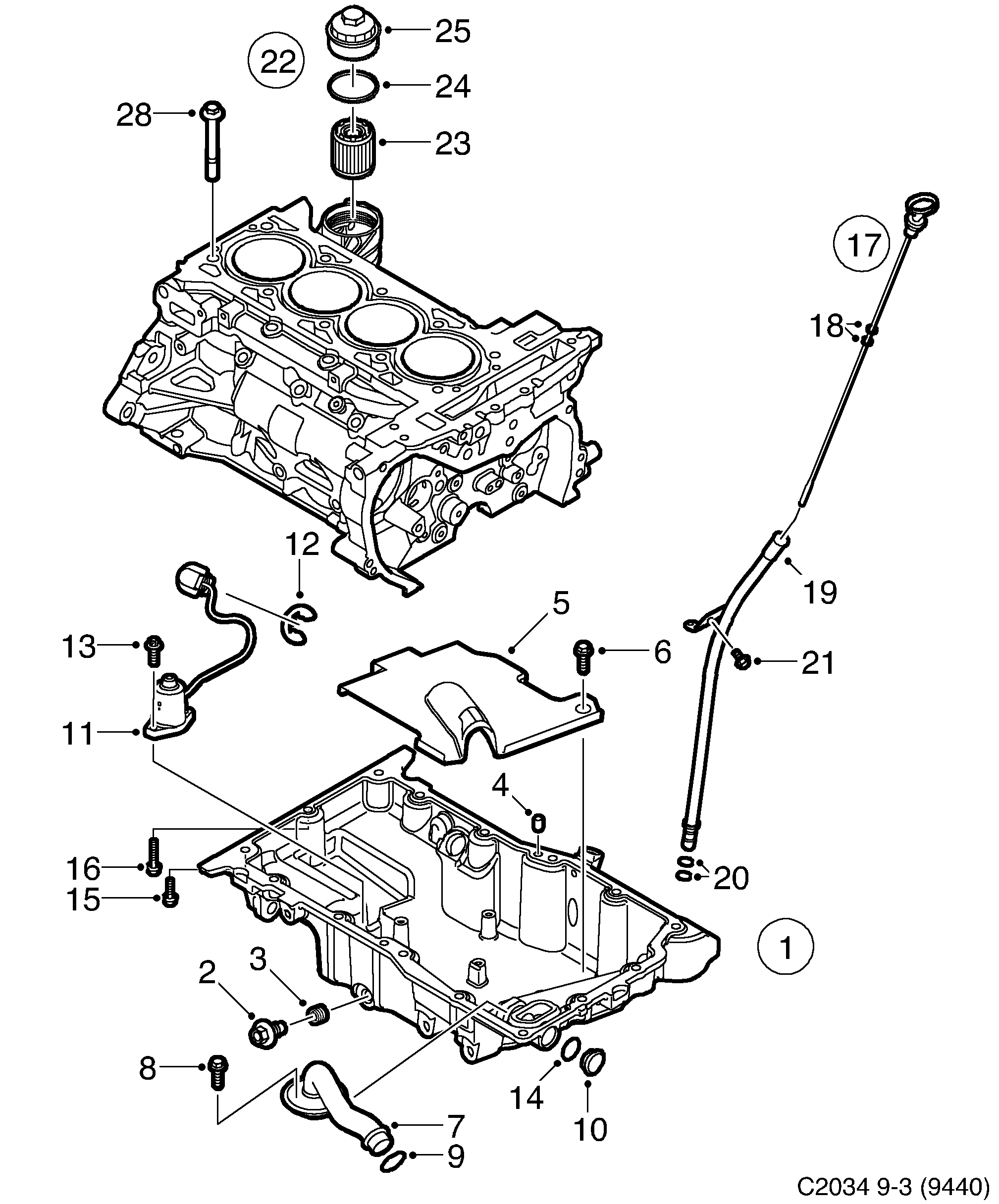

Saab 9-3 (9440) Oil pan, oil filter diagram

Pos	Article	Part No.
1	Oil pan	55558814 (replaces 12787808)
2	Plug	11519933
3	Gasket	3536966
4	Pin	22531637
5	Baffle plate	12787810
6	Screw	92150250
7	Oil pipe	12787811
8	Screw	92150370
9	O-ring	90537413
10	Plug	11052823
11	Sensor, oil lever	24461500 (replaces 55353799)
12	Lock ring	55565455 (replaces 11094181)
13	Screw	92150252
15	Screw	11518049
16	Screw	11518058
17	Dipstick	12788545
18	O-ring	90529866
19	Oil-level tube	12787978
20	O-ring	90467275
21	Hexagon screw	11900161
22	Oil filter kit	12575810
23	Filter insert	12605566 (replaces 24460713)
24	Sealing ring	12580255 (replaces 90537437)
22	Oil filter kit	12605565 (replaces 12579144)
23	Filter insert	12605566 (replaces 12579143)
