Saab 9-3 (9440) 2003-2011 Cylinder head

Group 2 Engine, section 200

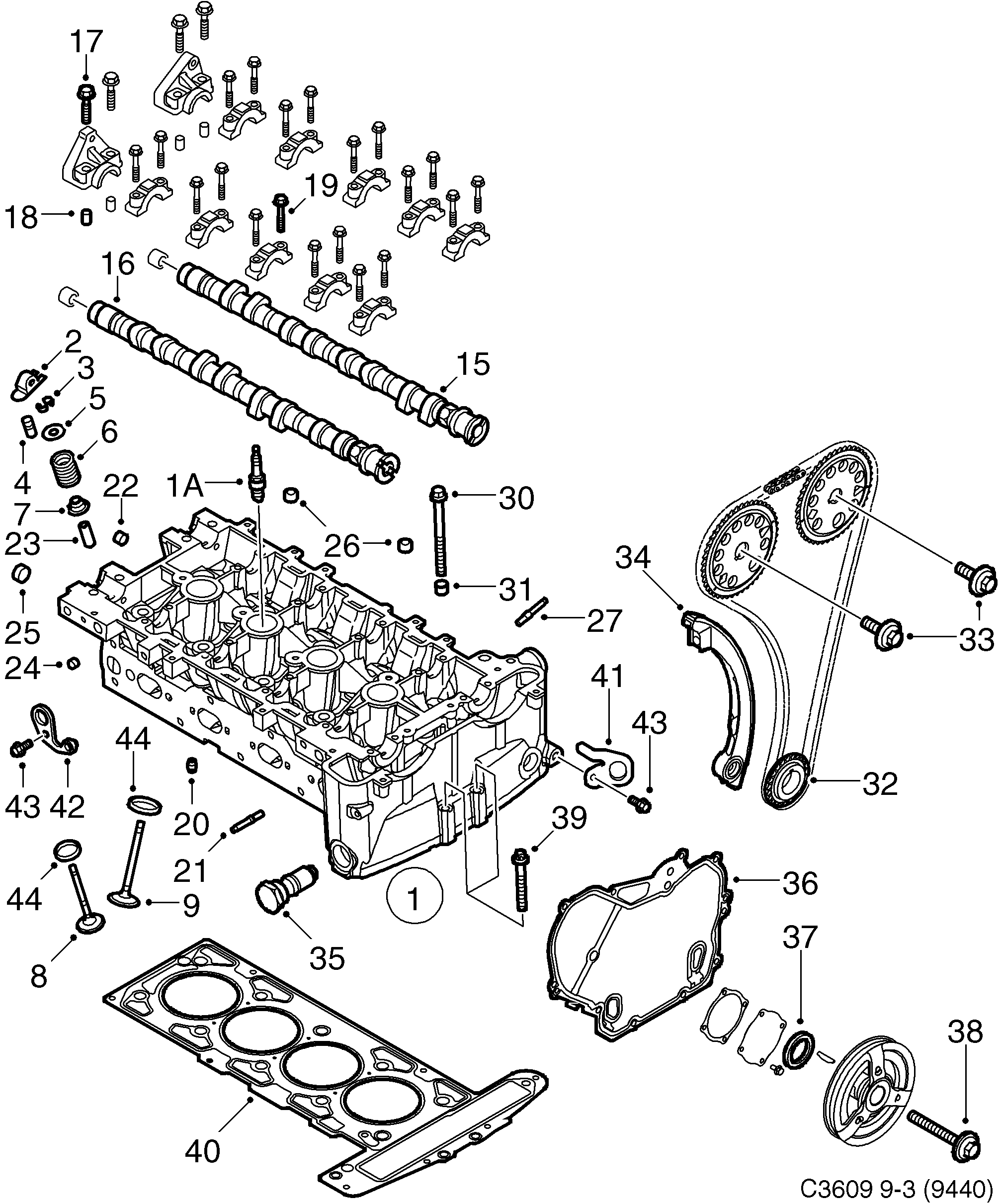

Saab 9-3 (9440) Cylinder head diagram

Pos	Article	Part No.
1	Cylinder head	55558810
1	Cylinder head	55560710
1	Cylinder head	55558811
1	Cylinder head	55560711
1	Cylinder head	55564804
1	Cylinder head	12632082
1A	Spark plug	55571391 (replaces 12787099)
1A	Spark plug	55571391
1A	Spark plug	55564215
2	Rocker arm	12565203 (replaces 24100004)
2	Rocker arm	12565203
3	Valve cone	90354648
4	Valve lifter	9194698
5	Washer	90537243
6	Spring	90537032
7	Seal	90537241
8	Exhaust valve	12791961
8	Exhaust valve	12597371
9	Inlet valve	12786696
9	Inlet valve	55192156
9	Inlet valve	55563529
15	Camshaft	12755158
15	Camshaft	55560715
15	Camshaft	12792364
15	Camshaft	55560718
16	Camshaft	12755160
16	Camshaft	55560716
16	Camshaft	12788844
16	Camshaft	55560717
17	Screw	11518051
18	Guide sleeve	90537104
19	Torx screw	11588991
20	Oil jet	90537983
21	Stud	24418771
22	Plug	93181746 (replaces 11101961)
22	Screw plug	93181746
22	Plug	11101962
23	Valve guide	90537248
23	Valve guide	24406570
24	Plug	11101951
24	Screw plug	11095512
25	Plug	55561057 (replaces 12791923)
25	Screw plug	55561057
26	Plug	11101971
27	Stud	11518074
30	Screw	90537691
31	Guide sleeve	90537102
32	Chain gear	24424758
33	Screw	90537451
34	Chain guide	24449448
35	Chain tensioner	12608580
35	Chain tensioner	12608580 (replaces 55352127)
36	Gasket	24435052
37	Seal	90571925
38	Screw	11589123 (replaces 90537363)
38	Hexagon screw	11589123
39	Screw	11589328 (replaces 24407225)
39	Screw	11589328
40	Gasket	93175913
41	Lifting eye	12795716
42	Lifting eye	12789327
43	Screw	92152205
44	Valve seat ring	55556421
44	Valve seat ring	55556420
