Saab 9-3 (9440) 2005-2011 Engine suspension

Group 2 Engine, section 175

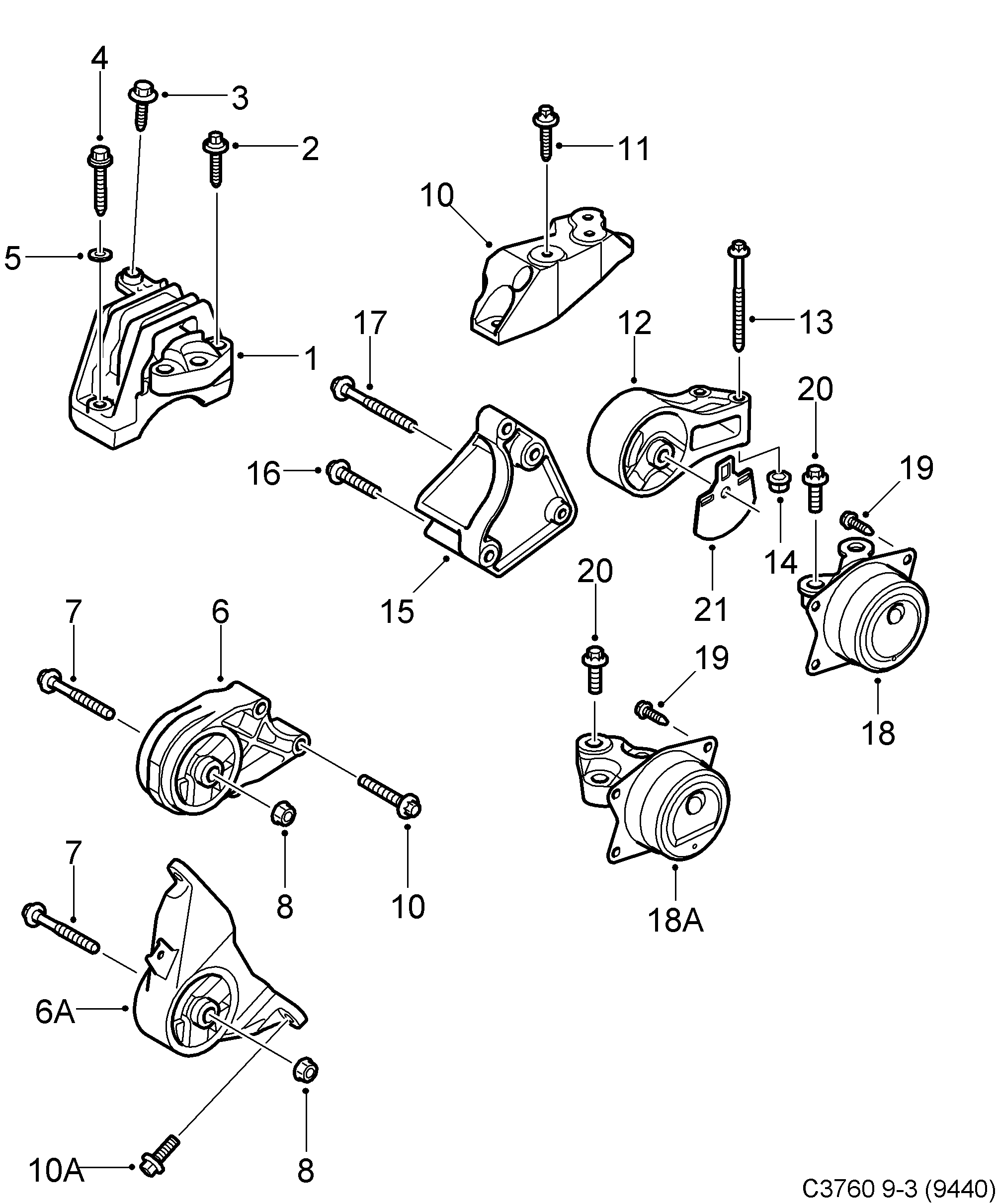

Saab 9-3 (9440) Engine suspension diagram

Pos	Article	Part No.
1	Vibration damper	12802783
1	Vibration damper	12766011
2	Hexagon screw	9223092
3	Hexagon screw	92152199
4	Hexagon screw	92152138
4	Screw	93169392
5	Washer	93169393
6	Engine mountings	13112026
6A	Engine mountings	13112029
7	Hexagon screw	11102231
8	Flange nut	11094464
9	Hexagon screw	11101141
9A	Screw	11101521
10	Engine bracket	13112024
12	Engine mountings	9156933
13	Screw	11102251
14	Hexagon nut	90576769 (replaces 11095804)
15	Engine bracket	13112030
15	Engine bracket	24459821
16	Hexagon screw	11099201
17	Screw	11102241
18	Vibration damper	13207585 (replaces 13166642)
18	Bushing	13207585 (replaces 13191586)
18	Hydro bushing	13207585
18A	Vibration damper	13207584 (replaces 13112023)
18A	Hydro bushing	13207584
19	Hexagon screw	92152134
21	Heat shield	9156952
21	Heat shield	12783880
