Saab 9-3 (9440) 2006-2011 Engine suspension

Group 2 Engine, section 110

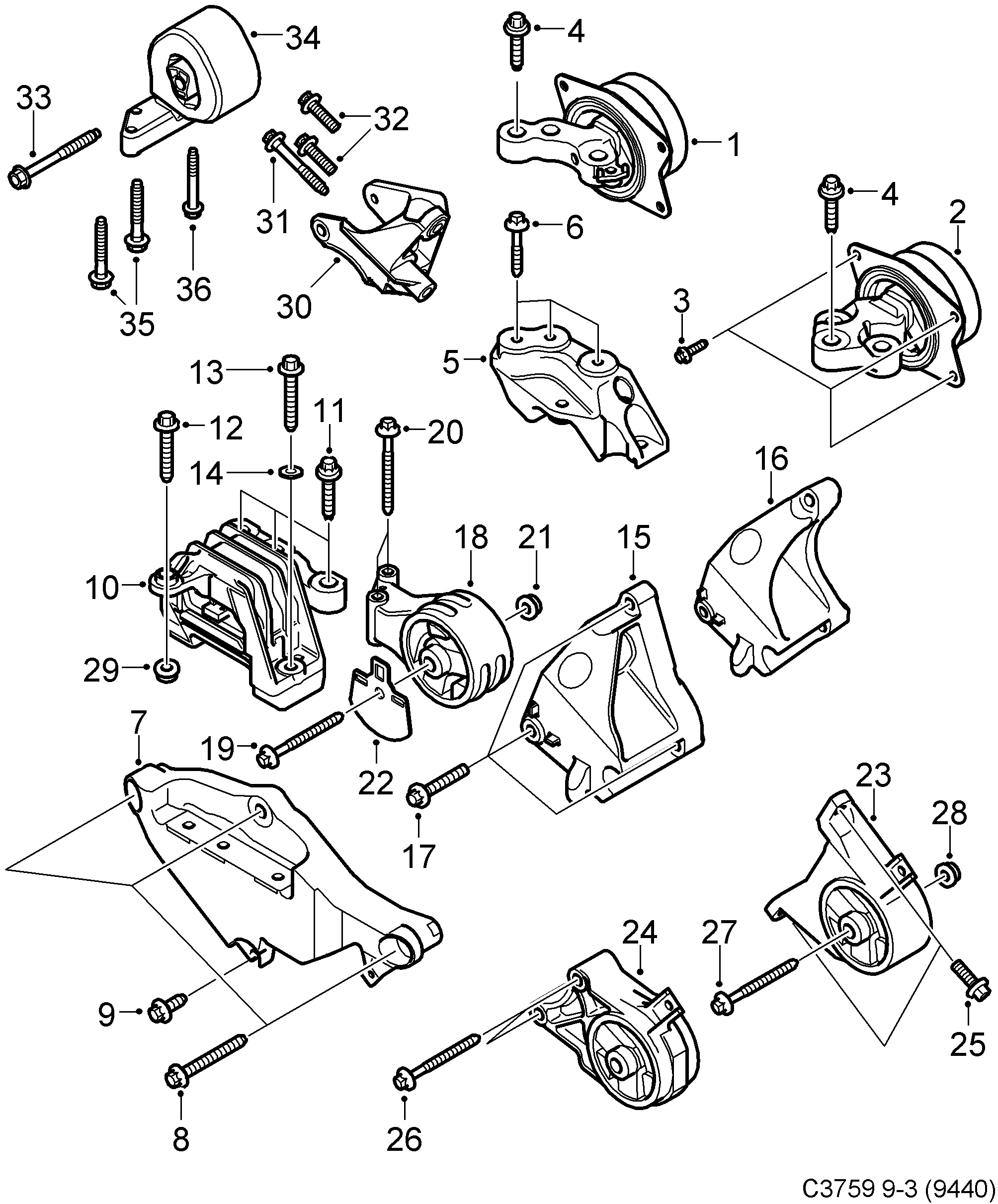

Saab 9-3 (9440) Engine suspension diagram

Pos	Article	Part No.
1	Hydro bushing	12759477
2	Hydro bushing	13191542
3	Hexagon screw	92152134
4	Hexagon screw	9223092
5	Attachment bracket	24436450
5	Bracket	12777976
6	Screw	11101131
7	Bracket	13178659
8	Hexagon screw	11900208
9	Hexagon screw	11900186
10	Bracket	13183099
12	Hexagon screw	92152199
13	Hexagon screw	92152138
13	Screw	93169392
14	Washer	93169393
15	Engine bracket	24459821
16	Attachment bracket	9191126
17	Hexagon screw	11099201
18	Torque rod	9156932
19	Screw	11102241
20	Screw	11102251
21	Nut	90576769
22	Heat shield	9156952
23	Engine bracket	13191539
23	Bushing	12777977
24	Bushing	9156939
25	Screw	11101521
26	Hexagon screw	11101141
27	Screw	13198721
28	Flange nut	11094464
29	Nut	11900441
30	Mounting bracket	12777975
34	Vibration damper	12777974
35	Hexagon screw	11609598
36	Hexagon screw	11588748
