Saab 9-3 (9440) 2003-2011 Engine suspension

Group 2 Engine, section 100

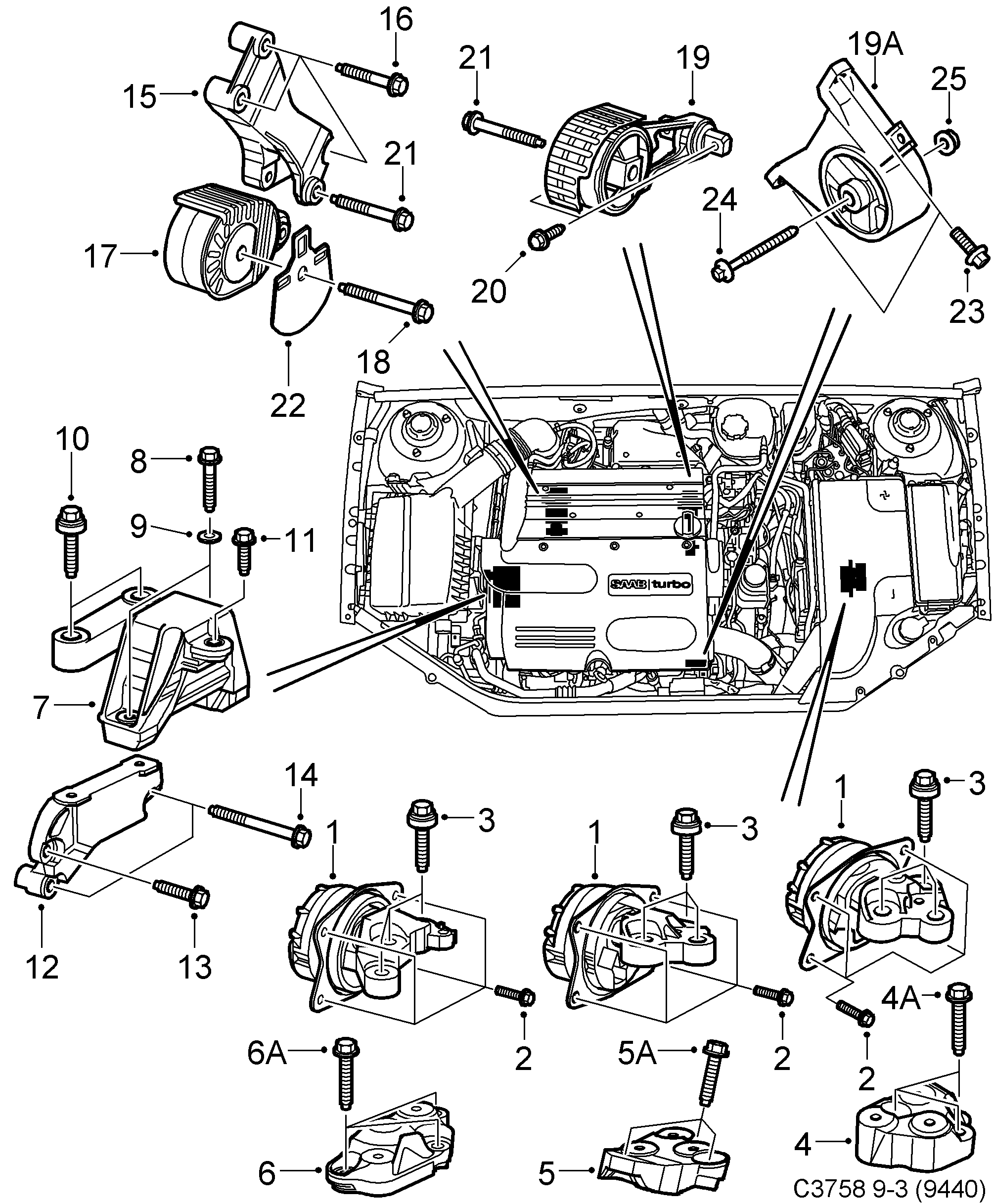

Saab 9-3 (9440) Engine suspension diagram

Pos	Article	Part No.
1	Vibration damper	12785084
1	Hydro bushing	13207586
1	Vibration damper	12789101
1	Bushing	13207585 (replaces 13191586)
1	Mounting bracket	12759478
1	Bushing	13207582 (replaces 13191587)
1	Hydro bushing	13207582
1	Hydro bushing	13191542
2	Hexagon screw	92152134
3	Hexagon screw	9223092 (replaces 92152200)
4	Engine bracket	12785088
4	Attachment bracket	9191150
4A	Hexagon screw	92152137
4A	Screw	11101322
4A	Screw	11101131
5	Engine bracket	12789102
5	Attachment bracket	24436450
5	Bracket	12777976
5A	Hexagon screw	11900202
6	Engine bracket	12785089
6	Attachment bracket	9191129
7	Vibration damper	12785090
7	Vibration damper	12783141
7	Vibration damper	12756361
8	Hexagon screw	92152138
8	Screw	93169392
9	Washer	93169393
10	Hexagon screw	93169392 (replaces 92152201)
10	Hexagon screw	9223092
11	Hexagon screw	92152199
12	Engine bracket	12785093
12	Bracket	9156953
14	Hexagon screw	11589278 (replaces 92152140)
14	Torx screw	11101151
15	Engine bracket	12785102
15	Attachment bracket	9191148
15	Engine bracket	12785103
15	Attachment bracket	9191126
16	Hexagon screw	11099201
17	Torque rod	12785099
17	Torque rod	9156932
18	Hexagon screw	11900209
19	Torque rod	12785096
19A	Bushing	9156939
19A	Bushing	12777977
19A	Bushing	9184404
19A	Engine mountings	13112029
20	Hexagon screw	92153206 (replaces 92150029)
21	Hexagon screw	11900208
22	Heat shield	9156952
23	Screw	11101521
23	Hexagon screw	11101141
24	Screw	13198721
25	Flange nut	11094464
