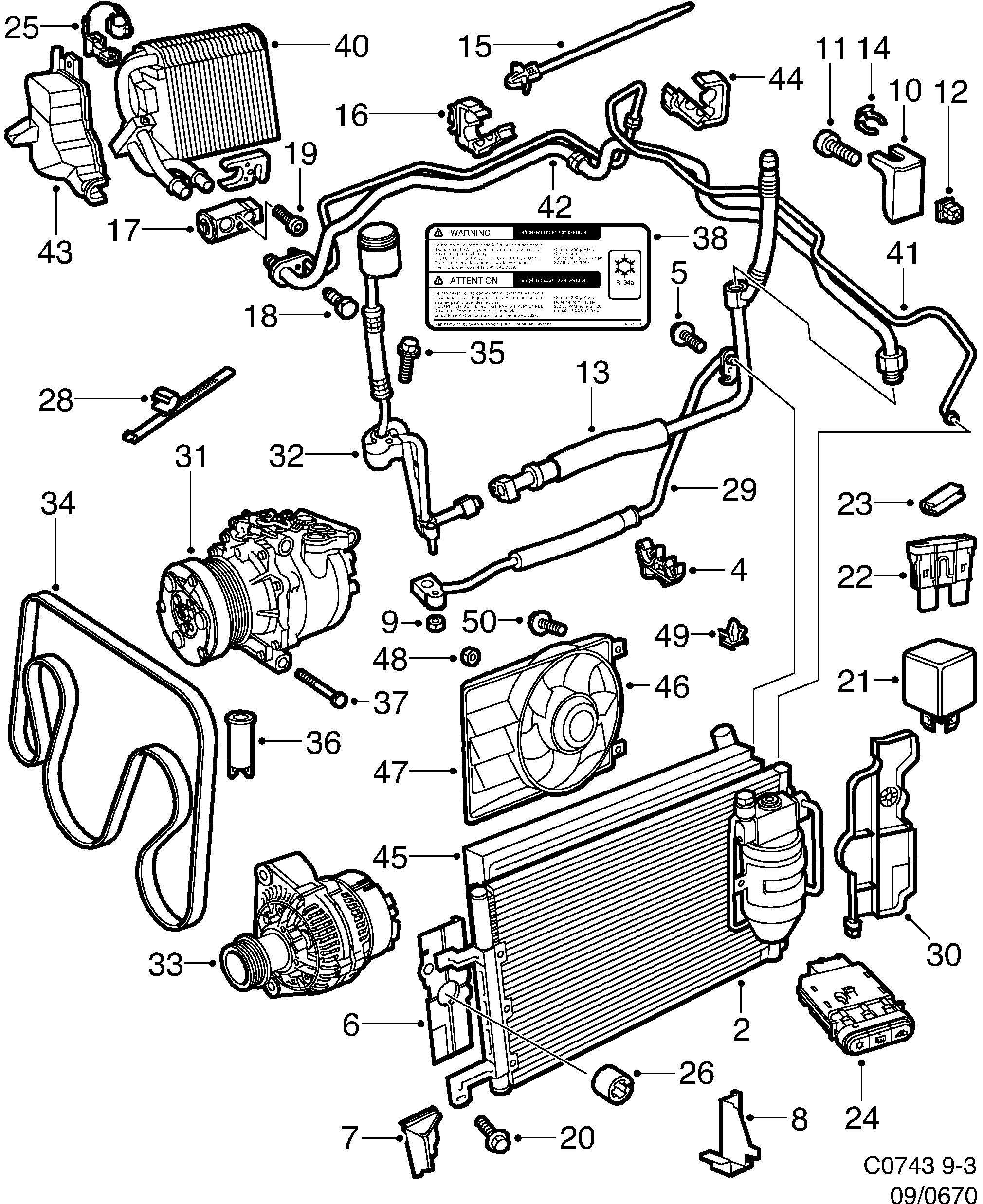

Group 9 Accessories, section 670
| Pos | Article | Part No. |
|---|---|---|
| Basic kit, air conditioning | 400110623 | |
| Basic kit, air conditioning | 400126686 | |
| 2 | Condenser | 4758637 |
| 4 | Fastener | 5045950 (replaces 4365136) |
| 4 | Fastener | 5045950 |
| 5 | Screw | 7978174 |
| 6 | Air shield | 4729463 |
| 7 | Air shield | 4728937 |
| 7 | Air shield | 4728945 |
| 8 | Cover | 4868014 |
| 8 | Cover | 4868006 |
| 9 | Nut | 11900451 (replaces 7977929) |
| 10 | Bracket | 4335543 |
| 11 | Screw | 7922370 |
| 12 | Press nut | 92150170 (replaces 7982929) |
| 13 | Hose | 4365375 |
| 13 | Hose | 5045968 |
| 14 | Lock ring | 7533136 |
| 15 | Tie strap | 9528019 |
| 16 | Clip | 4365110 |
| 17 | Expansion valve | 4758686 |
| 18 | Screw | 11900355 (replaces 7978117) |
| 19 | Screw | 8097800 |
| 20 | Screw | 92153149 (replaces 7977465) |
| 21 | Relay | 8533176 |
| 22 | Fuse | 7974645 |
| 22 | Fuse | 7974678 |
| 23 | Edge protection moulding | 4867008 |
| 24 | Button kit | 4868444 |
| 25 | Thermo contact | 5045745 (replaces 4759999) |
| 25 | Thermo contact | 5045745 |
| 26 | Tube clamp | 8965097 |
| Supplementary kit, compressor | 400126553 | |
| Supplementary kit, compressor | 400126702 | |
| Supplementary kit, compressor | 400110631 | |
| Supplementary kit, compressor | 400126694 | |
| Supplementary kit, compressor | 400110649 | |
| 28 | Clip | 4940359 |
| 29 | Hose | 4759544 |
| 29 | Hose | 4868568 |
| 30 | Air shield | 4729455 |
| 31 | Compressor | 4635892 |
| 31 | Compressor | 91163105 (replaces 4634507) |
| 32 | Tube | 5046354 |
| 32 | Tube | 5046966 (replaces 5045901) |
| 32 | Hose | 4634523 |
| 33 | Generator | 5601307 (replaces 4941761) |
| 34 | Belt | 93185050 (replaces 4961066) |
| 34 | Belt | 93185050 |
| 34 | Belt | 24452030 (replaces 4575528) |
| 35 | Screw | 7978232 |
| 35 | Screw | 92153206 (replaces 7978307) |
| 36 | Connector housing | 9503426 |
| 37 | Screw | 7985922 |
| 37 | Hexagon screw | 7982960 |
| 38 | Label | 5329701 (replaces 4634945) |
| 38 | Label | 5329701 (replaces 5046305) |
| 38 | Label | 5325832 (replaces 4634556) |
| Radiator | 4729588 | |
| Diode | 5101761 | |
| Supplementary kit, evaporator | 400110870 | |
| Supplementary kit, evaporator | 400110888 | |
| 40 | Evaporator | 5047931 (replaces 7495781) |
| 40 | Evaporator | 5047949 (replaces 7495799) |
| 41 | Tube | 4868352 |
| 41 | Tube | 4868378 |
| 42 | Tube | 4759528 |
| 42 | Tube | 4759569 |
| 43 | Cover | 7495963 |
| 43 | Cover | 7495971 |
| 44 | Clip | 4365128 |
| Supplementary kit, radiator | 400101531 | |
| 45 | Radiator | 4729562 |
| 46 | Fan unit | 4396248 |
| 47 | Fan shroud | 4962924 (replaces 4237046) |
| 47 | Fan shroud | 4962924 |
| 48 | Nut | 92153044 (replaces 7974298) |
| 49 | Clip | 4176095 |
