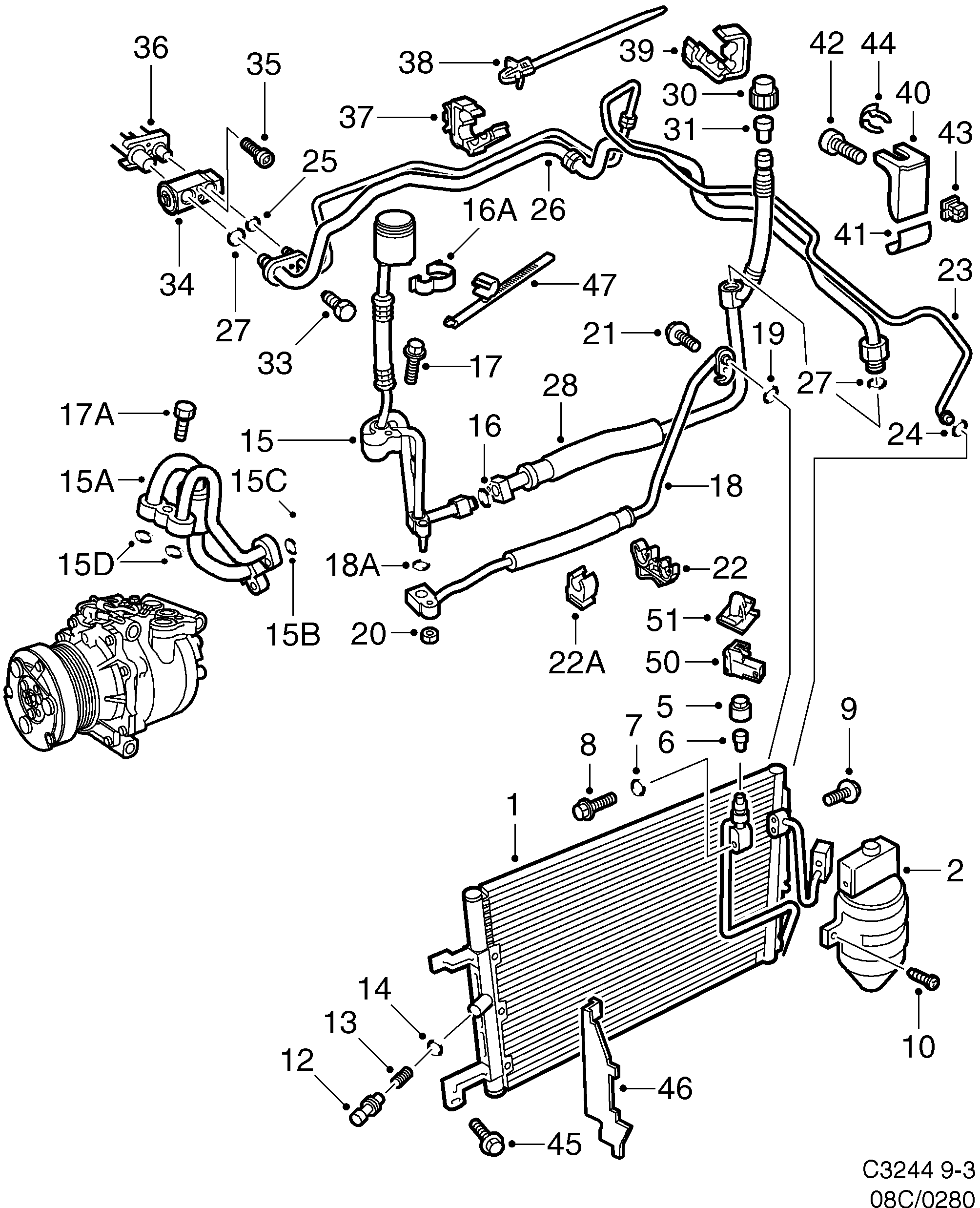

Saab 9-3 (9400) 1998-2003 AC condenser

Group 8c Heating and ventilation, section 280

Pos	Article	Part No.
1	Condenser	4758637
2	Reservoir	4868949
5	Plug	4383956
6	Valve	4542353
7	O-ring	4542346
8	Screw	4542320
9	Screw	4542338
10	Screw	4542361
12	Charge Air Absolute Pressure Sensor	4868360
13	Valve	4759056
14	O-ring	4759064
15	Hose	4868568 (replaces 4759114)
15	Hose	5046354 (replaces 4868550)
15	Tube	5046354
15	Tube	5046966
16	O-ring	4757092
16A	Spacer clip	4869194
15A	Hose	4868576
15C	O-ring	4756599
15D	Sealing washer	4759577
17	Screw	7978232
17A	Screw	92153206 (replaces 7978307)
18	Hose	4759544
18	Hose	4868568
19	O-ring	4757084
20	Nut	11900451 (replaces 7977929)
21	Screw	7978174
22	Fastener	5045950 (replaces 4365136)
22A	Fastener	5045950
23	Tube	4868352
23	Tube	4868378
24	O-ring	30541940 (replaces 4318028)
25	O-ring	4757076
26	Tube	4759528
26	Tube	4759569
27	O-ring	30541943 (replaces 4318051)
28	Hose	4365375
28	Hose	5045968 (replaces 4868543)
28	Hose	5045968
30	Plug	4367074
31	Valve	4367991
33	Screw	11900355 (replaces 7978117)
34	Expansion valve	4758686
35	Screw	8097800
37	Clip	4365110
38	Tie strap	9528019
38	Tie strap	8552663
39	Clip	4365128
40	Bracket	4335543
41	Wear protection	7268972
42	Screw	7922370
43	Press nut	92150170 (replaces 7982929)
44	Lock ring	7533136
45	Screw	92153149 (replaces 7977465)
46	Cover	4868014
46	Cover	4868006
47	Clip	4940359
50	Diode	5101761
51	Clip	4176095
	Edge protection moulding	4867008
	Edge protection moulding	4867016
