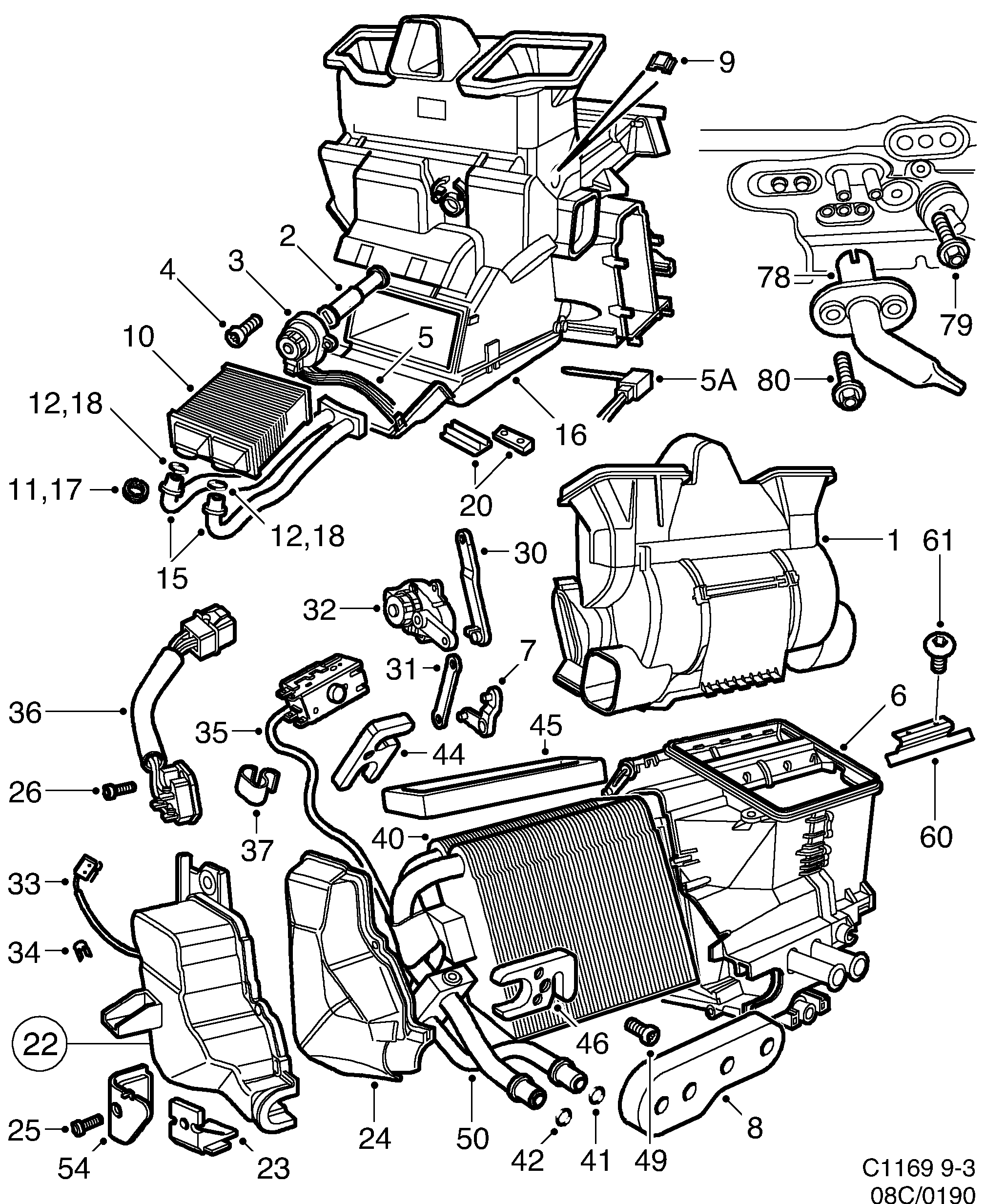

Group 8c Heating and ventilation, section 190
| Pos | Article | Part No. |
|---|---|---|
| 1 | Distribution housing | 5330501 (replaces 4759726) |
| 1 | Distribution housing | 5330501 |
| 2 | Control shaft | 4364279 |
| 3 | Electrical motor | 5333919 (replaces 4365474) |
| 3 | Electrical motor | 5333919 |
| 4 | Screw | 7971393 |
| 5 | Cable harness | 4366555 |
| 5 | Cable harness | 5045844 |
| 5A | Sensor | 9482597 |
| 5A | Sensor | 5045851 |
| 6 | Heat exchanger housing | 4758827 |
| 6 | Heat exchanger housing | 4758835 |
| 7 | Lever | 4542239 |
| 7 | Lever | 4366886 |
| 8 | Seal | 4634226 |
| 9 | Clamp | 9625989 |
| 10 | Heat exchanger | 7495625 |
| 11 | Snap-on coupling | 4755369 |
| 12 | O-ring | 4755377 |
| Insulation | 4635876 | |
| 15 | Tube | 7495609 |
| 15 | Tube | 7495617 |
| 15 | Tube | 7495641 |
| 15 | Tube | 7495633 |
| 16 | Oil pan | 4755443 |
| 16 | Oil pan | 4755450 |
| 20 | Kit | 4542999 |
| 22 | Cover | 5334784 |
| 22 | Cover | 5334792 |
| 22 | Cover | 5334800 |
| 22 | Cover | 5334818 |
| 23 | Bracket | 4868311 |
| 24 | Seal | 4867958 |
| 24 | Seal | 4867941 |
| 25 | Screw | 4541132 |
| 26 | Screw | 8059305 |
| 30 | Link arm | 4366498 |
| 30 | Link arm | 4366837 |
| 31 | Link arm | 4634978 |
| 32 | Electrical motor | 4365466 |
| Bracket | 4635884 | |
| Pivot arm | 4635900 | |
| 33 | Microswitch | 4867198 |
| 34 | Clamp | 7156409 |
| 35 | Thermo contact | 5045745 |
| 36 | Regulator | 5045158 |
| 37 | Clamp | 9629197 |
| 40 | Evaporator | 5047931 (replaces 7495781) |
| 40 | Evaporator | 5047931 |
| 40 | Evaporator | 5047949 (replaces 7495799) |
| 40 | Evaporator | 5047949 |
| 41 | O-ring | 30541941 (replaces 4318036) |
| 42 | O-ring | 4318044 |
| 44 | Tensioning plate | 4366530 |
| 45 | Seal | 4635918 |
| 46 | Tensioning plate | 4366738 |
| 49 | Screw | 8059446 |
| 50 | Tube | 4632808 |
| 50 | Tube | 4366860 |
| 54 | Cover | 4367900 |
| 54 | Cover | 4367934 |
| 60 | Air deflector | 5330600 |
| 61 | Screw | 5333562 |
| 78 | Water drain | 4632972 |
| 79 | Screw | 12773338 (replaces 4364626) |
| 80 | Screw | 4759361 |
| Thermo contact | 5048566 | |
| Thermo contact | 4759890 | |
| Adhesive | 5048889 | |
| Cable harness | 4635637 |
