Saab 9-3 (9400) 1998-2003 Seat Electrically adjustable

Group 8b Car body, internal, section 490

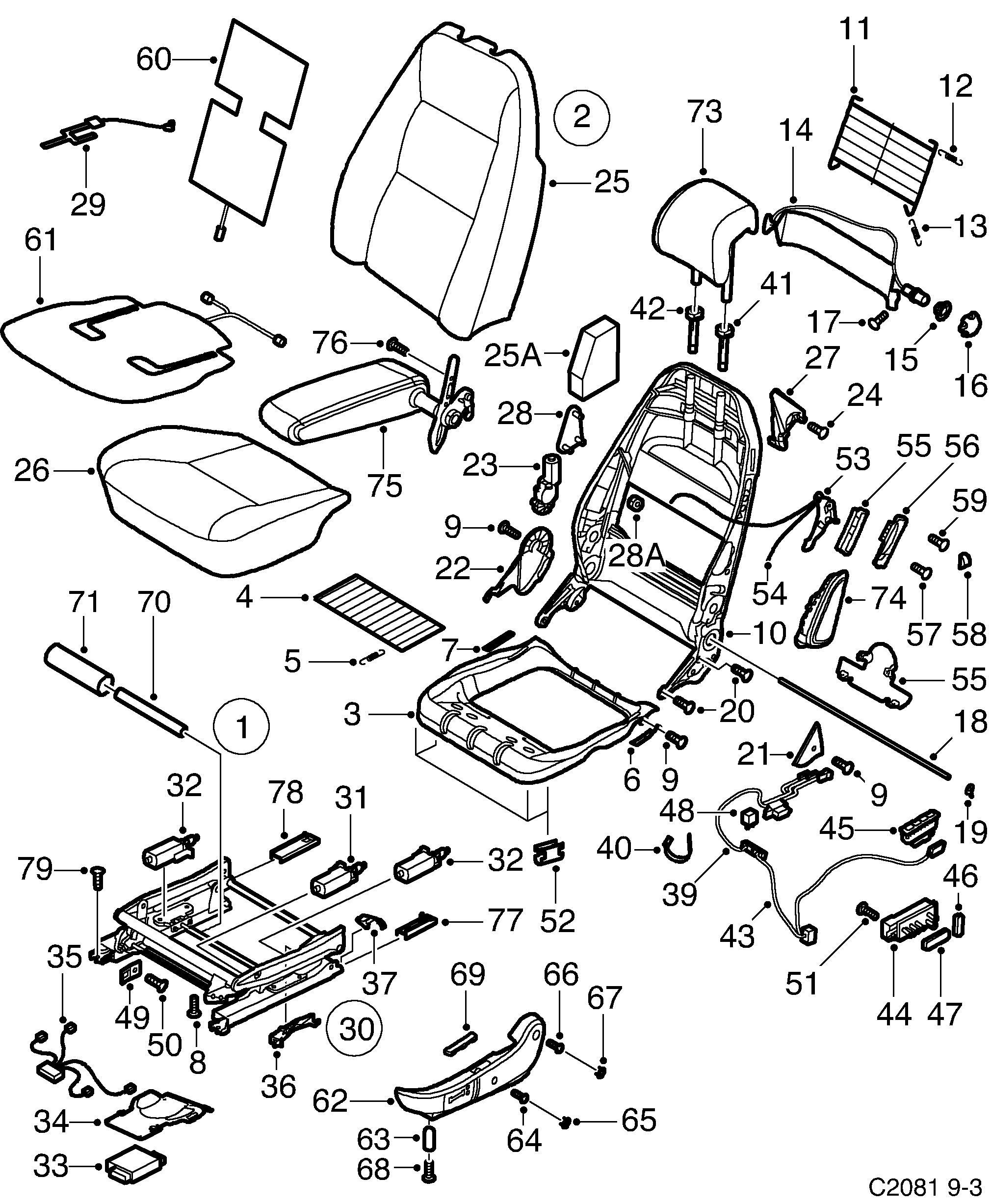

Saab 9-3 (9400) Seat Electrically adjustable diagram

Pos	Article	Part No.
1	Seat	4369344
1	Seat	4369351
1	Seat	4369385
1	Seat	4369393
1	Seat	4369369
1	Seat	4369377
1	Seat	4369401
1	Seat	4369419
2	Framework	5099254
2	Framework	5123815
2	Framework	5008966
2	Framework	5009220
2	Framework	5024831
2	Framework	5008982
2	Framework	5009246
2	Framework	5096813
2	Framework	5008990
2	Framework	5009253
2	Framework	5024872
2	Framework	5009006
2	Framework	5009261
2	Framework	5096805
2	Framework	5009014
2	Framework	5009279
2	Framework	5024823
2	Framework	5099270
2	Framework	5123849
2	Framework	5008974
2	Framework	5009238
2	Framework	5024815
2	Framework	5099247
2	Framework	5123872
2	Framework	5008909
2	Framework	5004387
2	Framework	5082110
2	Framework	5008925
2	Framework	5004429
2	Framework	5096797
2	Framework	5008933
2	Framework	5004395
2	Framework	5082128
2	Framework	5008941
2	Framework	5004437
2	Framework	5096789
2	Framework	5008958
2	Framework	5004403
2	Framework	5082102
2	Framework	5099262
2	Framework	5123906
2	Framework	5008917
2	Framework	5004411
2	Framework	5082094
3	Seat pan	4658589
4	Wire matting	4654463
5	Spring	4654471
6	Spacer	4654448
7	Spacer	4654455
8	Screw	4496626
9	Screw	4802229
10	Backrest frame	5008040
10	Backrest frame	4935441
11	Wire matting	4887246
12	Spring	5032347
13	Spring	5007158
14	Lumbar support	4654398
14	Lumbar support	4657136
15	Cover ring	4658316
16	Control knob	4938189
17	Screw	4462206
18	Shaft	4657185
19	Clamping ring	90568321 (replaces 4347928)
19	Clamping ring	90568321
20	Screw	4798906
21	Protecting casing	4845897
21	Protecting casing	4845889
22	Cover	30583169 (replaces 4937975)
22	Cover	30583169 (replaces 5171095)
22	Cover	30583170 (replaces 4937983)
22	Cover	30583170 (replaces 5171103)
23	Electrical motor	5001110
23	Electrical motor	5001144
23	Electrical motor	4657235
23	Electrical motor	4657243
23	Electrical motor	4657193
23	Electrical motor	4657201
24	Screw	7922396
25	Foam plastic cushion	4801999
25	Foam plastic cushion	4802013
25	Foam plastic cushion	5120795
25A	Foam plastic insert	5004841
25A	Foam plastic insert	5004858
26	Foam plastic cushion	5004817
26	Foam plastic cushion	4802021
26	Foam plastic cushion	5120811
27	Slide protection	5033998
27	Slide protection	5034418
28	Bracket	5034475
28A	Nut	92153043 (replaces 7975576)
29	Switch	12760542 (replaces 4654984)
30	Seat chassis	5001052
30	Seat chassis	5001086
30	Seat chassis	5001078
30	Seat chassis	5001060
31	Electrical motor	4658498
31	Electrical motor	5005855
31	Electrical motor	4658464
31	Electrical motor	5005830
32	Electrical motor	4658506
32	Electrical motor	5005863
32	Electrical motor	4658472
32	Electrical motor	5005848
33	Electronic unit	4658480
34	Bracket	32000207 (replaces 4800439)
34	Bracket	32000212 (replaces 4801296)
35	Cable harness	5007208
35	Cable harness	5007224
35	Cable harness	5007190
35	Cable harness	5007216
36	Cover	4930699
36	Cover	4930707
37	Cover	5005814
37	Cover	5005822
39	Cable harness	4846861
39	Cable harness	4846853
40	Tie strap	7971872
41	Sleeve	30569537 (replaces 4800058)
42	Sleeve	30569536 (replaces 4800041)
43	Cable harness	5007778
43	Cable harness	5007802
43	Cable harness	5007794
43	Cable harness	5007786
44	Switch	4883146
44	Switch	4883153
45	Switch	5450192
46	Button	4883112
47	Button	4883104
48	Relay	8533176
49	Child seat mounting	4935847
50	Screw	5026877
51	Screw	5033758
52	Clip	8412215
53	Release mechanism	5171921 (replaces 4761706)
53	Release mechanism	5171939 (replaces 4761714)
54	Cable	5171897 (replaces 4931580)
54	Cable	5171905 (replaces 4931598)
55	Frame	5002944
56	Cover	5171913 (replaces 4845574)
56	Cover	5171913
57	Screw	7922347
58	Knob	4845590
59	Screw	92153219 (replaces 7922354)
60	Heating pad	4883088
60	Heating pad	4883070
61	Heating pad	4883062
61	Heating pad	4883054
61	Heating pad	5081823
62	Cover	5314216 (replaces 5085485)
62	Cover	5314208 (replaces 5085493)
62	Cover	5314315 (replaces 5085444)
62	Cover	5314307 (replaces 5085451)
62	Cover	5314232 (replaces 5085501)
62	Cover	5314224 (replaces 5085519)
62	Cover	5314299 (replaces 5085469)
62	Cover	5314281 (replaces 5085477)
62	Cover	5314216
62	Cover	5314208
62	Cover	5314315
62	Cover	5314307
62	Cover	5314232
62	Cover	5314224
62	Cover	5314299
62	Cover	5314281
62	Cover	5314174 (replaces 4931887)
62	Cover	5314174
62	Cover	5314166 (replaces 4931895)
62	Cover	5314166
62	Cover	5314273 (replaces 4931804)
62	Cover	5314273
62	Cover	5314265 (replaces 4931812)
62	Cover	5314265
62	Cover	5314190 (replaces 4931903)
62	Cover	5314190
62	Cover	5314182 (replaces 4931911)
62	Cover	5314182
62	Cover	5314257 (replaces 4931820)
62	Cover	5314257
62	Cover	5314240 (replaces 4931838)
62	Cover	5314240
63	Rubber plug	5333190
64	Screw	92151992 (replaces 7972938)
65	Cover	4932356
65	Cover	4932364
66	Screw	4030359
67	Cover	4932331
67	Cover	4932349
67	Cover	4846234
67	Cover	4846259
67	Cover	5085535
67	Cover	5085543
69	Sign	4931101
70	Shaft	5332770
71	Protective pipe	5332762
75	Arm rest	5026372
75	Arm rest	5026380
76	Screw	92150102 (replaces 7972946)
77	Cover	4761664
77	Cover	4761672
78	Cover	4761623
78	Cover	4761631
79	Screw	4685988
