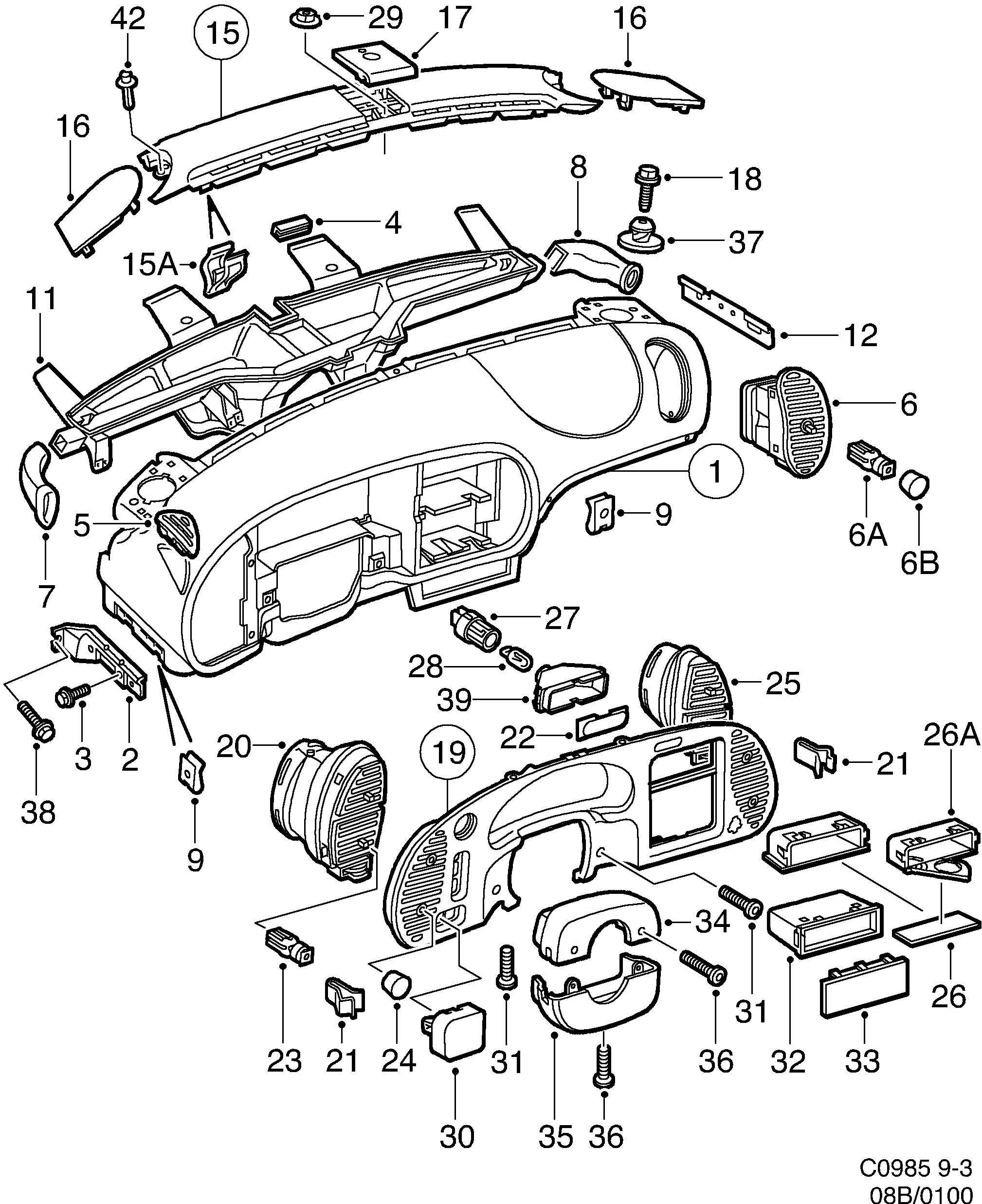

Group 8b Car body, internal, section 100
| Pos | Article | Part No. |
|---|---|---|
| 1 | Instrument panel | 4709523 |
| 1 | Instrument panel | 4709531 |
| 1 | Instrument panel | 4709549 |
| 1 | Instrument panel | 4709556 |
| 2 | Bracket | 4216610 |
| 2 | Bracket | 4216602 |
| 3 | Screw | 11900353 (replaces 7978091) |
| 4 | Tape | 4824066 |
| 5 | Defroster jet | 4848826 |
| 5 | Defroster jet | 4848859 |
| 6 | Air outlet | 4848834 |
| 6 | Air outlet | 4848867 |
| 6A | Control knob | 4383923 |
| 6B | Knob | 4383931 |
| 7 | Duct | 4364303 |
| 7 | Duct | 4222196 |
| 8 | Duct | 4364311 |
| 8 | Duct | 4222204 |
| 9 | Clip nut | 7968001 |
| 12 | Support plate | 4607057 |
| 15 | Cover | 5046545 (replaces 4744132) |
| 15 | Cover | 5046545 |
| 15A | Clamp | 92152185 (replaces 4423075) |
| 16 | Grille, loudspeaker | 5333281 (replaces 4888715) |
| 16 | Grille, loudspeaker | 5333281 |
| 16 | Grille, loudspeaker | 5333299 (replaces 4888723) |
| 16 | Grille, loudspeaker | 5333299 |
| 17 | Cover | 4744272 |
| 17 | Cover | 4744280 |
| 17 | Cover | 4744298 |
| 17 | Cover | 4744306 |
| 18 | Screw | 7978133 |
| 19 | Instrument plate | 5015375 |
| 19 | Instrument plate | 4709564 |
| 19 | Instrument plate | 400111993 (replaces 400110854) |
| 19 | Instrument plate | 400111993 (replaces 400112918) |
| 19 | Instrument plate | 400112439 |
| 19 | Instrument plate | 5124490 |
| 19 | Instrument plate | 5207006 |
| 19 | Instrument plate | 5207022 |
| 19 | Instrument plate | 5332838 (replaces 5121298) |
| 19 | Instrument plate | 5332838 |
| 19 | Instrument plate | 5015383 |
| 19 | Instrument plate | 400112009 (replaces 400110862) |
| 19 | Instrument plate | 400112009 (replaces 400112926) |
| 19 | Instrument plate | 5124508 |
| 19 | Instrument plate | 5332846 |
| 19 | Instrument plate | 5207014 |
| 19 | Instrument plate | 5207030 |
| 19 | Instrument plate | 5206503 |
| 19 | Instrument plate | 5206487 |
| 19 | Instrument plate | 5206529 |
| 20 | Air outlet | 7495708 |
| 20 | Air outlet | 7495195 |
| 21 | Clamp | 4470548 |
| 22 | Symbol washer | 9481219 |
| 25 | Air outlet | 7495716 |
| 25 | Air outlet | 7495187 |
| 26 | Cover | 5015292 |
| 26 | Cover | 5015300 |
| 26A | Can holder | 400126488 (replaces 4707303) |
| 26A | Can holder | 400127106 (replaces 5201561) |
| 26A | Can holder | 400127114 (replaces 5201579) |
| 27 | Bulb socket | 8509697 |
| 28 | Bulb | 93190474 (replaces 8500613) |
| 29 | Nut | 7985377 |
| 31 | Screw | 92153006 (replaces 7977002) |
| 32 | Storage tray | 4822235 |
| 33 | Cover plate | 4741641 |
| 34 | Steering column cover | 4888673 |
| 34 | Steering column cover | 4888699 |
| 35 | Steering column cover | 4888681 |
| 35 | Steering column cover | 4888707 |
| 36 | Screw | 7977283 |
| 37 | Friction washer | 12778949 (replaces 4609954) |
| 38 | Screw | 11900354 (replaces 7978109) |
| 39 | Lamp body | 4471074 |
| 42 | Expanding rivet | 4470639 |
